Class 2 Tinned Copper Conductor Armoured Electrical Cable BS 6883 6571TQ Type SW4 Cable

China Class 2 Tinned Copper Conductor Armoured Electrical Cable BS 6883 6571TQ Type SW4 Cable supplier

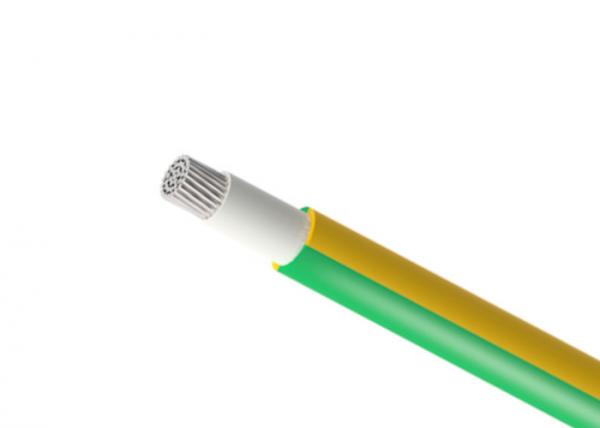

Class 2 Tinned Copper Conductor Armoured Electrical Cable BS 6883 6571TQ Type SW4 Cable image

Get a Quote Email to us

Brand Name :
CN CABLE

Model Number :
TINNED COPPER CABLE

Certification :
BS

Place of Origin :
Henan

MOQ :
1000meters

Packaging Details :
wooden drum

Conductor :
Class 2 tinned copper conductor

Insulation :
Halogen-free elastomer compound EPR

Sheath :
HOFR (Heat and Oil Resistant and Flame Retardant), halogenfree elastomer compound Type SW4 according to BS 7655

Class 2 Tinned Copper Conductor Armoured Electrical Cable BS 6883 6571TQ Type SW4 Cable

APPLICATION:

Unarmoured earth cable for fixed installations in all areas including accommodation and open deck in ships and offshore units.

CONSTRUCTION:
Conductor
Class 2 tinned copper conductor according to
BS EN 60228 (previously BS 6360)
Insulation
Halogen-free elastomer compound EPR Type GP4 according to
BS 7655
Sheath
HOFR (Heat and Oil Resistant and Flame Retardant), halogenfree elastomer compound Type SW4 according to BS 7655

CHARACTERISTICS:
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
Fixed: -40°C to +90°C
Flexed: -15°C to +90°C
Minimum Bending Radius
Up to 10mm2 – Fixed: 3 x overall diameter
16mm2 to 25mm2 – Fixed: 4 x overall diameter
Above 25mm2 – Fixed: 6 x overall diameter
Sheath Colour
Green/Yellow

DIMENSIONS

CORE
NO.		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL THICKNESS
OF INSULATION
mm		 NOMINAL THICKNESS OF
SHEATH
mm		 NOMINAL
OVERALL
DIAMETER
mm		 NOMINAL
WEIGHT
kg/km
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1		 1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500		 0.8
0.8
0.8
1
1
1
1
1.2
1.2
1.4
1.4
1.6
1.6
1.8
2
2.2
2.4
2.6
2.8		 1
1
1
1
1
1
1.1
1.2
1.2
1.3
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2
2.2		 4.8
5.1
5.6
6.5
7.1
8.1
9.5
11.4
12.6
14.3
16
18.6
20.3
22.4
24.9
28
30.9
35.3
39.3		 34
40
54
78
101
144
216
328
429
551
753
1049
1274
1568
1949
2530
3134
4258
5337

CONDUCTORS
Class 2 Stranded Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Circular Annealed Copper Conductor
Cu Metal-Coated Wires
ohms/km
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500		 7
7
7
7
7
7
7
7
7
19
19
19
37
37
37
37
61
61
61		 18.2
12.2
7.56
4.7
3.11
1.84
1.16
0.734
0.529
0.391
0.27
0.195
0.154
0.126
0.1
0.0762
0.0607
0.0475
0.0369

ELECTRICAL CHARACTERISTICS
Current Carrying Capacity

NOMINAL CROSS SECTIONAL AREA
mm²		 SINGLE CORE
Amps
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500		 18
23
30
40
52
72
96
127
157
196
242
293
339
389
444
522
601
719
827

DE-RATING FACTORS

AMBIENT TEMPERATURE 35ºC 40ºC 45ºC 50ºC 55ºC 60ºC 65ºC 70ºC 75ºC 80ºC
DE-RATING FACTOR 1.10 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
