Circular Stranded AAC Bare Conductor High Mechanical Strength With IEC 61089

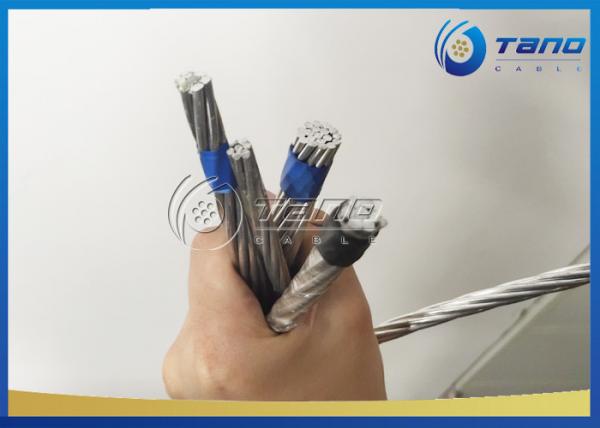

Circular Stranded AAC Bare Conductor High Mechanical Strength With IEC 61089 image
Brand Name :
TANO CABLE
Model Number :
AAC
Certification :
IEC ISO
Place of Origin :
China
MOQ :
2000M
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000KM per month
Delivery Time :
7-20days
Packaging Details :
By all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
material :
all aluminum wire
conductor type :
circular stranded
Packing :
Wooden drums
Standard :
IEC 61089
Jacket :
NO jacket
Product name :
All Aluminum Bare Conductor (AAC Conductor,AAAC conductor
Color :
Silvery White
Conductor :
Alulminum,AAC,Strands
Sample :
Free
BEST Selling AAC Bare Conductor High Mechanical Strength With IEC 61089
Description of AAC
All aluminum conductors are used in overhead electric power transmission and distribution lines with variety kinds of grade voltages.
Application of AAC
AAC conductors are widely used in power transmission lines with various voltage levels, for they have the advantages as high mechanical strength, good conductivity, corrosion resistance, unit volume light, easy to set up, high temperature resistance, simple structure, convenient installation and maintenance, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Standard of AAC
IEC 61089of AAC
| Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
| mm2 | No./mm | mm | kg/km | KN | ohm/km | |
| 10 | 10.0 | 7/1.35 | 4.05 | 27.4 | 2.0 | 2.8633 |
| 16 | 16.0 | 7/1.71 | 5.13 | 43.8 | 3.0 | 1.7896 |
| 25 | 25.0 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 |
| 40 | 40.0 | 7/2.70 | 8.10 | 109.4 | 6.8 | 0.7158 |
| 63 | 63.0 | 7/3.39 | 10.17 | 172.3 | 10.4 | 0.4545 |
| 100 | 100.0 | 19/2.59 | 12.95 | 274.8 | 17.0 | 0.2877 |
| 125 | 125.0 | 19/2.89 | 14.45 | 343.6 | 21.3 | 0.2302 |
| 160 | 160.0 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 |
| 200 | 200.0 | 19/3.66 | 18.30 | 549.7 | 32.0 | 0.1439 |
| 250 | 250.0 | 19/4.09 | 20.45 | 687.1 | 40.0 | 0.1151 |
| 315 | 315.0 | 37/3.29 | 23.03 | 867.9 | 52.0 | 0.0916 |
| 400 | 400.0 | 37/3.71 | 25.97 | 1102.0 | 64.0 | 0.0721 |
| 450 | 450.0 | 37/3.94 | 27.58 | 1239.8 | 72.0 | 0.0641 |
| 500 | 500.0 | 37/4.15 | 29.05 | 1377.6 | 80.0 | 0.0577 |
| 560 | 560.0 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 |
| 630 | 630.0 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 |
| 710 | 710.0 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 |
| 800 | 800.0 | 61/4.09 | 36.81 | 2207.4 | 128.0 | 0.0361 |
| 900 | 900.0 | 61/4.33 | 38.97 | 2483.3 | 144.0 | 0.0321 |
| 1000 | 1000.0 | 61/4.57 | 41.13 | 2759.2 | 160.0 | 0.0289 |
| 1120 | 1120.0 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 |
| 1250 | 1250.0 | 91/4.18 | 45.98 | 3452.6 | 200.0 | 0.0231 |
| 1400 | 1400.0 | 91/4.43 | 48.73 | 3866.9 | 224.0 | 0.0207 |
| 1500 | 1500.0 | 91/4.58 | 50.38 | 4143.1 | 240.0 | 0.0193 |

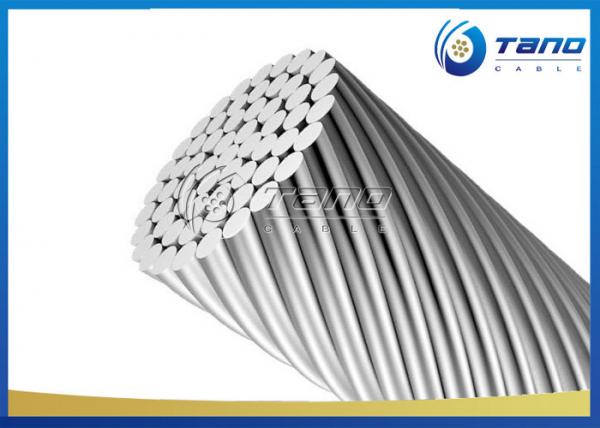

Construction:
Packaging:
1. standard seaworthy drum (wooded rum,wooded steel drum, steel drum)
2. drum size can be customized or Meeting container the Max.load size
3. drum overall diameter can be from 1 meter to 2.2 meters
4. under customer requirement with certain length packed in rolls wraped in plastic tape or Nylon plastc tape
FAQ:
1.Q:Are you a factory or trading company?
A: Tano Cable is a cable manufacturing base in Henan ,China, with more than 500 workers.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou, Henan,China.You can come directly by plane to Xinzheng airport ,then we can arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if checked available,Freight Charge normally will be paid by buyer.
4.Q:How does your factory do regarding quality control?
A: Our products have to go through SGS and BV inspection when they are processed. Before the goods leave the factory, it will undergo a series of strict inspection again, and then can be delivered smoothly.
Yifang cable group has ISO9001 and ISO14001 certificate and OHSAS18001 Certification, SGS certificate, CE certificate, and the IEC international certificate.
FACTORY:
We are China Circular Stranded AAC Bare Conductor High Mechanical Strength With IEC 61089 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
