Cat5e SFTP Cable Copper Network Cable , Shielded Cat5e Computer Network Cable For Indoor Use

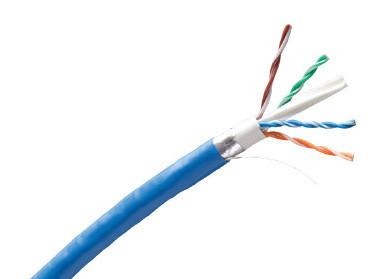

Cat5e SFTP Cable Copper Network Cable , Shielded Cat5e Computer Network Cable For Indoor Use image

Get a Quote Email to us

Brand Name :
Shenzhen Chengtiantai

Model Number :
Cat.5e SF/UTP Cable

Certification :
CE,UL& ROHS

Place of Origin :
Guangdong，China（Mainland）

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
50,000 m/day

Delivery Time :
7 / 15 working days

Packaging Details :
coil in box or reel

ANSI/ TIA Category :
5e

Pairs Quantity :
4

Cable Type :
SF/ UTP (shielded)

Conductor Material :
Solid Oxygen-free Copper

Conductor Gauge :
24 AWG (0.51 mm )

Jacket Material :
PVC

Ethernet LAN Cable, Cat. 5e, 4 Pair, SF/UTP

Cables with an overall braided screen are very effective at protecting EMI from entering or exiting the cable.

Applications:

For indoor use
For use in computer networking and internet service installations
For commercial and residential applications
Can be used in the place of CMR, CMG, CM and CMX cable
CAT.5e is also used to carry other signals such as telephony and video.

Standards / references:

International:

– ANSI/TIA 568-C.2

– UL 1666

– RoHS Compliant Directive 2011/65/EU

– UL 444

– ISO/IEC 11801 Ed. 2.0 (Class D)

National:

– YD/T1019-2001

Construction

Inner conductor Ø:

Conductor material:

Core insulation:

Color Code:

Separator:

Screen over stranding element:

Screen 2 over stranding:

Outer sheath material:

Outer diameter:

24 AWG(0.51 mm)

Solid Oxygen-free copper

HDPE

Pair 1: Blue-White/Blue

Pair 2: Orange-White/Orange

Pair 3: Green-White/Green

Pair 4: Brown-White/Brown

–

Aluminium Foil

tinned copper braid

PVC

6.8 mm

Dimensions

Length:

Cable weight:

Wire size:

Overall diameter of insulation:

Overall outside diameter:

305 m/1000 ft

14.48 kg

24 AWG (Ø 0.51 mm)

1.02 mm

6.8 mm

Electrical characteristics

ANSI/TIA Category

Characteristic Impedance (Frequency: 1-200 MHz)

DC Resistance Unbalance, maximum

DC Resistance , maximum at 20˚C

Propagation delay at100 MHz (ns/100m)

Delay Skew

Mutual Capacitance

Nominal Velocity of Propagation (NVP)

Coupling attenuation at 30˚C

Operating Frequency, maximum

100 ± 15 ohms

5 %

9.38 ohms/100 m

<536

≤45 ns

5.6 nF/100 m @ 1 kHz

69%

45MHz(dB)

100 MHz

Mechanical Properties

Maximum operating temperature:

Operating Temperature Range:

Installation temperature:

Minimum bending radius:

Maximum pulling force

70˚C

-20˚C to 60˚C

0˚C to 60˚C

4 x cable diameter

100 N

Nominal Transmission characteristics(at 20℃)

Frequency	Attenuation (Max)	PS NEXT (Min)	NEXT (Min)	PS ELFEXT (Min)	ELFEXT (Min)	TCL (Min)	EL TCL (Min)	RL (Min)
MHz	dB	dB	dB	dB/100m	dB/100m	dB	dB	dB
4	4.1	53.3	56.3	49	52	44	23	23
8	5.8	48.8	51.8	42.9	45.9	41	16.9	24.5
10	6.5	47.3	50.3	41	44	40	15	25
16	8.2	44.2	47.2	36.9	39.9	38	10.9	25
20	9.3	42.8	45.8	35	38	37	9	25
25	10.4	41.3	44.3	33	36	36	7	24.3
31.25	11.7	39.9	42.9	31.1	34.1	35.1	/	23.6
62.5	17	35.4	38.4	25.1	28.1	32	/	21.5
100	22	32.3	35.3	21	24	30	/	20.1


Mannufacturing plant	R&D Building	Bird's eye view of the plant

Manufacturing Process Of Lan cable


Core insulation	Wire twisting	wire backing twisting

Cabling	Jacking	Packing

CUSTOMER SERVICES:

We manufactures a comprehensive array of wires and cables to meet diverse market needs.

we supply a wide range of category 5e, category 6, category 6 A cable. If this all seems a litle too technical for you, then why not get in touch with us.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Need expert advice? Ask the manufacturer directly.

[email protected] | [email protected]

● Cable production started 1983
● 35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

● 100,000 m² Production area
● 350 Will-trained employees
● Exported more than 22 countries
● 2 Manufacturing plant

● 8 workshop
● 1 R&D Center

Head office: chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106
