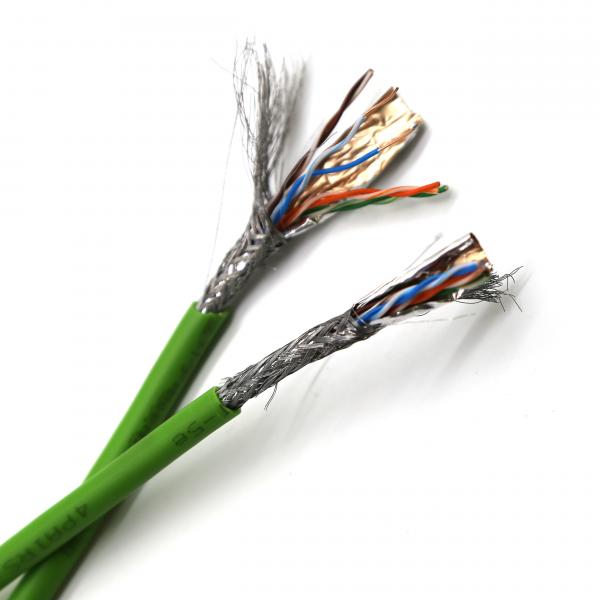

Cat 5e FTP SFTP Flexible Network Cable Fast Speed Colorful 4 Pairs Twisted
Cat 5e FTP SFTP Flexible Network Cable Fast Speed Colorful 4 Pairs Twisted image
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer’s request.
Conductor :
Bare Copper or CCA
Diameter :
0.35mm–0.52mm
Type :
Cat 5e network cable
Insulation Material :
Color-coded HDPE
Insulation diameter :
0.88-0.92mm
Shielded Material :
AL foil
Braided :
AM, TC
Drain Wire :
Tinned Copper
Jacket Material :
PE LSZH PVC
Jacket Outer Diameter :
5.0-5.5mm
Number of Conductor :
8 cores
Cable length :
305m/box
Certificate :
CE ROHS
Application :
computer, internet
Fast speed colorful 4 pairs twisted Cat 5e FTP SFTP networking cable
Production Description:
1. Production Parameters
|
Item (n) |
structure (mm) |
Insulation Thickness (mm) |
Approx overall dia. (mm) |
| FTP Cat 5e | 4×0.48 | 0.92 | 6.4 |
| UTP Cat 5e | 4×0.50 | 0.94 | 6.5 |
| UTP Cat 5e | 4×0.52 | 0.96 | 6.5 |
2. Core Identification
3. Production Specifications
| Conductor Material | BC / CCA |
| Shield |
UTP ( Unshielded Twisted Pair ) ; FTP ( Shielded Foil Twisted Pair ) ; SFTP ( Shielded Foil Twisted Pair ) |
| Meters | 305m / Customized |
| Jacket Color | Blue / Gray /Green/ Customized |
| Number of Conductor | 4 Pairs |
| Insulation Color | 1. Blue & White / Blue 2. Orange & White / Orange 3. Green & White / Green 4. Brown & White / Brown |
| Insulation Material | HDPE |
| Conductor Size | AWG24 |
| Conductor O.D | 0.33mm – 0.57mm ( Customized ) |
| Indoor/Outdoor | Single Jacket / Double Jacket |
| Marking On Jacket | On Your Request ( Print Your Brand ) |
| Operating Temperature | -40°C + 75°C |
| Insulation Resisitance | 10000 MΩ.km |
| Transmission Velocity | 65% |
4. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
5. Application
- High-Performance Data Communications Cable
- Suitable for 350MHz High-Speed Data Applications
- Designed for Indoor Installations.
- Flame Retardant Plenum Jacket .
6. Tabular data
Construction
| 1. Conductor material: | Solid bare copper 0.50mm | |
| 2. Insulation material: | HDPE (High density Polyethylene) | |
| 3.Shielding material: | AL, AM,TC | |
| 3. sheath material: | PVC | |
| 4. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 13.0 kg | 305 m per box | 42 x 42 x 24 |
Carton box |
7. Product Image
Product package
Product compare
Jinhuanyu product other products
Fluke Test Report
8. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
