Camouflaged Communication Pine Palm Tree Tower 0m – 80m Height

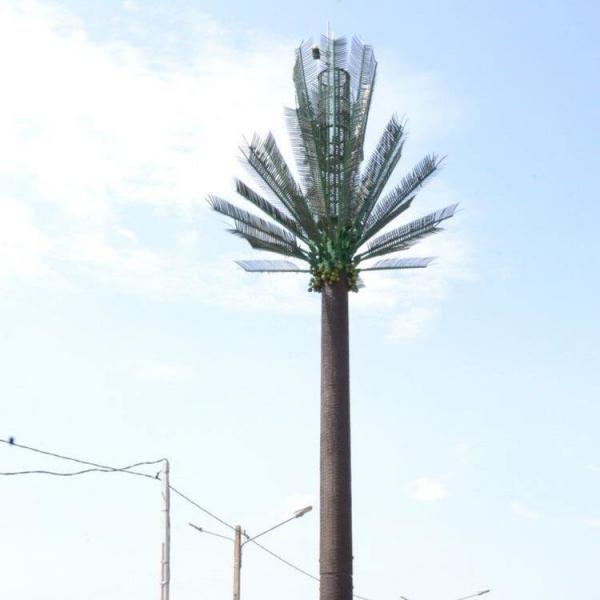

Camouflaged Communication Pine Palm Tree Tower 0m – 80m Height image
Brand Name :
Suntech Tower
Model Number :
Communication Pine Palm Tree Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the Newest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Name :
Communication Pine Palm Tree Tower
Surface Treatment :
Hot-dip galvanized
Wind Speed :
110~160km/h_3 second gust
Material :
Q235B & Q355B equivalent to A36/S235JR & Gr50/S355JR
Height :
0m~80m
Lifetime :
20-30 years
Telecom Pole Antenna Mast Camouflaged Communication Pine Palm Tree Tower.
We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
Detailed Product description as follows :
1. Circle /Polygonal
2. Slip joint/Flange Joint
3. Hot Dip Galvanization (ASTM123)
4. ISO9001 / ISO14001 certificate
5. Slip joints result in easy field assembly and erection
6. Painting Optional: according to customer's requirements
7. Design standard: TIA/EIA-222-G/F
8. Design software: Suntech TOWER
| Telecommunication Tower- Goods description and major parameters | ||
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. |
| 2. Wind speed as per requested by the clients. | ||
| 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. | ||
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR | ||
| 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR | ||
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type | 1. 3 Leg Self supported Angular Towers |
| 2. 3 Leg Self supported Tubular Towers | ||
| 3. 4 Leg Self supported Angular Towers | ||
| 4. 4 Leg Self supported Tubular Towers | ||
| 5. Guyed Mast | ||
| 6. Monopole Tower | ||
| 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree | ||
| 8. RDS Tower: Rapid Deploy Site/Tower | ||
| 9. Rooftop Towers | ||
| 10. Smart Poles | ||
| 10 | Warranty | 1. Tower structures: 10 years |
| 2. Camouflaged towers | ||
| a. Barks: 10 years | ||
| b. Branches and leaves: 3 years | ||
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
| 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light | ||
| 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. | ||
| 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. | ||
| 5. ACDB as per specified by clients | ||
| 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. | ||
| 7. Fall arrest system: GB and CE certificate fall arrest system. | ||
| 8. Optical Fiber Cable: as per specified by client | ||
| 9. Generator: as per specified by client | ||
| 10. Canopy and Generator Cage: as per specified by clients | ||
After-Sale Service
Technical Support
Technical support on pre-sales stage. Suntech has own survey and engineering company with more than 100
engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,
Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production
line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with
common use spare parts.
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant
and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.
The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and
avoid the replacement on the profiles to save the working time.
We are China Camouflaged Communication Pine Palm Tree Tower 0m – 80m Height manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 80m Palm Tree Tower, Communication Pine Palm Tree Tower, Telecommunication Steel Tower
