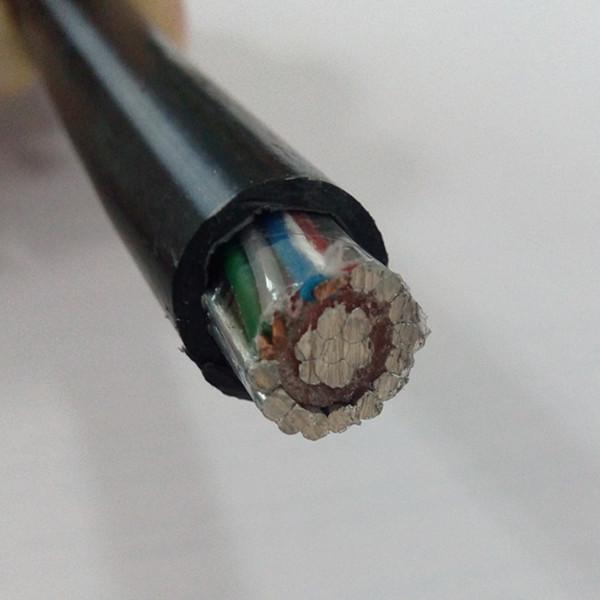

Cable Solidal Concentric Cable 16sqmm Single Core With 4 Insulated Copper Communication Core
Cable Solidal Concentric Cable 16sqmm Single Core With 4 Insulated Copper Communication Core image
Brand Name :
Yifang
Model Number :
AL/XLPE/AWA/PVC
Certification :
ISO CCC CE KEMA UL
Place of Origin :
China
MOQ :
10000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200kms/month
Delivery Time :
About 35 days
Packaging Details :
Sea worthy drums
Color :
Black
Core :
Single core
Amour material :
Aluminum wire+4 core insulated copper wire
Phase core :
Solid aluminum wire
Standard :
IEC 60502
Insulation color :
Red
Cable Solidal Aluminium 16sqmm Single core With 4 Insulated Copper Communication Core Overhead Concentric Service Cable
1 Applications
The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required
to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as
it is specified in the National Electrical Code.
This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 70 ºC and its
voltage of service for all the applications is 600 V.
Standards
IEC BS and so on
Voltage:
600/1000V
Concentric Cable Construction
Conductor
Aluminum conductors, IEC 60228, solid or stranded versions, conductor types
10-16 mm² round, solid conductors.
10-25 mm², stranded conductor.
35-240 mm², sector shaped conductor, stranded
Insulation
XLPE
Inner Sheath
PVC(Polyvinyl Chloride)
Concentric Conductor
Aluminum wires+4 core insulated copper wire
Sheath
PVC(Polyvinyl Chloride)
Minimum Bending Radius
Single Core: 15* overall diameter
Multi Core: 12* overall diameter
Concentric Split single phase service cable, 4mm to 35mm Plain annealed stranded copper phase conductor,XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors.XLPE insulated and plain annealed solid strand bare copper earth conductors,PVC outer sheath. Black.600/1000 voltsgrade to BS7870.
Choose a cable type
CCC Code | Conductor size (MM2) |
Stranding | Cores | Weight (KG/KM) |
Overall Diameter (MM) |
Gland Size |
Cleat | Trefoil Cleat |
---|---|---|---|---|---|---|---|---|
4SPLITCON | 4 | 7/0.85 | 1 | 206 | 9.6 | 20S | – | – |
6SPLITCON | 6 | 7/1.04 | 1 | 281 | 11.4 | 20 | – | – |
10SPLITCON | 10 | 7/1.35 | 1 | 394 | 12.7 | 20 | – | – |
16SPLITCON | 16 | 7/1.70 | 1 | 583 | 14.6 | 25 | – | – |
25SPLITCON | 25 | *7/2.14 | 1 | 843 | 18.7 | 32 | – | – |
35SPLITCON | 35 | 7/2.52 | 1 | 1300 | 23 | 40 | – | – |
2.Technical data
Electrical Information
Cable Size (mm2) | 10 | 16 |
Phase Conductor Resistance (Ohm/km) DC @ 20°C | 1,90 | 1,90 |
Phase Size (mm2) | 7,5 | 10 |
Neutral Size (mm3) | 10 | 16 |
Phase Core Impedance (Z) (Ohm/km) | 2,34 | 1,47 |
Current Rating* (A) | 50 | 70 |
Pilot Cores (No. x OD) Solid (mm) | 2 x 1,13 | 2 x 1,13 |
In air, with 30°C ambient with maximum conductor temperature 90°C |
Mechanical Information | ||
Cable Size (mm2) | 10 | 16 |
Phase Conductor (No. x OD)(mm) | 7 x 1,35 | 7 x 1,67 |
Nominal Insulation Thickness (mm) | 1,0 | 1,0 |
Neutral Conductor (No. x OD)(mm) | 7 x 1,33 | 7 x 1,76 |
Earth Conductor (No. x OD)(mm) | 3 x 1,78 | 3 x 2,20 |
Nominal Sheath Thickness (mm) | 1,6 | 1,6 |
Approximate Cable OD (mm) | 12,8 | 14,5 |
Approximate Cable Mass (kg/km) | 320 | 4 |
Conductor identification : Brown live/Blue neutral.
Should not be installed at temperatures below 0oc or above + 60oc
.Also available in Violet outer sheath in 6mm, 10mm, 16mm & 25mm.
