Cable Pusher Machine Cable Conveyer With Electric Engine For Laying Cable

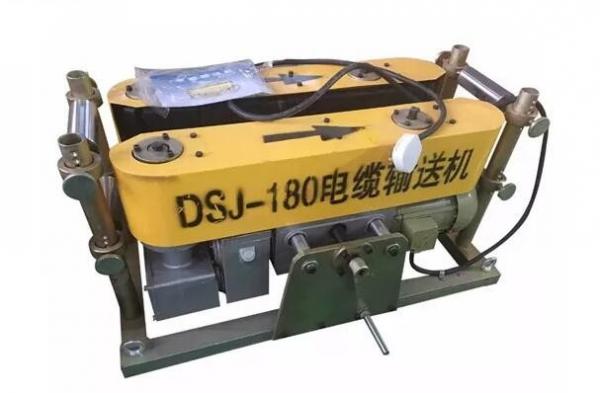

Cable Pusher Machine Cable Conveyer With Electric Engine For Laying Cable image
Brand Name :
Suntech
Model Number :
DSJ
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Get Latest Price
Payment Terms :
L/C, T/T
Supply Ability :
200pcs per month
Delivery Time :
7days after payment
Packaging Details :
Exported Wooden Cases
Power Source :
Electric Engine
Pulling Speed(m/min) :
7
Weight :
160kg
Rubber Sheet Thickness :
25mm
Cable Diameter :
30-180mm/30-200mm
Application :
Pulling Cable
Cable Pusher Machine Cable Conveyer With Electric Engine For Laying Cable
Cable conveyer is an electric machine for laying power cable (or communication cable).It can be used with cable tractor, hoist and other cable laying machine, which can save manpower and material greatly and reduce construction cost effectively.
Usages:
DSJ series product is an electric machine for laying power cables (or communication cables).
Features:
1. The two vertical shafts drive the transmission force and gravity respectively in two directions of the cable to protect the insulation of the cable.
2. The transmission force is transmitted through the compound caterpillar, and cater pillar adopts high strength wear-resisting rubber, which make the power force uniform and durable.
3. The machine is equipped with adjustable roller, which is very convenient.
4. The upper part of the machine can be fitted with a hinge wheel, which can be used for small power traction.
5. The machine has low mechanical noise, small temperature rise and easy maintenance.
6. Support products can be provided by user, like –DSJ series electrical control system (total control box, control box) and winding wheel etc.
Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 – 180 mm | Φ30 – 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
Application
We are China Cable Pusher Machine Cable Conveyer With Electric Engine For Laying Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
