BVV Electrical Cable Wire 7 stranded copper with double PVC Jacket 2 – 5 Cores x1.5

7 stranded copper with double PVC Insulation PVC Jacket BVV Electrical Cable Wire. 2 – 5 Cores x1.5, 2.5 to 6sqmm

Applications

Used as fixed wiring cable of rated voltage 300/500V.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:300/500 V, 450/750V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request

Descriptions

Light PVC Sheathed Cable for fixed wiring.
Code designation: 60227 IEC 10 (International), BVV 300/500V(China)

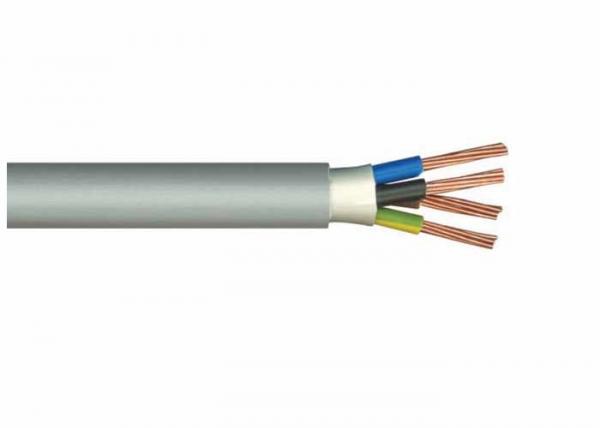

Constructions
① Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
Plain circular stranded copper conductor, comform to IEC 60228 class 2
② Insulation: PVC/C
③ Inner Covering
④ Overall Sheath: PVC type ST4
Note: Insulation color as per standards or at request

BVV 300/500V

BVV 450/750V

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
