Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line

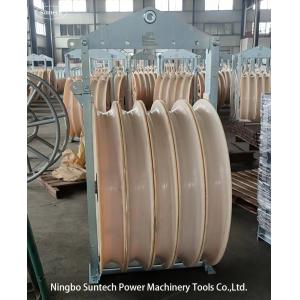

Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line image
Bundled Aluminum Five Conductor Pulley Blcok For 220KV Transmission Line
660MM Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing.
The sheave is made in aluminum alloy lined with neoprene or high Strength MC Nylon.
Note:
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be
supplied on request.The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
660MM Overhead Transmission Line Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10121 | SHD660 | 400-500 | 20 | 30 | Aluminum alloy |
| 10124 | SHDN660 | 400-500 | 20 | 24 | MC Nylon |
| 10122 | SHS660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | MC Nylon |
| 10123 | SHW660 | 400-500 | 60 | 150 | Aluminum Alloy lined with neoprene |
| 10126 | SHWLN660 | 400-500 | 60 | 120 | |
| 10128 | SHWQN660 | 400-500 | 60 | 110 | MC Nylon |
| 10129 | SHQZ660 | 400-500 | 80 | 260 | Central steel, conductor sheave nylon or aluminum alloy |
| 10130 | SHQ660A | 400-500 | 80 |
190 |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
We are China Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
