BS8519 Multicores Cu Conductor Mica Tape Wrapping For Lighting Contron System

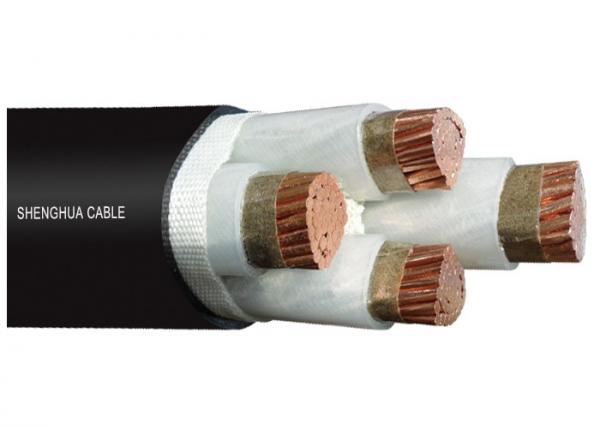

BS8519 Multicores Cu Conductor Mica Tape Wrapping For Lighting Contron System image
Brand Name :
SHANCABLE
Model Number :
WDZAN-YJY
Certification :
CE/KEMA/ISO/PCCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1000m
Price :
0.15-35.9 US$/M
Supply Ability :
10KM per Week
Delivery Time :
As per requirement
Packaging Details :
Customized
Rated Voltage :
600/1000V
Insulation :
XLPE or PVC
Sample :
0.2m free of charge
Number of cores :
1,2,3,4,5
Application :
Indoor and Outdoor
Sheath :
LSOH PO
Color :
Black, Orange
Multi Cores Cu conductor Mica Tape Wrapping XLPE Insulated Fire Resistant Cable BS8519
Rated Voltage: 0.6/1KV
Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2
Our fire performance cables are specifically designed for augmented fire resistance in applications including the delivery of power and auxiliary control in fire alarm systems, voice alarm systems, and emergency lighting systems including those applications designed to meet BS5266. These cables will form part of the requirements of BS8519 for the installation of fire-resistant power and control cable systems for life safety and fire-fighting applications.
Applications
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
| Product name | Fire resistant marine power cu xlpe cable | Code letter |
| Conductor | Stranded or tinned copper wire | – |
| Insulation | Cross-linked polyethylene (XLPE) | J |
| Filler and tape | Non-hygroscopic material | – |
| Inner sheath | Polyvinyl chloride (PVC) | V |
| Screen or Armor | Galvanized steel wire braided | 9 |
| Outer sheath | Polyvinyl chloride (PVC) | 2 |
| Fire resistant performance | Fire resistant | N |
| Flame retardant | Bunched flame retardant | S |
| Low smoke and halogen free | Smoke, halogen and toxicity | A |
| Rated voltage | 0.6/1kV | |
| Operating temperature | -15℃~+90℃ | |
| Certificate | ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS | |
| Test voltage | 3.5kV/5min | |
| Application | shipboard,offshore building, lighting and control system | |
| Number of cores*section | 7*1.5 | |
| Weight | 418kg/km | |
| Outer diameter | 16.3-18.7mm |
Technical data
Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
| N0.of cores×Nominal cross sectional area(mm²) | Caculated diameter | Caculated weight | |
| Nom(mm) | Max(mm) | CJV92NSA(kg/km) | |
| 2*1 | 11.7 | 13.7 | 180 |
| 2*1.5 | 12.1 | 14.2 | 198 |
| 2*2.5 | 13.3 | 15.6 | 245 |
| 2*4 | 14.3 | 16.8 | 295 |
| 2*6 | 15.9 | 18.3 | 374 |
| 2*10 | 18.2 | 20.9 | 521 |
| 2*16 | 20.4 | 23 | 690 |
| 2*25 | 22.6 | 25.4 | 941 |
| 2*35 | 25.4 | 28.6 | 1219 |
| 2*50 | 29 | 32.6 | 1599 |
| 2*70 | 32.4 | 36.5 | 2119 |
| 2*95 | 37.2 | 40.9 | 2859 |
| 2*120 | 42 | 46.2 | 3583 |
| 2*150 | 45.8 | 50.4 | 4289 |
| 2*185 | 50.4 | 55.4 | 5234 |
| 3*1 | 12.2 | 14.3 | 203 |
| 3*1.5 | 12.9 | 15.2 | 232 |
| 3*2.5 | 14 | 16.5 | 286 |
| 3*4 | 15 | 17.6 | 350 |
| 3*6 | 16.8 | 19.3 | 460 |
| 3*10 | 19.2 | 22.1 | 640 |
| 3*16 | 21.9 | 24.6 | 887 |
| 3*25 | 24.3 | 27.3 | 1232 |
| 3*35 | 27.3 | 30.7 | 1609 |
| 3*50 | 30.7 | 34.5 | 2085 |
| 3*70 | 35.3 | 38.8 | 2905 |
| 3*95 | 40.2 | 44.2 | 3876 |
| 3*120 | 44.5 | 49 | 4766 |
| 3*150 | 48.6 | 53.5 | 5737 |
| 3*185 | 53.6 | 59 | 7039 |
| Nom. Cross-section of conductor | Insulation Thickness | Sheath | Approx. | Approx | Max. D.C. Resistance of Conductor (20°C) | Test Voltage | Current Rating | |
| mm2 | mm | Thickness | O.D. | Weight | Ω/km | A.C | ||
| mm | mm | kg/km | kV/5min | In air(A) | In soil(A) | |||
| 4×1.5 | 0.7 | 1.8 | 14.4 | 241 | 12.1 | 3.5 | 20 | 27 |
| 4×2.5 | 0.7 | 1.8 | 15.4 | 295 | 7.41 | 3.5 | 26 | 35 |
| 4×4 | 0.7 | 1.8 | 16.5 | 369 | 4.61 | 3.5 | 34 | 45 |
| 4×6 | 0.7 | 1.8 | 17.8 | 463 | 3.08 | 3.5 | 43 | 57 |
| 4×10 | 0.7 | 1.8 | 20.9 | 667 | 1.83 | 3.5 | 60 | 77 |
| 4×16 | 0.7 | 1.8 | 23.4 | 930 | 1.15 | 3.5 | 83 | 105 |
| 4×25 | 0.9 | 1.8 | 27.1 | 1351 | 0.727 | 3.5 | 105 | 125 |
| 4×35 | 0.9 | 1.8 | 29.5 | 1772 | 0.524 | 3.5 | 125 | 155 |
| 4×50 | 1 | 1.9 | 38.4 | 2380 | 0.387 | 3.5 | 160 | 185 |
| 4×70 | 1.1 | 2 | 43.2 | 3302 | 0.268 | 3.5 | 200 | 225 |
| 4×95 | 1.1 | 2.2 | 47.3 | 4330 | 0.193 | 3.5 | 245 | 270 |
| 4×120 | 1.2 | 2.3 | 52.5 | 5374 | 0.153 | 3.5 | 285 | 310 |
| 4×150 | 1.4 | 2.5 | 58.3 | 6655 | 0.124 | 3.5 | 325 | 345 |
| 4×185 | 1.6 | 2.7 | 64.7 | 8246 | 0.0991 | 3.5 | 375 | 390 |
| 4×240 | 1.7 | 2.9 | 73.1 | 10569 | 0.0754 | 3.5 | 440 | 450 |
| 4×2.5+1×1.5 | 0.7 | 1.8 | 16.5 | 313 | 7.41 | 26 | 35 | |
| 4×4+1×2.5 | 0.7 | 1.8 | 17.7 | 424 | 4.61 | 34 | 45 | |
| 4×6+1×4 | 0.7 | 1.8 | 19.1 | 535 | 3.08 | 43 | 57 | |
| 4×10+1×6 | 0.7 | 1.8 | 22.1 | 760 | 1.83 | 60 | 77 | |
| 4×16+1×10 | 0.7 | 1.8 | 25.1 | 1071 | 1.15 | 83 | 105 | |
| 4×25+1×16 | 0.7 | 1.8 | 29 | 1556 | 0.727 | 105 | 125 | |
| 4×35+1×16 | 0.9 | 1.9 | 31.4 | 1976 | 0.524 | 125 | 155 | |
| 4×50+1×25 | 1 | 2.1 | 36 | 2689 | 0.387 | 160 | 185 | |
| 4×70+1×35 | 1.1 | 2.2 | 41.1 | 3719 | 0.268 | 200 | 225 | |
| 4×95+1×50 | 1.1 | 2.4 | 46.3 | 4903 | 0.193 | 245 | 270 | |
| 4×120+1×70 | 1.2 | 2.5 | 51 | 6165 | 0.153 | 285 | 310 | |
| 4×150+1×70 | 1.4 | 2.7 | 55.8 | 7431 | 0.124 | 325 | 345 | |
| 4×185+1×95 | 1.6 | 2.9 | 62.1 | 9192 | 0.0991 | 375 | 390 | |
| 4×240+1×120 | 1.7 | 3.1 | 68.8 | 11860 | 0.0754 | 440 | 450 | |
Operating characteristics
1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;
2. Installing temperature of cable should not be less than 0°C;
3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;
4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
We are China BS8519 Multicores Cu Conductor Mica Tape Wrapping For Lighting Contron System manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: BS8519 fire retardant cable, BS8519 flame retardant cable, Fire Resistant Cable, Mica Tape Wrapping fire retardant cable
