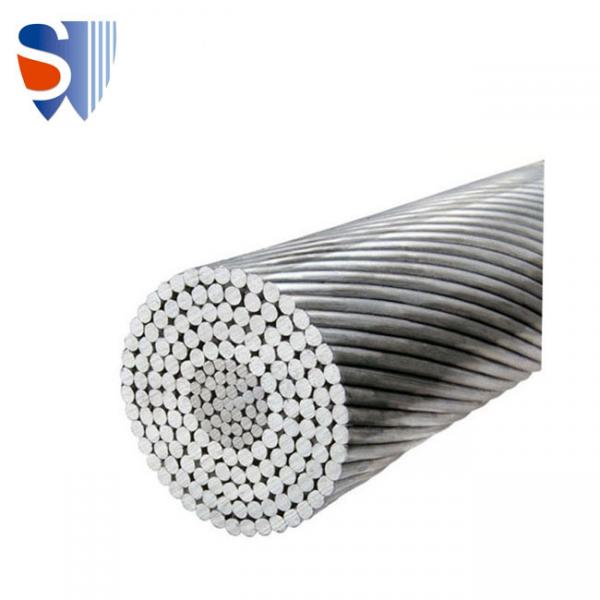

BS215 ACSR Tern Conductor

ACSR reinforced power cable Low Voltage Electrial Wires

Specifications

ACSR meets the standards of ASTM B232, BS215, CSA C49, DIN 48204, IEC 61089 , we can also produce according to your requirement.

The ACSR meets the standards of ASTM B232, BS215, CSA C49, DIN 48204, IEC 61089 , etc, we can also produce according to your requirements.

Application

With simple structure, the aluminium conductor steel reinforced is easy to set up and maintain, with low cost and high power transmission capacity. It is advantageous for the ACSR to be put up across a valley or river or under other various special geographic conditions. The advantages of ACSR are sound electrical conductivity, high mechanical strength, high tensile strength etc. It is used for power transmission lines with various voltage levels and plays an important role in the eletricity trasmission field.

Construction

ACSR is a concentric – lay -stranded conductor consisting of a single core wire or a stranded steel central core with one or more layers of 1350 H19 stranded aluminium wires . The steel core wires are protected from corrosion by galvanizing, aluminium-clad alloy or zinc -5% aluminium michemical alloy coating. Standard, high, extra, and ultra high strength steel is also available.
