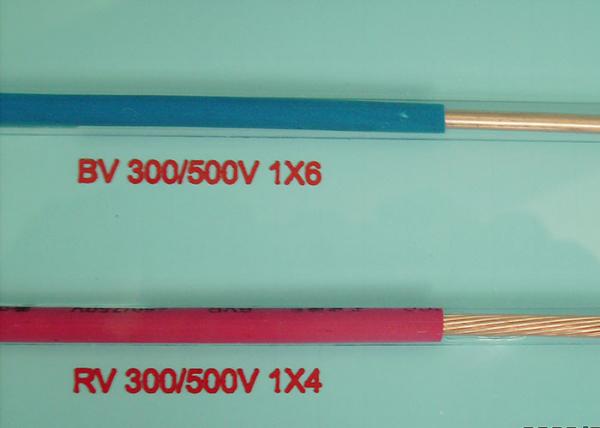

Blue Red Electric Building Wire Copper Conductor PVC Insulation 300/500V 300/300V

Blue Red Electric Building Wire Copper Conductor PVC Insulation 300/500V 300/300V image

Get a Quote Email to us

Brand Name :
YIFANG

Model Number :
KVV, ZR-KVV

Certification :
ISO9001, ISO18001, OHSAS

Place of Origin :
CHINA

MOQ :
500meters

Price :
USD0.1/m to USD 25/m

Supply Ability :
5000km per week

Delivery Time :
3-20 work days

Packaging Details :
Can be supplied in any length required.

Insulation :
PVC

Standard :
IEC

Conductor :
Copper

Rated Voltage :
450/750V 300/500V 300/300V

Usage :
Telecommunication

Sheath :
PVC

Blue Red Electric Building Wire Copper Conductor PVC Insulation 300/500V 300/300V

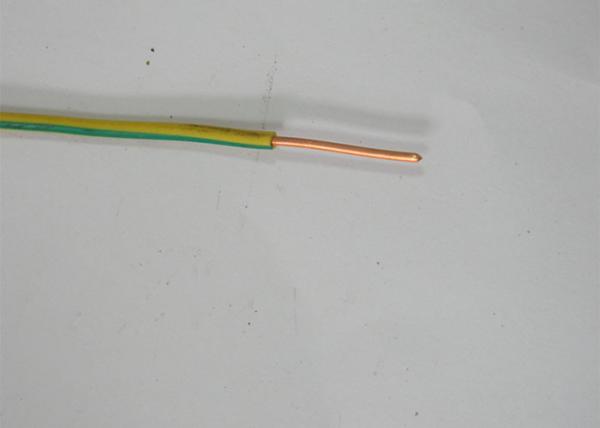

Copper Conductor PVC Insulation Yellow / Green building wire

1. Application:

Fixed wiring ,civil power ,mobile equipment

2. Construction

Conductor type:IEC 60228-2004 class 1 or class 2.

Nominal Cross-section area: 0.5～400mm2
PVC insulation

We can according to our client’s need and also provide technical data

3. Characteristic

Rated Voltage:

450/750V More-than 1.5mm2 single core conductor

300/500V Less-than 1.5mm2 single core and multicore conductor

300/300VLess-than 1.5mm2 multicore conductor

Test Voltage:

AC 1500V/5Min for 0.5～1mm2 multicore conductor

AC 2000V/5Min for 0.5～1mm2 single core and multicore conductor

AC 2500V/5Min Other.

Color of Insulation:

Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.

Notes

1. Ambient temperature for insulation shall not be lower than 0℃.

2. At nominal conditions, the conductor’s operating temperature is -15℃ to +70℃

3. Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.

4. Standard

IEC 60227-2007

5. Drawing

We are China Blue Red Electric Building Wire Copper Conductor PVC Insulation 300/500V 300/300V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Blue Red Electric Building Wire Copper Conductor PVC Insulation 300/500V 300/300V
