Bare Insulation Overhead Wire Conductor Strands Steel Core Reinforced AS 3607 Standard

Bare Insulation Overhead Wire Conductor Strands Steel Core Reinforced AS 3607 Standard image

Get a Quote Email to us

Brand Name :
TANO CABLE

Model Number :
AACSR

Certification :
ISO

Place of Origin :
CHINA

MOQ :
2000 Meters

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
200KM Per Month

Delivery Time :
15-30 days

Packaging Details :
By wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.

Standard :
AS 3607

Insulation :
Bare

Application :
Overhead

Conductor :
Aluminum Alloy Conductor Steel Reinforced

Packing :
Wooden drums

Color :
Grey

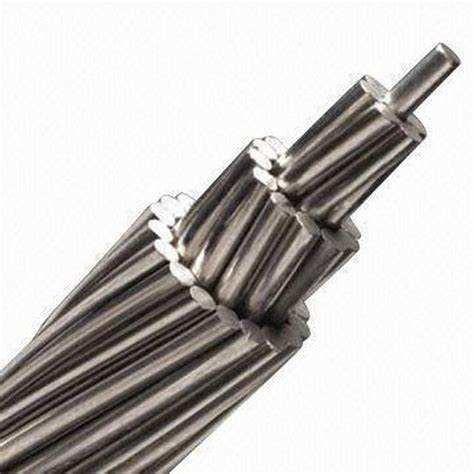

Aluminum Alloy Overhead Wire Conductor Strands Steel Core Reinforced AACSR conductor

Production Description of AACSR conductor
Conductor(AAAC) bear conductor meets or exceeds the following ASTM Specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.
B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors

Application of AACSR conductor
Used as bare overhead transmission cable and as primary and secondary distribution cable. AACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Standard of AACSR conductor
ASTM B711, IEC 61089, AS 3607, GB/T 1179

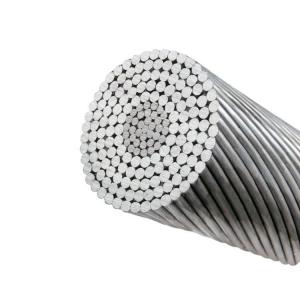

Construction of AACSR conductor

AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.
The proportions of aluminum alloy and steel can be varied to obtain the relation between currentcarrying capacity and mechanical strength best suited to each application.
Core wire for AACSR is available with Class A, B or C galvanizing; "aluminized" aluminum coated (AZ): or aluminum clad (AW).
Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Construction Parameters

Standard sizes to AS 3607

Product code	Strand/wire		Cross sectional area			Nominal O.D. mm	Approximate mass kg/km	Inductive reactance to 0.3m n/ km	Coefficient of linear expansion /°C / 10ˉ6
Product code	Alum No/mm	Steel No/mm	Alum mm2	Steel mm2	Total mm2	Nominal O.D. mm	Approximate mass kg/km	Inductive reactance to 0.3m n/ km	Coefficient of linear expansion /°C / 10ˉ6
APPLE 1120	6/3.00	1/3.00	42.4	7.1	49.5	9	171	0.292	19.3
BANANA 1120	6/3.75	1/3.75	66.3	11	77.3	11.3	268	0.278	19.3
CHERRY 1120	6/4.75	7/1.60	106	14.1	120	14.3	402	0.263	19.9
GRAPE 1120	30/2.50	7/2.50	147	34.4	182	17.5	677	0.235	19.4
LEMON 1120	30/3.00	7/3.00	212	49.5	262	21	973	0.224	19.4
LYCHEE 1120	30/3.25	7/3.25	249	58.1	307	22.8	1140	0.219	19.4
LIME 1120	30/3.50	7/3.50	289	67.3	356	24.5	1320	0.214	19.4
MANGO 1120	54/3.00	7/3.00	382	49.5	431	27	1440	0.209	20.6
ORANGE 1120	54/3.25	7/3.25	448	58.1	506	29.3	1690	0.204	20.6
OLIVE 1120	54/3.50	7/3.50	519	67.3	587	31.5	1960	0.199	20

Packing&Shipping of AACSR conductor
Details :
1) Packing length:100 to 1,000m reeled in carton drum or according to customers'requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to customer's request.

FAQ
1.what is our payment term?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.

We are China Bare Insulation Overhead Wire Conductor Strands Steel Core Reinforced AS 3607 Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Bare Insulation Overhead Wire Conductor Strands Steel Core Reinforced AS 3607 Standard

Aluminum Alloy Overhead Wire Conductor Strands Steel Core Reinforced AACSR conductor
