Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY

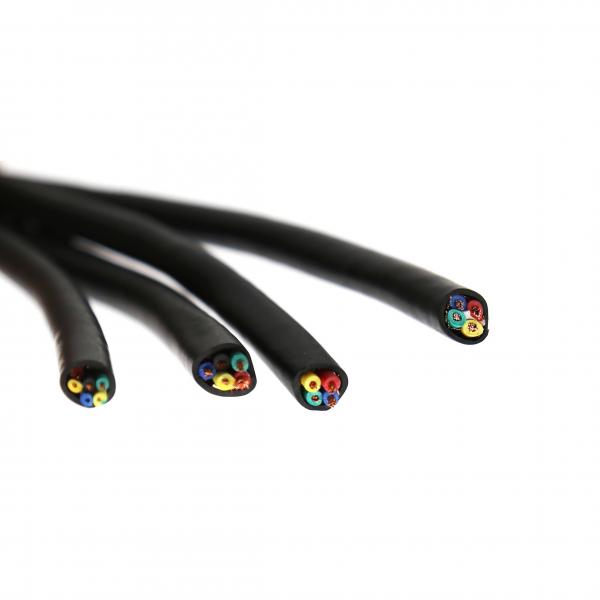

Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY image
Brand Name :
JHY CABLE
Model Number :
RVVP cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
5~7 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Conductor :
Stranded pure copper
Size :
4 cores, 1.5mm, 2.5mm
Insulation :
PVC material
Color :
red, blue,green or others
Sheath :
PVC material
Shield :
AL ,TC/AM braiding
Usage :
mechanical equipment,connector.ect
Shape :
round
Bare copper wire braiding 4 cores 0.5mm 1.5mm 2.5mm RVVP flexible cables YSLY-CY
Production Description:
1. Constructure
| Product name | 300V RVVP shielded flexible cable | |
| Rated voltage | 300/300V; 300/500V | |
| Constructions | Conductor | flexible stranded copper wire |
| Insulation | PVC | |
| Shield | AL foil + Tinned copper wire braiding or other braiding | |
| Sheath | PVC | |
| Cores | 2 to 10 cores | |
| Application | These screened cables are used inside as power or control cables for installations and connections on machine tools or static or dynamic apparatus | |
| Max. Operating Temperature | 70℃, can be 90℃, 105℃ as per requirement. | |
2. Product Specifications
|
Nominal cross-section (mm2) |
Insulation thickness (mm) |
Reference overall diameter (mm) |
Conductor resistance at 20℃ (Ω/km) |
Minimum insulation resistance at 70 ℃ (MΩ·km) |
Reference weight (kg/km) |
| 3×0.5 | 0.6 | 6.0 | 39.0 | 0.012 | 58.3 |
| 3×0.75 | 0.6 | 7.3 | 26.0 | 0.010 | 76.9 |
| 3×1.0 | 0.6 | 8.1 | 19.5 | 0.010 | 87.6 |
| 3×1.5 | 0.7 | 9.1 | 13.3 | 0.009 | 117.6 |
| 3×2.5 | 0.8 | 9.8 | 7.98 | 0.008 | 169.1 |
| 2×4 | 0.8 | 12.7 | 4.95 | 0.007 | 247.7 |
| 2×6 | 0.8 | 14.3 | 3.30 | 0.006 | 318.7 |
3. Application
suitable for the connection of household appliances, small power tools, instrumentation and power lighting devices with AC voltages of 450/750V and below
4. Product Image
Product Advantage
Product Package
5. Product standard
JB/T 8734.5, IEC 60227,BS 6500,BS EN 50525,VDE 0281
6. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
7. Company information
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China Bare Copper Wire RVVP Flexible Electrical Cable Braiding 4 Cores 0.5mm 1.5mm 2.5mm YSLY-CY manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
