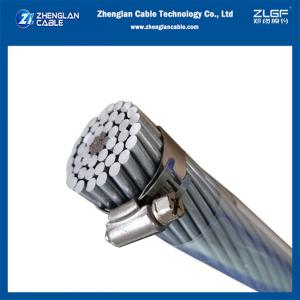

Bare Caa Aluminum Cable Acsr Conductor Steel Reinforced Swan Astm232 image

Get a Quote Email to us

BARE CAA ALUMINUM CABLE ACSR BARE ALUMINUM CONDUCTOR STEEL REINFORCED SWAN ASTM232

Application:

BARE CAA ALUMINUM CABLE ACSR BARE ALUMINUM CONDUCTOR STEEL REINFORCED SWAN ASTM232 ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Electrical properties:

density@20ºC Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
resistivity@20°C Aluminium: Should not exceed 0.028264

linear Expansivity

Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)

Service conditions:

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 – 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

BARE CAA ALUMINUM CABLE ACSR BARE ALUMINUM CONDUCTOR STEEL REINFORCED SWAN ASTM232 technical info:

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

BARE CAA ALUMINUM CABLE ACSR BARE ALUMINUM CONDUCTOR STEEL REINFORCED SWAN ASTM232 CONSTRUCTION PARAMETERS

Code Word Stranding Stranding Nominal Overall Diameter Mass Rated Strength
Aluminium Wires Steel Wires
Number Diameter Number Diameter
mm mm mm kg/Km kN
Raven 6/1 6 3.37 1 3.37 10.11 216.08 19.48
Minorca 12/7 12 2.44 7 2.44 12.22 411.18 50.26
Quail 6/1 6 3.78 1 3.78 11.35 272.04 23.58
Leghorn 12/7 12 2.69 7 2.69 13.46 499.28 60.5
Guinea 12/7 12 2.92 1 2.92 14.63 589.76 71.17
Pigeon 6/1 6 4.25 1 4.25 12.75 343.02 29.45
Dotterel 12/7 12 3.08 7 3.08 15.42 656.13 76.95
Dorking 12/7 12 3.2 7 3.2 16.03 707.92 83.18
Brahma 16/19 16 2.86 19 2.48 18.14 1003.91 126.33
Cochin 12/7 12 3.37 7 3.37 16.87 783.96 92.08
Penguin 6/1 6 4.77 1 4.77 14.3 432.76 37.14
Partidge 26/7 26 2.57 7 2 16.31 546.01 50.26
Waxwing 18/1 18 3.09 1 3.09 15.47 430.23 30.69
Ostrich 26/7 26 2.73 7 2.12 17.27 613.42 56.49
Oriole 30/7 30 2.69 1 2.69 18.82 783.37 76.95
Linnet 26/7 26 2.89 7 2.25 18.29 687.53 62.72
Widgeon 18/1 18 3.47 1 3.47 17.37 542.88 38.7
Lark 30/7 30 2.92 7 2.92 20.47 925.34 90.3
Ibis 26/7 26 3.14 7 2.44 19.89 812.54 72.51

BARE CAA ALUMINUM CABLE ACSR BARE ALUMINUM CONDUCTOR STEEL REINFORCED SWAN ASTM232 pictures:

Why choose us

  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided

We are China Bare Caa Aluminum Cable Acsr Conductor Steel Reinforced Swan Astm232 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
