Bare Aluminum Conductor Transmission Line ACSR Duck Conductor 16~1250mm IEC61089

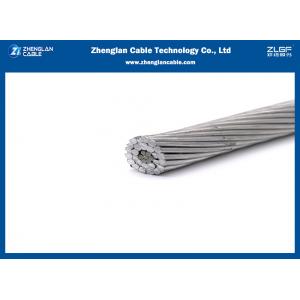

Bare Aluminum Conductor Transmission Line ACSR Duck Conductor 16~1250mm IEC61089 image
Bare Aluminum Conductor Transmission line ACSR duck conductor Based on Standard 16~1250mm IEC61089
ACSR Conductor APPLICATION
ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
Strands
When selecting stranded wire, it is important to specify the number of strands which make up the conductor. Wires with a high amount of strands are more flexible than those with a lesser amount. Conductor wire typically has at least 7 strands: one in the middle with 6 surrounding strands. More flexible wires commonly have 19, 37, or 49 strands. Very large wires, or those manufactured for very flexible applications, may have 70 or more strands.
Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
ACSR Conductor CONSTRUCTION
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.
By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.
ACSR Conductor ELECTRICAL PROPERTIES
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm | |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
|
linear Expansivity |
Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C – 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 – 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
ACSR Conductor TECHNICAL DATA
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
bare ACSR conductor Skunk (AL-12/2.59mm, St-7/2.59mm) EN50182 technical data sheet
| BRITISH STANDARD EN 50182: 2001 | |||||||||||||
| Code | Old Code | Area | No. of Wires | Wire Diameter | Diameter | Mass per Unit | Rated Strength | DC Resistance | |||||
| AL | Steel | Total | AL | Steel | AL | Steel | Core | Cond. | Length | ||||
| mm2 | 2 mm | 2 mm | mm | mm | mm | mm | kg/km | kN | Q/km | ||||
| 11-AL1/2-ST1A | MOLE | 10.6 | 1.77 | 12.4 | 6 | 1 | 1.5 | 1.5 | 1.5 | 4.5 | 42.8 | 4.14 | 2.7027 |
| 21-AL1/3-ST1A | SQUIRREL | 21 | 3.5 | 24.5 | 6 | 1 | 2.11 | 2.11 | 2.11 | 6.33 | 84.7 | 7.87 | 1.3659 |
| 26-AL1/4-ST1A | GOPHER | 26.2 | 4.37 | 30.6 | 6 | 1 | 2.36 | 2.36 | 2.36 | 7.08 | 106 | 9.58 | 1.0919 |
| 32-AL1 巧-ST1A | WEASEL | 31.6 | 5.27 | 36.9 | 6 | 1 | 2.59 | 2.59 | 2.59 | 7.77 | 127.6 | 11.38 | 0.9065 |
| 37-AL1/6-ST1A | FOX | 36.7 | 6.11 | 42.8 | 6 | 1 | 2.79 | 2.79 | 2.79 | 8.37 | 148.1 | 13.21 | 0.7812 |
| 42-AL1/7-ST1A | FERRET | 42.4 | 7.07 | 49.5 | 6 | 1 | 3 | 3 | 3 | 9 | 171.2 | 15.27 | 0.6757 |
| 53-AL1/9-ST1A | RABBIT | 52.9 | 8.81 | 61.7 | 6 | 1 | 3.35 | 3.35 | 3.35 | 10.1 | 213.5 | 18.42 | 0.5419 |
| 63-AL1/11-ST1A | MINK | 63.1 | 10.5 | 73.6 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11 | 254.9 | 21.67 | 0.454 |
| 63-AL1/37-ST1A | SKUNK | 63.2 | 36.9 | 100.1 | 12 | 7 | 2.59 | 2.59 | 7.77 | 13 | 463 | 52.79 | 0.4568 |
| 75-AL1/13-ST1A | BEAVER | 75 | 12.5 | 87.5 | 6 | 1 | 3.99 | 3.99 | 3.99 | 12 | 302.9 | 25.76 | 0.382 |
| 73-AL1/43-ST1A | HORSE | 73.4 | 42.8 | 116.2 | 12 | 7 | 2.79 | 2.79 | 8.37 | 14 | 537.3 | 61.26 | 0.3936 |
| 79-AL1/13-ST1A | RACOON | 78.8 | 13.1 | 92 | 6 | 1 | 4.09 | 4.09 | 4.09 | 12.3 | 318.3 | 27.06 | 0.3635 |
| 84-AL1/14-ST1A | OTTER | 83.9 | 14 | 97.9 | 6 | 1 | 4.22 | 4.22 | 4.22 | 12.7 | 338.8 | 28.81 | 0.3415 |
| 95-AL1/16-ST1A | CAT | 95.4 | 15.9 | 111.3 | 6 | 1 | 4.5 | 4.5 | 4.5 | 13.5 | 385.3 | 32.76 | 0.3003 |
| 105-AL1/17-ST1A | HARE | 105 | 17.5 | 122.5 | 6 | 1 | 4.72 | 4.72 | 4.72 | 14.2 | 423.8 | 36.04 | 0.273 |
| 105-AL1/14-ST1A | DOG | 105 | 13.6 | 118.5 | 6 | 7 | 1.57 | 1.57 | 4.71 | 14.2 | 394 | 32.65 | 0.2733 |
| 132-AL1/20-ST1A | COYOTE | 131.7 | 20.1 | 151.8 | 26 | 7 | 1.91 | 1.91 | 5.73 | 15.9 | 520.7 | 45.86 | 0.2192 |
| 132-AL1/7-ST1A | COUGAR | 131.5 | 7.31 | 138.8 | 18 | 1 | 3.05 | 3.05 | 3.05 | 15.3 | 418.8 | 29.74 | 0.2188 |
| 131-AL1/31-ST1A | TIGER | 131.2 | 30.6 | 161.9 | 30 | 7 | 2.36 | 2.36 | 7.08 | 16.5 | 602.2 | 57.87 | 0.2202 |
| 158-AL1/37-ST1A | WOLF | 158.1 | 36.9 | 194.9 | 30 | 7 | 2.59 | 2.59 | 7.77 | 18.1 | 725.3 | 68.91 | 0.1829 |
| 159-AL1/9-ST1A | DINGO | 158.7 | 8.81 | 167.5 | 18 | 1 | 3.35 | 3.35 | 3.35 | 16.8 | 505.2 | 35.87 | 0.1814 |
| 183-AL1/43-ST1A | LYNX | 183.4 | 42.8 | 226.2 | 30 | 7 | 2.79 | 2.79 | 8.37 | 19.5 | 841.6 | 79.97 | 0.1576 |
| 184-AL1/10-ST1A | CARACAL | 184.2 | 10.2 | 194.5 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.1 | 586.7 | 40.74 | 0.1562 |
| 212-AL1/49-ST1A | PANTHER | 212.1 | 49.5 | 261.5 | 30 | 7 | 3 | 3 | 9 | 21 | 973.1 | 92.46 | 0.1363 |
| 211-AL1/12-ST1A | JAGUAR | 210.6 | 11.7 | 222.3 | 18 | 1 | 3.86 | 3.86 | 3.86 | 19.3 | 670.8 | 46.57 | 0.1366 |
| 238-AL1/56-ST1A | LION | 238.3 | 55.6 | 293.9 | 30 | 7 | 3.18 | 3.18 | 9.54 | 22.3 | 1093.4 | 100.47 | 0.1213 |
| 264-AL1/62-ST1A | BEAR | 264.4 | 61.7 | 326.1 | 30 | 7 | 3.35 | 3.35 | 10.1 | 23.5 | 1213.4 | 111.5 | 0.1093 |
| 324-AL1/76-STA | GOAT | 324.3 | 75.7 | 400 | 30 | 7 | 3.71 | 3.71 | 11.1 | 26 | 1488.2 | 135.13 | 0.0891 |
| 375-AL1/88-ST1A | SHEEP | 375.1 | 87.5 | 462.6 | 30 | 7 | 3.99 | 3.99 | 12 | 27.9 | 1721.3 | 156.3 | 0.0771 |
| 374-AL1/48-ST1A | ANTELOPE | 374.1 | 48.5 | 422.6 | 54 | 7 | 2.97 | 2.97 | 8.91 | 26.7 | 1413.8 | 118.88 | 0.0773 |
| 382-AL1/49-ST1A | BISON | 381.7 | 49.5 | 431.2 | 54 | 7 | 3 | 3 | 9 | 27 | 1442.5 | 121.3 | 0.0758 |
CONSTRUCTION PARAMETERS
• IEC 60189
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Breaking Load | Electrical Resistance @20° | Current Rating* | |||
| AL | STEEL | TOTAL | AL | STEEL | ||||||
| mm2 | mm2 | mm2 | No.xmm | No.xmm | mm | Kg/Km | KN | Ω/Km | A | |
| 16 | 16 | 2.67 | 18.7 | 6/1.84 | 1/1.84 | 5.52 | 64.6 | 6.08 | 1.7934 | 85 |
| 25 | 25 | 4.17 | 29.2 | 6/2.30 | 1/2.30 | 6.9 | 100.9 | 9.13 | 1.1478 | 112 |
| 40 | 40 | 6.67 | 46.7 | 6/2.91 | 1/2.91 | 8.73 | 161.5 | 14.4 | 0.7174 | 150 |
| 63 | 63 | 10.5 | 73.5 | 6/3.66 | 1/3.66 | 10.98 | 254.4 | 21.63 | 0.4555 | 198 |
| 100 | 100 | 16.7 | 117 | 6/4.61 | 1/4.61 | 13.83 | 403.8 | 34.33 | 0.2869 | 263 |
| 125 | 125 | 6.94 | 132 | 18/2.97 | 1/2.97 | 14.85 | 397.9 | 29.17 | 0.2304 | 299 |
| 125 | 125 | 20.4 | 145 | 26/2.47 | 7/1.92 | 15.64 | 503.9 | 45.69 | 0.231 | 302 |
| 160 | 160 | 8.89 | 169 | 18/3.36 | 1/3.36 | 16.8 | 509.3 | 36.18 | 0.18 | 347 |
| 160 | 160 | 26.1 | 186 | 26/2.80 | 7/2.18 | 17.74 | 644.9 | 57.69 | 0.1805 | 351 |
| 200 | 200 | 11.1 | 211 | 18/3.76 | 1/3.76 | 18.8 | 636.7 | 44.22 | 0.144 | 398 |
| 200 | 200 | 32.6 | 233 | 26/3.13 | 7/2.43 | 19.81 | 806.2 | 70.13 | 0.1444 | 402 |
| 250 | 250 | 24.6 | 275 | 22/3.80 | 7/2.11 | 21.53 | 880.6 | 68.72 | 0.1154 | 458 |
| 250 | 250 | 40.7 | 291 | 26/3.50 | 7/2.72 | 22.16 | 1007.7 | 87.67 | 0.1155 | 461 |
| 315 | 315 | 21.8 | 337 | 45/2.99 | 7/1.99 | 23.91 | 1039.6 | 79.03 | 0.0917 | 526 |
| 315 | 315 | 51.3 | 366 | 26/3.93 | 7/3.05 | 24.87 | 1269.7 | 106.83 | 0.0917 | 530 |
| 400 | 400 | 27.7 | 428 | 45/3.36 | 7/2.24 | 26.88 | 1320.1 | 98.36 | 0.0722 | 607 |
| 400 | 400 | 51.9 | 452 | 54/3.07 | 7/3.07 | 27.63 | 1510.3 | 123.04 | 0.0723 | 610 |
| 450 | 450 | 31.1 | 481 | 45/3.57 | 7/2.38 | 28.56 | 1485.2 | 107.47 | 0.0642 | 651 |
| 450 | 450 | 58.3 | 508 | 54/3.26 | 7/3.26 | 29.34 | 1699.1 | 138.42 | 0.0643 | 655 |
| 500 | 500 | 34.6 | 535 | 45/3.76 | 7/2.51 | 30.09 | 1650.2 | 119.41 | 0.0578 | 693 |
| 500 | 500 | 64.8 | 565 | 54/3.43 | 7/3.43 | 30.87 | 1887.9 | 153.8 | 0.0578 | 697 |
| 560 | 560 | 38.7 | 599 | 45/3.98 | 7/2.65 | 31.83 | 1848.2 | 133.74 | 0.0516 | 741 |
| 560* | 560 | 70.9 | 631 | 54/3.63 | 19/2.18 | 32.68 | 2103.4 | 172.59 | 0.0516 | 745 |
| 630 | 630 | 43.6 | 674 | 45/4.22 | 7/2.81 | 33.75 | 2079.2 | 150.45 | 0.0459 | 794 |
| 630* | 630 | 79.8 | 710 | 54/3.85 | 19/2.31 | 34.65 | 2366.3 | 191.77 | 0.0459 | 798 |
| 710 | 710 | 49.1 | 759 | 45/4.48 | 7/2.99 | 35.85 | 2343.2 | 169.56 | 0.0407 | 851 |
| 710* | 710 | 89.9 | 800 | 54/4.09 | 19/2.45 | 36.79 | 2666.8 | 216.12 | 0.0407 | 856 |
| 800* | 800 | 34.6 | 835 | 72/3.76 | 7/2.51 | 37.61 | 2480.2 | 167.41 | 0.0361 | 910 |
| 800* | 800 | 66.7 | 867 | 84/3.48 | 7/3.48 | 38.28 | 2732.7 | 205.33 | 0.0362 | 912 |
| 800* | 800 | 101 | 901 | 54/4.34 | 19/2.61 | 39.09 | 3004.9 | 243.52 | 0.0362 | 916 |
| 900* | 900 | 38.9 | 939 | 72/3.99 | 7/2.66 | 39.9 | 2790.2 | 188.33 | 0.0321 | 972 |
| 900* | 900 | 75 | 975 | 84/3.69 | 7/3.69 | 40.59 | 3074.2 | 226.5 | 0.0322 | 974 |
| 1000* | 1000 | 43.2 | 1043 | 72/4.21 | 7/2.80 | 42.08 | 3100.3 | 209.26 | 0.0289 | 1031 |
| 1120* | 1120 | 47.3 | 1167 | 72/4.45 | 19/1.78 | 44.5 | 3464.9 | 234.53 | 0.0258 | 1096 |
| 1120* | 1120 | 91.2 | 1211 | 84/4.12 | 19/2.47 | 45.31 | 3811.5 | 283.17 | 0.0258 | 1100 |
| 1250* | 1250 | 102 | 1352 | 84/4.35 | 19/2.61 | 47.85 | 4253.9 | 316.04 | 0.0232 | 1165 |
| 1250* | 1250 | 52.8 | 1303 | 72/4.70 | 19/1.88 | 47 | 3867.1 | 261.75 | 0.0231 | 1163 |
| 1120* | 1120 | 91.2 | 1211 | 84/4.12 | 19/2.47 | 45.31 | 3811.5 | 283.17 | 0.0258 | 1100 |
bare ACSR conductor Skunk (AL-12/2.59mm, St-7/2.59mm) EN50182 images
The reason you choose us:
We are profeesional cable supplier for more than 10 years.
Not only provide you good-quality products,but also service you well.
We have high work efficency.
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
We are China Bare Aluminum Conductor Transmission Line ACSR Duck Conductor 16~1250mm IEC61089 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
