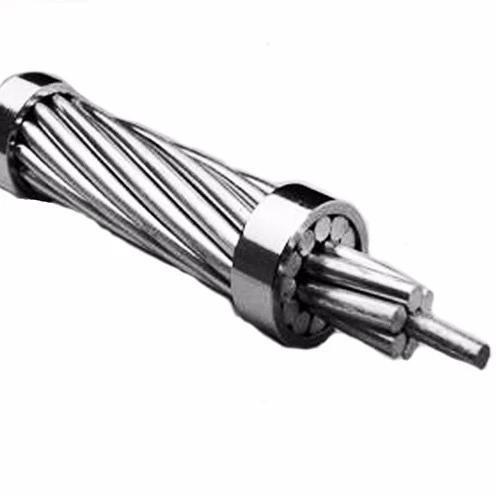

Bare ACSR Aluminum Conductor For Overhead Transmission Line Single Core
Bare ACSR Aluminum Conductor For Overhead Transmission Line Single Core image
Brand Name :
TANO CABLE
Model Number :
ACSR
Certification :
ISO CCC
Place of Origin :
Henan province, China
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000km per month
Delivery Time :
5-25 working days
Packaging Details :
by wooden or iron-wooden drum
core :
single
insulation :
without
description :
acsr conductor
application :
overhead transmission line
Name :
aluminium cable steel reinforced,Aluminum Conductor
Color :
Silver
Used bare overhead transmission cable and as primary and secondary distribution cable acsr offers optimal strength for line design without sacrificing ampacity .
Code Name | Nominal Area | No./Nominal diameter of wires | Approximate Overall Diameter | Sectional Area | Approximate Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Current Rating(*) | |||
Aluminum | Steel | Aluminum | Steel | Total | |||||||
mm2 | No./mm | No./mm | mm | mm2 | mm2 | mm2 | kg/km | KN | ohm/km | A | |
Gopher | 25 | 6/2.36 | 1/2.36 | 7.08 | 26.24 | 4.38 | 30.62 | 106 | 9.61 | 1.093 | 115 |
Weasel | 30 | 6/2.59 | 1/2.59 | 7.77 | 31.61 | 5.27 | 36.88 | 128 | 11.45 | 0.9077 | 129 |
Ferret | 40 | 6/3.00 | 1/3.00 | 9 | 42.41 | 7.07 | 49.48 | 172 | 15.2 | 0.6766 | 155 |
Rabbit | 50 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.82 | 61.7 | 214 | 18.35 | 0.5426 | 178 |
Horse | 70 | 12/2.79 | 7/2.79 | 13.95 | 73.37 | 42.83 | 116.2 | 538 | 61.2 | 0.3936 | 225 |
Dog | 100 | 6/4.72 | 7/1.57 | 14.15 | 105 | 13.5 | 118.5 | 394 | 32.7 | 0.2733 | 271 |
Dingo | 150 | 18/3.35 | 1/3.35 | 16.75 | 158.7 | 8.8 | 167.5 | 506 | 35.7 | 0.1815 | 346 |
Wolf | 150 | 30/2.59 | 7/2.59 | 18.13 | 158.1 | 36.8 | 194.9 | 726 | 69.2 | 0.1828 | 351 |
Lynex | 175 | 30/2.79 | 7/2.79 | 19.53 | 183.4 | 42.8 | 226.2 | 842 | 79.8 | 0.1576 | 384 |
Caracal | 175 | 18/3.61 | 1/3.61 | 18.05 | 184.3 | 10.2 | 194.5 | 587 | 41.1 | 0.1563 | 379 |
Panther | 200 | 30/3.00 | 7/3.00 | 21 | 212.1 | 49.4 | 261.5 | 974 | 92.25 | 0.1363 | 420 |
Jaguar | 200 | 18/3.86 | 1/3.86 | 19.3 | 210.6 | 11.7 | 222.3 | 671 | 46.55 | 0.1367 | 411 |
Zebra | 400 | 54/3.18 | 7/3.18 | 28.62 | 428.9 | 55.6 | 484.5 | 1621 | 131.9 | 0.0674 | 636 |
Material
Aluminum: 1350 series Aluminum,6201 Aluminum….
Steel: Class A Steel Wire
2. drum size can be customized or Meeting container the Max.load size
3. drum overall diameter can be from 1 meter to 2.2 meters
4. under customer requirement with certain length packed in rolls wraped in plastic tape or Nylon plastc tape
Qingdao,Shanghai,tianjin, ningbo, guangzhou, shenzhen

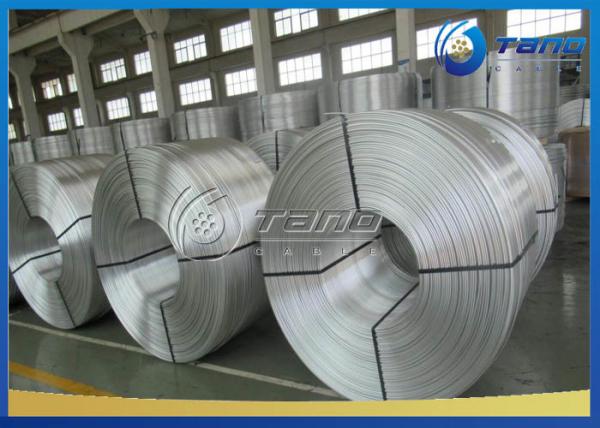

Factory:
We are China Bare ACSR Aluminum Conductor For Overhead Transmission Line Single Core manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: ACSR Aluminum Conductor, acsr conductor, Aluminum Conductor Steel Reinforced
