Bare AAC Cable , Hard Drawn Aluminum Conductor Cable Without Jacket

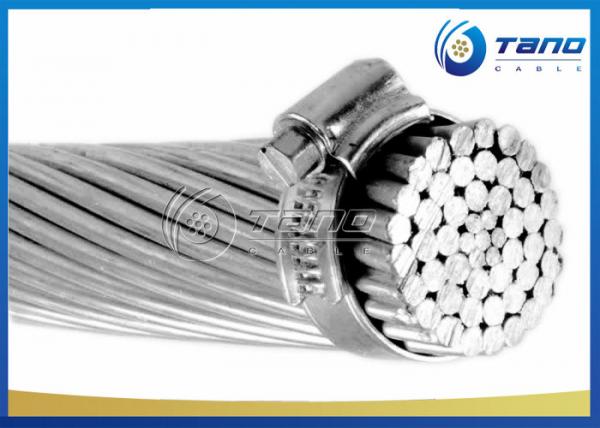

Bare AAC Cable , Hard Drawn Aluminum Conductor Cable Without Jacket image
Brand Name :
Tano Cable
Model Number :
AAC
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 KM Per month
Delivery Time :
5-20 working days
Packaging Details :
by coil, carton, plastic bag, all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Product name :
AAC cable
Conductor :
Hard drawn aluminum wire
Insulation :
bare
Standard :
ASTM B231
Rated voltage :
0.6/1KV
Jacket :
Bare
Tano Cable Overhead AAC Bare Conductor Electrical Cable Size Aluminum Conductor Cable
Applicationof AAC Wasp or Fly conductor
Used bare overhead transmission cable and as primary and secondary distribution cable acsr offers optimal strength for line design without sacrificing ampacity .
Standard
ASTM B231
Technical Specification about overhead bare AAC conductor
| Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
|
| AWG or MCM | mm2 | No./mm | mm | kg/km | KN | ohm/km | |
| Peachbell | 6 | 13.3 | 7/1.56 | 4.68 | 36.6 | 2.5 | 2.1477 |
| Rose | 4 | 21.1 | 7/1.96 | 5.88 | 58.2 | 3.9 | 1.3606 |
| Iris | 2 | 33.6 | 7/2.47 | 7.41 | 92.6 | 6.0 | 0.8567 |
| Pansy | 1 | 42.4 | 7/2.78 | 8.34 | 116.6 | 7.3 | 0.6763 |
| Poppy | 1/0.0 | 53.5 | 7/3.12 | 9.36 | 147.2 | 8.8 | 0.5369 |
| Aster | 2/0.0 | 67.4 | 7/3.50 | 10.50 | 185.7 | 11.1 | 0.4267 |
| Phlox | 3/0.0 | 85.0 | 7/3.93 | 11.79 | 233.9 | 13.5 | 0.3384 |
| Oxlip | 4/0.0 | 107.2 | 7/4.42 | 13.26 | 295.2 | 17.0 | 0.2675 |
| Valerian | 250.0 | 126.7 | 19/2.91 | 14.55 | 348.6 | 20.7 | 0.2274 |
| Sneezewort | 250.0 | 126.7 | 7/4.80 | 14.40 | 348.8 | 20.1 | 0.2269 |
| Laurel | 266.8 | 135.2 | 19/3.01 | 15.05 | 372.2 | 22.1 | 0.2125 |
| Daisy | 266.8 | 135.2 | 7/4.96 | 14.88 | 372.3 | 21.4 | 0.2125 |
| Peony | 300.0 | 152.0 | 19/3.19 | 15.95 | 418.3 | 24.3 | 0.1892 |
| Tulip | 336.4 | 170.5 | 19/3.38 | 16.90 | 469.5 | 27.3 | 0.1686 |
| Daffodil | 350.0 | 177.3 | 19/3.45 | 17.25 | 487.9 | 28.4 | 0.1618 |
| Canna | 397.5 | 201.4 | 19/3.67 | 18.35 | 554.9 | 31.6 | 0.1430 |
| Goldentuft | 450.0 | 228.0 | 19/3.91 | 19.55 | 627.6 | 35.0 | 0.1260 |
| Syringa | 477.0 | 241.7 | 37/2.88 | 20.16 | 664.8 | 38.6 | 0.1192 |
| Cosmos | 477.0 | 241.7 | 19/4.02 | 20.10 | 664.8 | 37.0 | 0.1192 |
| Hyacinth | 500.0 | 253.3 | 37/2.95 | 20.65 | 696.8 | 40.5 | 0.1136 |
| Zinnia | 500.0 | 253.3 | 19/4.12 | 20.60 | 697.1 | 38.9 | 0.1134 |
| Dahlia | 556.5 | 282.0 | 19/4.35 | 21.75 | 775.8 | 43.3 | 0.1018 |
| Mistletoe | 556.5 | 282.0 | 37/3.12 | 21.84 | 775.7 | 44.3 | 0.1016 |
| Meadowsweet | 600.0 | 304.0 | 37/3.23 | 22.61 | 836.3 | 47.5 | 0.0948 |
| Orchid | 636.0 | 322.3 | 37/3.33 | 23.31 | 886.9 | 50.4 | 0.0892 |
| Heuchera | 650.0 | 329.4 | 37/3.37 | 23.59 | 907.4 | 51.7 | 0.0871 |
| Flag | 700.0 | 354.7 | 61/2.72 | 24.48 | 975.8 | 57.1 | 0.0811 |
| Varbena | 700.0 | 354.7 | 37/3.49 | 24.43 | 975.7 | 55.4 | 0.0812 |
| Nasturtium | 715.5 | 362.6 | 61/2.75 | 24.75 | 998.5 | 58.4 | 0.0793 |
| Violet | 715.5 | 362.6 | 37/3.53 | 24.71 | 998.5 | 56.7 | 0.0794 |
| Cattail | 750.0 | 380.0 | 61/2.82 | 25.38 | 1046.0 | 60.3 | 0.0754 |
| Petunia | 750.0 | 380.0 | 37/3.62 | 25.34 | 1046.0 | 58.6 | 0.0755 |
| Lilac | 795.0 | 402.8 | 61/2.90 | 26.10 | 1110.0 | 63.8 | 0.0713 |
| Arbutus | 795.0 | 402.8 | 37/3.72 | 26.04 | 1109.0 | 61.8 | 0.0715 |
| Snapdragon | 900.0 | 456.0 | 61/3.09 | 27.81 | 1256.0 | 70.8 | 0.0628 |
| Cockscomb | 900.0 | 456.0 | 37/3.96 | 27.72 | 1256.0 | 68.4 | 0.0631 |
| Goldenrod | 954.0 | 483.4 | 61/3.18 | 28.62 | 1331.0 | 75.0 | 0.0593 |
| Magnolia | 954.0 | 483.4 | 37/4.08 | 28.56 | 1331.0 | 72.6 | 0.0594 |
| Camellia | 1000.0 | 506.7 | 61/3.25 | 29.25 | 1394.0 | 78.3 | 0.0568 |
| Hawkweed | 1000.0 | 506.7 | 37/4.18 | 29.26 | 1395.0 | 76.2 | 0.0566 |
| Larkspur | 1033.5 | 523.7 | 61/3.31 | 29.79 | 1442.0 | 81.3 | 0.0547 |
| Bluebell | 1033.5 | 523.7 | 37/4.25 | 29.75 | 1441.0 | 78.8 | 0.0547 |
| Marigold | 1113.0 | 564.0 | 61/3.43 | 30.87 | 1553.0 | 87.3 | 0.0510 |
| Hawthorn | 1192.5 | 604.2 | 61/3.55 | 31.95 | 1662.0 | 93.5 | 0.0476 |
| Narsissus | 1272.0 | 644.5 | 61/3.67 | 33.03 | 1774.0 | 98.1 | 0.0445 |
| Columbine | 1351.0 | 694.8 | 61/3.78 | 34.02 | 1884.0 | 104.0 | 0.0420 |
| Carnation | 1431.0 | 725.1 | 61/3.89 | 35.01 | 1997.0 | 108.0 | 0.0396 |
| Gladiolus | 1510.5 | 765.4 | 61/4.00 | 36.00 | 2108.0 | 114.0 | 0.0375 |
| Coreopsis | 1590.0 | 805.7 | 61/4.10 | 36.90 | 2216.0 | 120.0 | 0.0357 |
| Jassamine | 1750.0 | 886.7 | 61/4.30 | 38.70 | 2442.0 | 132.0 | 0.0324 |
| Cowslip | 2000.0 | 1013.0 | 91/3.77 | 41.47 | 2787.0 | 153.0 | 0.0286 |
| Sagebrush | 2250.0 | 1140.0 | 91/3.99 | 43.89 | 3166.0 | 167.0 | 0.0255 |
| Lupine | 2500.0 | 1267.0 | 91/4.21 | 46.31 | 3519.0 | 186.0 | 0.0229 |
| Bitterrot | 2750.0 | 1393.0 | 91/4.42 | 48.62 | 3872.0 | 205.0 | 0.0208 |
| Trillium | 3000.0 | 1520.0 | 127/3.90 | 50.70 | 4226.0 | 223.0 | 0.0193 |
| Bluebonnet | 3500.0 | 1773.0 | 127/4.22 | 54.86 | 4977.0 | 261.0 | 0.0165 |
FAQ
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
We are China Bare AAC Cable , Hard Drawn Aluminum Conductor Cable Without Jacket manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
