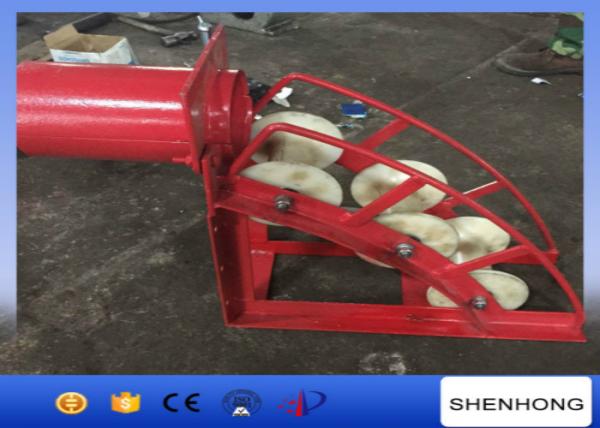

B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel
B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel image
Brand Name :
SHENHONG
Model Number :
SH150C
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Supply Ability :
1000pcs per month
Delivery Time :
10-15 days after payment
Packaging Details :
carton
Material :
nylon wheel
Type :
cable roller
Tube Diameter :
150mm
Weight(kg) :
21
Application :
pulling underground cables.
B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel
Application
B Series cable entrance protection roller with three nylon wheels is used for pulling underground cables.It has three rollers which are made of nylon.The curvature radius is 450mm.The roller can be placed in the tube orifice at arbitrary angle,lockable.
Technical Data
| Model | Tube diameter(mm) | Weight(kg) |
| SH80C | 80 | 17 |
| SH90C | 90 | 18 |
| SH100C | 100 | 20 |
| SH130C | 130 | 20.5 |
| SH150C | 150 | 21 |
| SH180C | 180 | 22 |
| SH200C | 200 | 23 |
We are China B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
