Aviation Light Telecommunication Steel Tower High Rooftop

 China Aviation Light Telecommunication Steel Tower High Rooftop supplier

Aviation Light Telecommunication Steel Tower High Rooftop image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Rooftop Steel Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
70000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after payment

Packaging Details :
Exported Containers

Product Name :
Rooftop Steel Tower

Material :
Steel Q345,Q235,Q420

Wind Speed :
110~160km/h_3 second gust

Application :
Construction Site

Surface Treatment :
Galvanised

Lifetime :
20-30 years

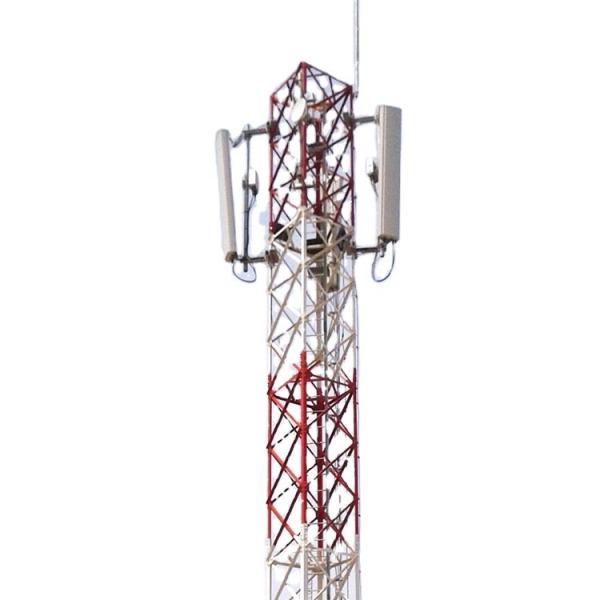

Telecommunication Aviation Light High Rooftop Steel Tower On Sale

Signal tower is a type of signal transmission tower, also called a signal transmission tower or a signal

tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe

three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),

lifting communication tower, and movable communication tower.

Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line and telecommunication towers in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.

Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers

5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles

10 Warranty

1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients

Quick Detail:

Self supporting tower usually is 3-leg or 4-leg tower, and its material is steel pipe or angle steel. As for the connection,

tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.

Features

1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and

other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,

ultrashort wave, wireless network signal transmission and transmission.

Fabrication Shop

Based on the Customer Drawing, we can fabricate all kind of good quality steel structure product with full of equipment: Welding; Punching; Pushing; Drilling; Rolling; Cutting; CNC; Auto Robot…machine and experienced worker

Hot dip galvanized Shop

Cooperate with Japan Company, we controled the Hot dipped galvanizing Technology with high capacity (200-300 MT/day) and really good quality in accordance with international standards: ASTM A123; JIS H8641

We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 80 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.

We are China Aviation Light Telecommunication Steel Tower High Rooftop manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
