Astm B232m Aluminium Conductor Steel Reinforced Acsr 6awg Pigeon 1/0

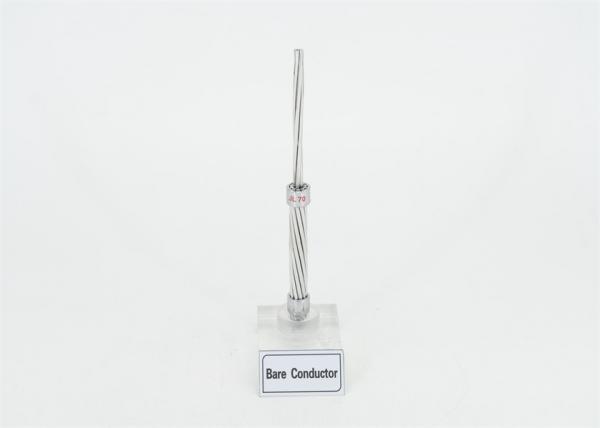

Astm B232m Aluminium Conductor Steel Reinforced Acsr 6awg Pigeon 1/0 image
Brand Name :
Sanwu
Model Number :
ASTM B232M
Certification :
CCC,ISO
Place of Origin :
LUOYANG,CHINA
MOQ :
1000m
Price :
Negociable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer’s request.
Product Name :
ACSR(GZ)
Material :
Aluminum conductor steel reinforced (GZ) Zinc-coated ACSR
Conductor :
Aluminum
Steel wire :
Galvanized
Size :
QUINCE,RAISIN,SUPER SULTANA,SULTANA,Almond, Apricot,APPPLE,,Banana, CHERRY,GRAPE, LEMON
Standard :
ASTM B232M
ASTM B232M ACSR Turkey 6AWG Pigeon 1/0 Aluminum conductor steel reinforced ACSR
SINCE 2016
1. APPLICATION
Aluminium conductor steel-reinforced cable (ACSR) is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purity aluminium, chosen for its good conductivity, low weight, low cost, resistance to corrosion and decent mechanical stress resistance. The centre strand is steel for additional strength to help support the weight of the conductor. Steel is of higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor.
2. STANDARDS
ASTM B232M
ACSR – Aluminium conductors steel reinforced
3. CONSTRUCTION
(1) Steel part: Zinc- coated steel wires, one wire or multi-wires concentric stranded
(2) Aluminium part: Hard drawn aluminium wires, concentric stranded
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
| ASTM-B 232/B 232M METRIC UNITS | ||||||||||
| Code Name | Size | Stranding | Section | Overall Diameter |
Conductor Weight |
Rated Strength |
||||
| No x Ømm | mm2 | mm | kg/km | |||||||
| AWG-MCM | Al. | Steel | Total | Al. | Total | Core | Total | Al. | kN | |
| TURKEY | 6 | 6X1,68 | 1×1,68 | 15,52 | 13,3 | 5,04 | 1,68 | 53,8 | 36,5 | 5,295 |
| SWAN | 4 | 6X2,12 | 1X2,12 | 24,71 | 21,18 | 6,36 | 2,12 | 85,4 | 58 | 8,28 |
| SWANATE | 4 | 7X1,96 | 1×2,61 | 26,47 | 21,12 | 6,53 | 2,61 | 99,7 | 58 | 10,5 |
| SPARROW | 2 | 6X2,67 | 1X2,67 | 39,2 | 33,6 | 8,01 | 2,67 | 135,9 | 92,3 | 12,68 |
| SPARATE | 2 | 7X2,47 | 1X3,30 | 42,09 | 33,54 | 5,24 | 3,3 | 158,8 | 92,3 | 6,2 |
| ROBIN | 1 | 6X3,00 | 1X3,00 | 49,48 | 42,41 | 9 | 3 | 171,4 | 116,4 | 15,8 |
| RAVEN | 1/0 | 6X3,37 | 1X3,37 | 62,44 | 53,52 | 10,11 | 3,37 | 216,1 | 146,7 | 19,49 |
| QUAIL | 2/0 | 6X3,78 | 1X3,78 | 78,55 | 67,33 | 11,34 | 3,78 | 272,5 | 185 | 23,63 |
| PIGEON | 3/0 | 6X4,25 | 1×4,25 | 99,31 | 85,12 | 12,75 | 4,25 | 343,5 | 233,2 | 29,46 |
| PENGUIN | 4/0 | 6X4,77 | 1X4,77 | 125,09 | 107,22 | 14,31 | 4,77 | 433,2 | 294,2 | 37,16 |
| WAXWING | 266,8 | 18X3,09 | 1X3,09 | 142,5 | 135 | 15,45 | 3,09 | 431,6 | 372,9 | 30,62 |
| PARTRIDGE | 266,8 | 26X2,57 | 7X2,00 | 156,9 | 134,9 | 16,28 | 6 | 546,1 | 374,3 | 50,28 |
| ORSTRICH | 300 | 26X2,73 | 7X2,12 | 176,9 | 152,2 | 17,28 | 6,36 | 614,6 | 421,3 | 56,52 |
| MERLIN | 336,4 | 18X3,47 | 1X3,47 | 179,7 | 170,2 | 17,35 | 3,47 | 543,2 | 469,7 | 38,36 |
| LINNET | 336,4 | 26X2,89 | 7X2,25 | 198,4 | 170,6 | 18,31 | 6,75 | 689 | 472,2 | 62,75 |
| ORIOLE | 336,4 | 30X2,69 | 7X2,69 | 210,3 | 170,5 | 18,83 | 8,07 | 784,3 | 473,2 | 76,98 |
| CHICKADEE | 397,5 | 18X3,77 | 1X3,77 | 212,1 | 200,9 | 18,85 | 3,77 | 642,9 | 555,5 | 44,23 |
| BRANT | 397,5 | 24X3,27 | 7X2,18 | 227,7 | 201,6 | 19,62 | 6,54 | 762 | 558,1 | 64,97 |
| IBIS | 397,5 | 26X3,14 | 7X2,44 | 234 | 201,3 | 19,88 | 7,32 | 814,0 | 558,2 | 72,53 |
| LARK | 397,5 | 30X2,92 | 7X2,92 | 247,8 | 200,9 | 20,44 | 8,76 | 927,1 | 555,1 | 90,3 |
| PALICAN | 477 | 18X4,14 | 1X4,14 | 255,8 | 242,3 | 20,7 | 4,14 | 770,9 | 666,4 | 52,51 |
| FLICKER | 477 | 26X3,58 | 7X2,39 | 273 | 241,6 | 21,19 | 7,17 | 915,2 | 670,1 | 76,54 |
| HAWK | 477 | 26X3,44 | 7X2,67 | 280,8 | 241,6 | 21,77 | 8,01 | 977,7 | 669,7 | 86,77 |
| HEN | 477 | 30X3,20 | 7X3,20 | 297,6 | 241,3 | 22,4 | 9,6 | 1.111,7 | 671 | 105,91 |
| OSPREY | 556,5 | 18X4,47 | 1X4,47 | 298,2 | 282,5 | 22,35 | 4,47 | 898,9 | 777 | 60,96 |
| PARAKEET | 556,5 | 24X3,87 | 7X2,58 | 318,9 | 282,3 | 23,22 | 7,74 | 1.067,0 | 781,6 | 88,11 |
| DOVE | 556,5 | 26X3,72 | 7X2,89 | 328,5 | 282,6 | 23,55 | 6,67 | 1.140,0 | 781,3 | 105,57 |
| EAGLE | 556,5 | 27X3,30 | 7X3,46 | 347,9 | 282,1 | 24,27 | 1,38 | 1.297,7 | 983,2 | 123,71 |
| PEACOCK | 605 | 24X4,03 | 7X2,65 | 345,9 | 306,1 | 24,19 | 8,07 | 1.160,8 | 849,8 | 96,12 |
| SQUAB | 605 | 26X3,87 | 7X3,01 | 355,6 | 305,8 | 24,51 | 9,03 | 1.239,7 | 849,8 | 108,13 |
| WOODDUCK | 605 | 30X3,61 | 7X3,61 | 378,8 | 307,1 | 25,27 | 10,83 | 1.410,8 | 851,2 | 128,6 |
| TEAL | 605 | 30X3,61 | 19X2,16 | 376,1 | 307,1 | 25,24 | 10,8 | 1.398,9 | 851,5 | 135,5 |
| KINGBIRD | 636 | 18X4,78 | 1×4,78 | 340,9 | 323 | 23,9 | 4,78 | 1.026,9 | 887,4 | 69,86 |
| ROOK | 636 | 24×4,14 | 7×2,76 | 365 | 323,1 | 24,84 | 8,28 | 1.281,8 | 892,9 | 97,9 |
| GROSBEAK | 636 | 26×3,97 | 7×3,09 | 321,8 | 251,5 | 9270 | 1.302,2 | 892,6 | 483 | 1.302,2 |
| SCOTER | 636 | 30×3,70 | 7×3,70 | 397,9 | 322,6 | 25,9 | 11,1 | 1.477,8 | 891,4 | 135,27 |
| EGRET | 636 | 30×3,70 | 19×2,22 | 396,1 | 322,6 | 25,9 | 11,1 | 1.470,3 | 895 | 140,17 |
| SWIFT | 636 | 36×3,38 | 1×3,38 | 332 | 323 | 23,66 | 3,58 | 958,4 | 888,4 | 61,41 |
| FLAMINGO | 666,6 | 24×4,23 | 7×2,82 | 381 | 337,3 | 25,38 | 8,46 | 1.276,9 | 935,2 | 105,46 |
| GANNET | 666,6 | 26×4,07 | 7×3,16 | 393,2 | 338,3 | 25,76 | 9,48 | 1.364,7 | 936,1 | 117,48 |
| STILT | 715,5 | 24X4,39 | 7X2,92 | 410,2 | 363,3 | 26,32 | 8,76 | 1.372,1 | 1.004,5 | 113,47 |
| STARLING | 715,5 | 26X4,21 | 7X3,28 | 421 | 361,9 | 26,68 | 9,84 | 1.465,9 | 1.004,5 | 126,37 |
| REDWING | 715,5 | 30X3,92 | 19X2,35 | 444,5 | 362,1 | 27,43 | 11,75 | 1.653,4 | 1.007,1 | 153,96 |
| CUCKOO | 795 | 24X4,62 | 7X3,08 | 454,5 | 402,3 | 27,72 | 9,24 | 1.522,4 | 1.115,2 | 124,15 |
