ASTM B230 XLPE Insulation 15kv AAC Core Tree Wire

 China ASTM B230 XLPE Insulation 15kv AAC Core Tree Wire supplier

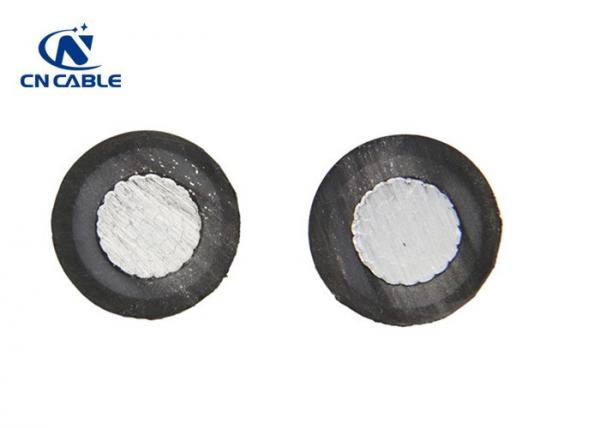

ASTM B230 XLPE Insulation 15kv AAC Core Tree Wire image

Get a Quote Email to us

Model Number :Tree wire
Place of Origin :Henan, China (Mainland)
MOQ :1000 Meter/M
Payment Terms :Western Union, L/C, T/T, MoneyGram
Supply Ability :200KM per month
Delivery Time :1-4 weeks
Packaging Details :Wooden Reel, Iron-wooden Reel, Steel Reel
Application :Overhead
Conductor Material :AAC/ACSR/AAAC
Insulation Material :XLPE
Jacket :XLPE/PE/PVC
Rated voltage :15KV ,25KV,35KV
Certificate :ISO9001/ISO14001
Standard :ICEA S-61-402,IEC60502-2, BS 6622, NFC 33226, etc.
Package :Wooden Reel, Iron-wooden Reel, Steel Reel
Color :Black

15KV TREE WIRE AAC CORE ACCORDING TO ICEA S-61-402



Application:

The cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.

It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.



Applicable Standard:

ASTM B230,ASTM B231,ASTM B232 ASTM B398,ASTM B399,ASTM B400



Cable construction:

AAC/AAAC/ACSR Conductor , XLPE/ Insulation , HDPE Outer Jacket

Packing Material:Wooden Reel, Iron-wooden Reel, Steel Reel





Tree Wire-15KV-2Layer-AAC Core



Size Stranding No. Conductor dia. Insulation thickness Outer sheath thickness Approx. Cable. Dia. Approx. Cable Weight Rated strength
AWG/kcmil No.s mm mm mm mm kg/km KN
1/0 7 8.53 1.9 1.9 16.2 292 8
2/0 7 9.55 1.9 1.9 17.2 342 10
3/0 7 10.74 1.9 1.9 18.4 405 12.2
4/0 7 12.07 1.9 1.9 19.7 484 15.3
266.8 19 13.64 1.9 1.9 21.3 576 19.9
336.4 19 15.32 1.9 1.9 22.9 693 24.6
397.5 19 16.74 1.9 1.9 24.4 796 28.4
477 19 18.34 1.9 1.9 26.0 927 33.4
556.5 37 19.81 1.9 1.9 27.4 1054 39.8
636 37 21.21 1.9 1.9 28.8 1182

45.6





Tree Wire-15KV-3Layer-AAC Core

Size Stranding No. Conductor dia. Conductor Shield Thickness Insulation thickness Outer sheath thickness Approx. Cable. Dia. Approx. Cable Weight Rated strength
AWG/kcmil No.s mm mils mm mm mm kg/km KN
1/0 7 8.53 0.4 1.9 1.9 16.9 313 8
2/0 7 9.55 0.4 1.9 1.9 17.9 366 10
3/0 7 10.74 0.4 1.9 1.9 19.1 430 12.2
4/0 7 12.07 0.4 1.9 1.9 20.4 510 15.3
266.8 19 13.64 0.4 1.9 1.9 22.0 606 19.9
336.4 19 15.32 0.4 1.9 1.9 23.7 725 24.6
397.5 19 16.74 0.4 1.9 1.9 25.1 830 28.4
477 19 18.34 0.4 1.9 1.9 26.7 964 33.4
556.5 37 19.81 0.5 1.9 1.9 28.4 1104 39.8
636 37 21.21 0.5 2.0 2.0 30.4 1259 45.6
795 37 23.67 0.5 2.0 2.0 32.8 1518 55.6





Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port

Click here for FOB and CIF prices







Company Information

CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.



The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.



There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.



Our Services





Buyer Feedback







FAQ



Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.



Q3: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q4: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Looking forward to cooperating with you.


We are China ASTM B230 XLPE Insulation 15kv AAC Core Tree Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
