ASTM A-475 Galvanized Steel Wire Strand 7/5.26mm EHS5/8"Guy Stay Wire

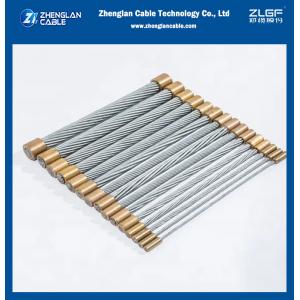

ASTM A-475 Galvanized Steel Wire Strand 7/5.26mm EHS5/8"Guy Stay Wire image
7/5.26mm EHS5/8" ASTM A-475 Standard Galvanized Steel Wire Strand Guy Wire Stay Wire
Application:
STANDARD
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand; Concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.
Technical data sheets:
| Galvanized Steel Wire Strand ASTM A-475 | ||||||
| Number of Wire(Dia.) | Approx.Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight | |
| Inch | mm | KN | KN | KN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | – | – | – | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | – | – | – | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | – | – | – | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
Image:
About Zhenglan Cable
Zhenglan Cable Technology Co., Ltd has factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China. Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
- overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
- 1-35kv overhead transmission line use insulated conductor
- power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
- power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
- 300/300V, 300/500V, 450/750V cotrol cable, house wire
Why Choose Zhenglan Cable:
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
We are China ASTM A-475 Galvanized Steel Wire Strand 7/5.26mm EHS5/8"Guy Stay Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
