ASTM 1kV 3 Core Copper Armored XLPE Insulated Cable

 China ASTM 1kV 3 Core Copper Armored XLPE Insulated Cable supplier

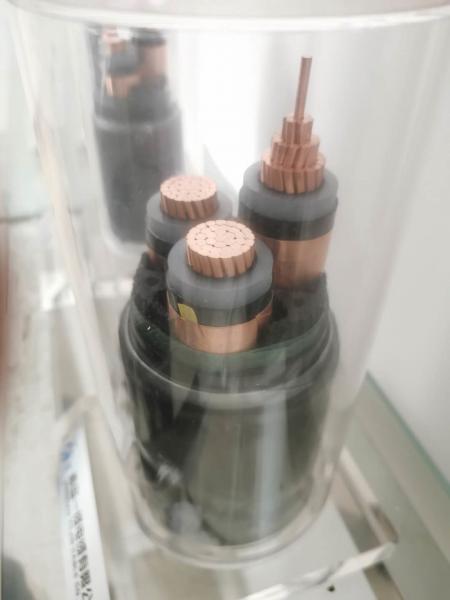

ASTM 1kV 3 Core Copper Armored XLPE Insulated Cable image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
CE/IEC/KEMA/VDE

Place of Origin :
China

MOQ :
500 m

Payment Terms :
L/C, T/T, Western Union, MoneyGram,

Supply Ability :
100km per Month

Delivery Time :
14 days

Packaging Details :
Iron-wooden Drum

Rated Voltage :
0.6/1kV

Cross Section Area :
240 Sqmm

Outer Sheath Color :
Black or as per request

Core Mark :
Number or Color Strip

Manufacturer :
Top 3 China Cable Manufacturer

Cable Mark :
Ink Printing or Embossing

3-Core Copper Core Medium Voltage Armored XLPE Insulated Cable

1. XLPE cable standard:

According to GB12706 (equivalent to IEC60502), it can also be manufactured according to ASTM, BS, DIN and AS/NZS standards or other standards.
2. Rated voltage of XLPE cable:
0.6 / 1KV 6 / 10KV; 8.7 / 15KV; 12 / 20KV; 18 / 20KV; 21 / 35KV; 6 / 35KV

3. The structure of XLPE cable:

Conductor: copper or aluminum
Insulation: XLPE
Inner sheath: PVC or PE
Armour: galvanized steel strip, galvanized steel wire
Outer sheath: PVC or PE
No. Number of cable cross-sections: 1 core (single core), 2 cores (double core), 3 cores, 4 cores (4 cores with equal cross-sectional area or 3 cores with equal cross-sectional area + 1 neutral core with small cross-sectional area), 5 Core (5 3 equal-cross-sectional area cores + 2 small-area neutral cores or 4 equal cross-sectional areas + 1 small-area neutral core. We provide armored and unarmored types for the above cables.
It can also be made according to customer requirements.

4. Features of XLPE cable:

a. The maximum long-term working temperature of XLPE insulated cables is 90°C
b. The installation temperature of the cable should not be lower than 0°C
c. The maximum short-circuit temperature does not exceed 250°C and does not exceed 5 seconds
d. Without sufficient mechanical pulling force, it cannot be laid without restriction, single-core cables cannot be laid in iron pipes or the cables can be fixed with coiled iron tools

5. Description & Application of XLPE Cable:

TYPE NAME Main Application
CU core AL core
YJV/YJY YJLV/YJLY XLPE insulated,PVC/PE sheathed power cable For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid
YJV22/YJV23 YJLV22/YJLV23 XLPE insulated,steel tape armored,PVC/PE sheathed power cable For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force
YJV32/YJV33 YJLV32/YJLV33 XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43 YJLV42/YJLV43 XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable For laying in water and seabed.Able to bear positive pressure and pulling force

6. Advantages:

One kind. Excellent electrical and mechanical properties
b. Best resistance to chemical corrosion and thermal aging, environmental stress and flame retardancy
C. Simple structure, easy to use
d. cut costs

We are China ASTM 1kV 3 Core Copper Armored XLPE Insulated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
