AS3607 ACSR/GZ Bare Conductor Consisted Of Galvanized Steel Wire 6/1/3.0mm APPLE

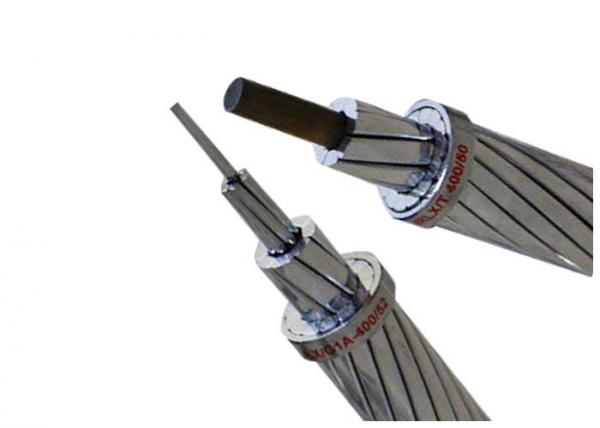

AS3607 ACSR/GZ Bare Conductor Consisted Of Galvanized Steel Wire 6/1/3.0mm APPLE image
Brand Name :
SHAN CABLE
Model Number :
ACSR/GZ 6/1/3.0MM
Certification :
KEMA/CE/TUV/ISO
Place of Origin :
SHANGHGAI CHINA
MOQ :
500M
Price :
USD 0.16-3.99/M
Payment Terms :
L/C, T/T
Supply Ability :
684397KM/Day
Delivery Time :
7 Days
Packaging Details :
Drum
Code Name :
Apple
Applicable Standard :
AS3607
Applicant :
Aerial Power Networks
Conductor :
Aluminum
Sample :
Free
Min.Breaking Load :
1.20KN
AS3607 ACSR/GZ Bare Conductor Consisted Of Galvanized Steel Wire 6/1/3.0mm APPLE
Description: Overhead ACSR/GZ conductor which is used for aerial power networks is suitable for aerial installation between poles.
Construction: The bi-metallic conductor is consisted of galvanized steel wire (-s) core and hard-drawn aluminum wires. The interstices of the inner layers are filled by grease compound which is suitable for the operating conditions of the conductor.
Standard: AS3607
ACSR/GZ Cross section diagram of APPLE
APPLE
Properties of ACSR/GZ 6/1/3.00mm
ITEM | DESCRIPTION | UNIT | TECHNICAL PARTICULARS |
1 | Code name | – | Apple |
2 | Applicable Standards | – | AS3607 |
3 | Type of conductor | – | ACSR/GZ |
4 | Properties of Aluminum 1350 wires | ||
Nominal Diameter | mm | 3.00 | |
Max. | mm | 3.030 | |
Min. | mm | 2.970 | |
Cross-sectional area | mm2 | 7.069 | |
Approx. Mass | Kg/km | 19.1 | |
Minimum breaking load | kN | 1.20 | |
Minimum ultimate tensile stress | MPa | 170 | |
Maximum DC resistivity at 20℃ | μΩ. m | 0.0283 | |
Maximum DC resistance at 20℃ | Ω/km | 4.00 | |
5 | Properties of galvanized steel wires | ||
Nominal Diameter | mm | 3.00 | |
Max. | mm | 3.060 | |
Min. | mm | 2.940 | |
Cross-sectional area | mm2 | 7.069 | |
Approx. Mass | Kg/km | 55.1 | |
Minimum breaking load | kN | 9.26 | |
Minimum ultimate tensile stress | MPa | 1310 | |
Maximum DC resistivity at 20℃ | μΩ. m | 0.17 | |
Maximum DC resistance at 20℃ | Ω/km | 24 | |
6 | Properties of Grease | ||
Type of grease |
Anti- Corrosion |
||
Color of grease | Offwhite | ||
Drop point of grease(min.) | ℃ | 120 | |
Approx. Mass | Kg/km | 1.35 | |
7 | Properties of Stranded conductor | ||
Stranding and wire diameter: Aluminum 1350 Galvanized Steel |
6/3.00 1/3.00 |
||
Lay length of stranded conductor(6-wire layer) | mm | 112(-0,+4) | |
Lay direction of 6-wire layer | Right | ||
Nominal Overall diameter | 9.0 | ||
Cross-sectional area | mm2 | 49.48 | |
Approx. mass(without grease) | Kg/km | 171 | |
Approx. mass(with grease) | Kg/km | 172 | |
Minimum breaking load | kN | 14.9 | |
Equiv. Aluminum area | mm2 | 41.8 | |
Maximum DC resistance at 20℃ | Ω/km | 0.677 |
Some not mentioned, please see AS3607.
PACKING DETAIL
Conductors shall be wound on a non-returnable fumigated wooden drum or metal drum.
The required marking shall be printed with a weather-proof material on the outsides of
drum according to customer’s requirement.
Cable Type | Drum Length | Drum Dimensions & Weights | Material | |||||
D | d | B | b | A | net weight | |||
m | mm | mm | mm | mm | mm | kg | ||
Apple | 3000 | 1000 | 500 | 720 | 600 | 95 | 517 | Fumigated wooden Drum |
Note: 1 The value"D" don't contain the dimension of seal. 2 The approximate weight of drum(Φ1000) is 100 kilograms. |
