As 3607 Aluminum Conductor Steel Reinforced Galvanized Zinc Coated

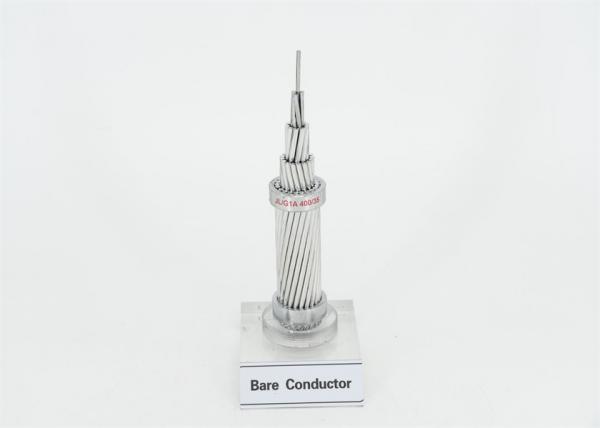

As 3607 Aluminum Conductor Steel Reinforced Galvanized Zinc Coated image
Brand Name :
Sanwu
Model Number :
AS 3607
Certification :
CCC,ISO
Place of Origin :
LUOYANG,CHINA
MOQ :
1000m
Price :
Negociable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer’s request.
Product Name :
ACSR(GZ)
Material :
Aluminum conductor steel reinforced (GZ) Zinc-coated ACSR
Conductor :
Aluminum
Steel wire :
Galvanized
Size :
QUINCE,RAISIN,SUPER SULTANA,SULTANA,Almond, Apricot,APPPLE,,Banana, CHERRY,GRAPE, LEMON
Standard :
AS 3607 Australia standard
AS 3607 ACSR Cherry Grape Aluminum conductor steel reinforced (GZ) Galvanized Zinc-coated ACSR
SINCE 2016
1. APPLICATION
Aluminium conductor steel-reinforced cable (ACSR) is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purity aluminium, chosen for its good conductivity, low weight, low cost, resistance to corrosion and decent mechanical stress resistance. The centre strand is steel for additional strength to help support the weight of the conductor. Steel is of higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor.
2. STANDARDS
AS 3607
ACSR/GZ – Aluminium conductors, galvanised steel reinforced
3. CONDUCTORS
(1) Steel part: Zinc- coated steel wires, one wire or multi-wires concentric stranded
(2) Aluminium part: Hard drawn aluminium wires, concentric stranded
(3) Grease part (optional): Neutral grease, used in coast and in corrosive regions. Conductor with grease application are called ACSR/Lz, ACSR/Mz, ACSR/Hz, ACKP or AsKP and sometime also use ACSR.
| Code Name | Stranding and wire diameter no/mm | Nominal overall diameter | Cross- sectional area | Approximate mass | Breaking load | Modulus of elasticity |
Coefficient of linear expansion | DC resist. at 20°C |
AC resist. at 50Hz 75°C |
|
| Aluminium | Steel | mm | mm2 | kg/km | kN | GPa | x 10–6/°C | Ω/km | Ω/km | |
| Almond | 6/2.50 | 1/2.50 | 7.5 | 34.4 | 119 | 10.5 | 83 | 19.3 | 0.975 | 1.31 |
| Apricot | 6/2.75 | 1/2.75 | 8.3 | 41.6 | 144 | 12.6 | 83 | 19.3 | 0.805 | 1.08 |
| Apple | 6/3.00 | 1/3.00 | 9.0 | 49.5 | 171 | 14.9 | 83 | 19.3 | 0.677 | 0.91 |
| Banana | 6/3.75 | 1/3.75 | 11.3 | 77.3 | 268 | 22.7 | 83 | 19.3 | 0.433 | 0.582 |
| Cherry | 6/4.75 | 7/1.60 | 14.3 | 120 | 402 | 33.4 | 80 | 19.9 | 0.271 | 0.367 |
| Grape | 30/2.50 | 7/2.50 | 17.5 | 182 | 677 | 63.5 | 88 | 18.4 | 0.196 | 0.263 |
| Lemon | 30/3.00 | 7/3.00 | 21.0 | 262 | 973 | 90.4 | 88 | 18.4 | 0.136 | 0.167 |
| Lychee | 30/3.25 | 7/3.25 | 22.8 | 307 | 1140 | 105 | 88 | 18.4 | 0.116 | 0.142 |
| Lime | 30/3.50 | 7/3.50 | 24.5 | 356 | 1320 | 122 | 88 | 18.4 | 0.100 | 0.123 |
| Mango | 54/3.00 | 7/3.00 | 27.0 | 431 | 1440 | 119 | 78 | 19.9 | 0.0758 | 0.0955 |
| Orange | 54/3.25 | 7/3.25 | 29.3 | 506 | 1690 | 137 | 78 | 19.9 | 0.0646 | 0.0816 |
| Olive | 54/3.50 | 7/3.50 | 31.5 | 587 | 1960 | 159 | 78 | 19.9 | 0.0557 | 0.0705 |
| Pawpaw | 54/3.75 | 19/2.25 | 33.8 | 672 | 2240 | 178 | 77 | 20.0 | 0.0485 | 0.0615 |
| Quince | 3/1.75 | 4/1.75 | 5.3 | 16.8 | 95 | 12.7 | 136 | 13.9 | 3.25 | 4.37 |
| Raisin | 3/2.50 | 4/2.50 | 7.5 | 34.4 | 195 | 24.4 | 136 | 13.9 | 1.59 | 2.14 |
| Sultana | 4/3.00 | 3/3.00 | 9.0 | 49.5 | 243 | 28.3 | 119 | 15.2 | 0.897 | 1.21 |
| Walnut | 4/3.75 | 3/3.75 | 11.3 | 77.3 | 380 | 43.9 | 119 | 15.2 | 0.573 | 0.77 |
4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.
(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
5. Available Samples
6. Factory Cable making machines
7. Packing&Delivery
We are China As 3607 Aluminum Conductor Steel Reinforced Galvanized Zinc Coated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
