AS 1531 AAC AAAC All Aluminium Conductor 7 Stranded

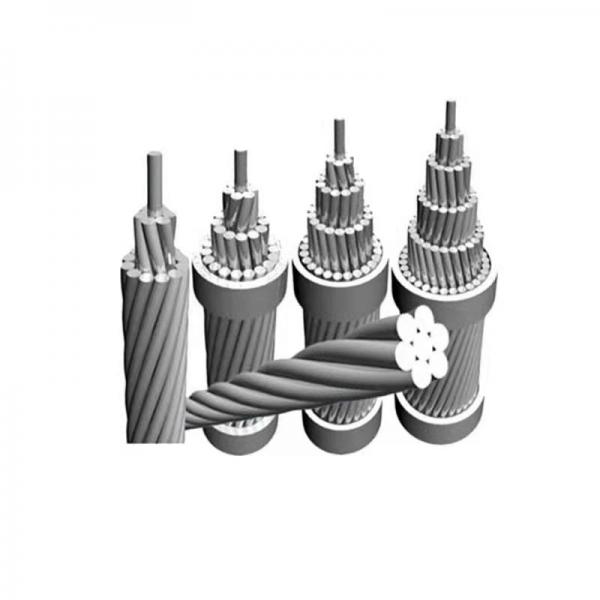

AS 1531 AAC AAAC All Aluminium Conductor 7 Stranded image
Brand Name :
Sanwu
Model Number :
AS 1531 AAC/1350, AAAC/1120, AAAC/6201
Certification :
CCC,ISO
Place of Origin :
LUOYANG,CHINA
MOQ :
1000m
Price :
Negociable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer’s request.
Product Name :
All aluminium conductor, All aluminium alloy conductor
Application :
Overhead transmission line, electrical transmission line
Standard :
AS 1531
Insulation :
No, Bare conductor
Type :
concentric lay stranded
Voltage :
HV Conductor
Stranded :
7,19,37,61,91 wires
Direction of lay :
Rignt-hand (Z)
AS 1531 AAC AAAC All aluminium conductor and all aluminium alloy conductor
SINCE 2016
1. APPLICATION
This wire is suitable for use in spans on wood poles, transmission towers, and other structures where high tensile strength is not required. Applications range from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.
2. STANDARDS
AS 1531
Part 1: AAC 1350 All aluminium conductor (Leo-Mars-Sirius-Venus)
Part 2: AAAC 6201 All aluminium alloy conductor (Diamond-Emerald-Pearl-Ruby-Topaz)
Part 2: AAAC 1120 All aluminium alloy conductor (Hydrogen-Neon-Oxygen-Silicon-Sufur)
3. CONDUCTORS
Hard drawn Aluminum wires, concentric lay stranded.
The most commonly used stranding consists of 7, 19, 37, 61 wires.
Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
| Code Name | Stranding and wire diameter | Cross- sectional area | Approximate mass | Calculated breaking load (CBL) | Equiv. aluminium area | DC resist. at 20°C |
| mm | mm2 | kg/km | kN | mm2 | Ω/km | |
| Leo | 7.5 | 34.36 | 94.3 | 5.71 | 33.9 | 0.833 |
| Leonids | 8.25 | 41.58 | 113 | 6.72 | 41.1 | 0.689 |
| Libra | 9.0 | 49.48 | 135 | 7.98 | 48.9 | 0.579 |
| Mars | 11.3 | 77.28 | 211 | 11.8 | 76.3 | 0.370 |
| Mercury | 13.5 | 111.3 | 304 | 16.9 | 110 | 0.258 |
| Moon | 14.3 | 124.0 | 339 | 18.9 | 122 | 0.232 |
| Neptune | 16.3 | 157.6 | 433 | 24.7 | 154 | 0.183 |
| Orion | 17.5 | 182.8 | 503 | 28.7 | 180 | 0.157 |
| Pluto | 18.8 | 209.8 | 576 | 31.9 | 206 | 0.137 |
| Saturn | 21.0 | 261.6 | 721 | 42.2 | 256 | 0.110 |
| Sirius | 22.8 | 307.0 | 845 | 48.2 | 301 | 0.094 |
| Taurus | 23.8 | 336.7 | 924 | 51.3 | 331 | 0.0857 |
| Triton | 26.3 | 408.5 | 1120 | 62.2 | 400 | 0.0706 |
| Uranus | 29.3 | 506.1 | 1400 | 75.2 | 495 | 0.0572 |
| Ursula | 31.5 | 586.9 | 1620 | 87.3 | 574 | 0.0493 |
| Venus | 33.8 | 673.4 | 1860 | 97.2 | 659 | 0.0429 |
4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.
(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
5. Available Samples
6. Factory Cable making machines
7. Packing&Delivery
We are China AS 1531 AAC AAAC All Aluminium Conductor 7 Stranded manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
