Armoured Fire Resistant Cables /PVC Insulated Rated Voltage 0.6/1kV (Size:1.5~1000mm2）

Armoured Fire Resistant Cables /PVC Insulated Rated Voltage 0.6/1kV (Size:1.5~1000mm2)

1. Fire Resistant Cable Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage
Application: Construction
Conductor Material: Copper/Aluminum
Jacket: PVC
Sizes: 1.5~1000mm2
Insulation color: Red, yellow, green all according to clients demand
Number of cores: 1-5cores
Rated voltage: 0.6/1KV
Armoured: Steel Wire(swa)
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

2. Fire Resistant Cable structure

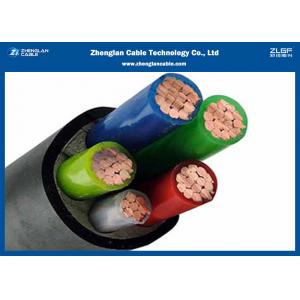

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

3. Fire Resistant Cable Characteristics:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

4. Fire Resistant Cable Application
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Why Choose Zhenglan Cable:

• OEM/ODM services provided
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
• Registered capital of $30 million and factory covers an area of 60,000㎡
• Advanced test equipment and procedures, 100% inspection before factory
• Enough stocks and the higest efficient shipping time guarranteed
• Professional pre-sales and after-sales services provided

  0.6/1kV PVC Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
  	Aluminum	Copper	PVC	SW	ST	DST	AW	PVC	PE
  Cu/PVC/PVC		P	P	—	—	—	—	P
  Cu/PVC/PE		P	P	—	—	—	—		P
  Al/PVC/PVC	P		P	—	—	—	—	P
  Al/PVC/PE	P		P	—	—	—	—		P
  Cu/PVC/STA/PVC		P	P	—	P	—	—	P
  Cu/PVC/STA/PE		P	P	—	P	—	—		P
  Al/PVC/STA/PVC	P		P	—	P	—	—	P
  Al/PVC/STA/PE	P		P	—	P	—	—		P
  Cu/PVC/DSTA/PVC		P	P	—	—	P	—	P
  Cu/PVC/DSTA/PE		P	P	—	—	P	—		P
  Al/PVC/DSTA/PVC	P		P	—	—	P	—	P
  Al/PVC/DSTA/PE	P		P	—	—	P	—		P
  Cu/PVC/SWA/PVC		P	P	P	—	—	—	P
  Cu/PVC/SWA/PE		P	P	P	—	—	—		P
  Al/PVC/SWA/PVC	P		P	P	—	—	—	P
  Al/PVC/SWA/PE	P		P	P	—	—	—		P
  Cu/PVC/AWA/PVC		P	P	—	—	—	P	P
  Cu/PVC/AWA/PE		P	P	—	—	—	P		P
  Al/PVC/AWA/PVC	P		P	—	—	—	P	P
  Al/PVC/AWA/PE	P		P	—	—	—	P		P
  Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire
