Anti Twist Hexagon 30mm Galvanized Steel Braided Wire

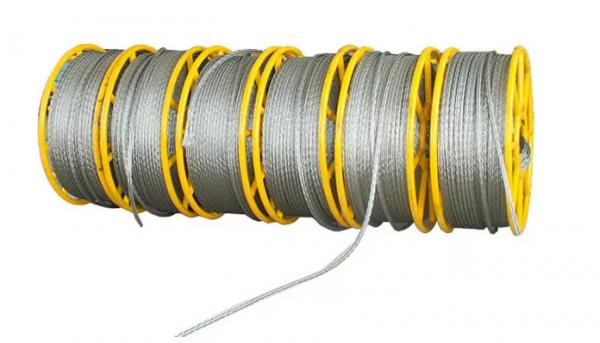

Anti Twist Hexagon 30mm Galvanized Steel Braided Wire image
Brand Name :
Suntech
Model Number :
steel wire rope cable
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
500m
Price :
Get newest price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30000 meter per day
Delivery Time :
10-15 days after payment
Packaging Details :
Steel Reel and Containers
Name :
Anti Twist Steel Rope
Usage :
Construction Stringing
Type :
Hexagon
Material :
Steel
Frame :
Reel
Surface :
Galvanized with Oil
High Strength Anti Twist Wire Rope , Steel Wire Rope Cable With Hexagon For Pilot Rope
Application
Galvanized steel anti-twisting braided steel wire is widely used in mining, loading, forestry and marine industries for various kinds of lifting, hoisting and pulling etc.
It is also suitable for various kinds of cable carriage, rope and belt conveyer, ropeway drawing, slope winch,
Specially braided from galvanized steel wire and widely used as pilot rope in power line stringing operation.
Features:
-
The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
-
The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.
-
Hexagon is more suitable for puller, tensioner,winch, hoisting etc .
Structural forms for wire ropes (in cross section)
1 Four-sided eight strands
2 Four-sided twelve strands
3 Six-sided twelve strands
Remarks: All kinds of non-rotating steel wire rope can be made according to the customers` requirements.
Technical Data
Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
YL16-12x19W | 16 | 12 Strands | 158 | 1000 | 1250 | 886 |
YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |
We are China Anti Twist Hexagon 30mm Galvanized Steel Braided Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
