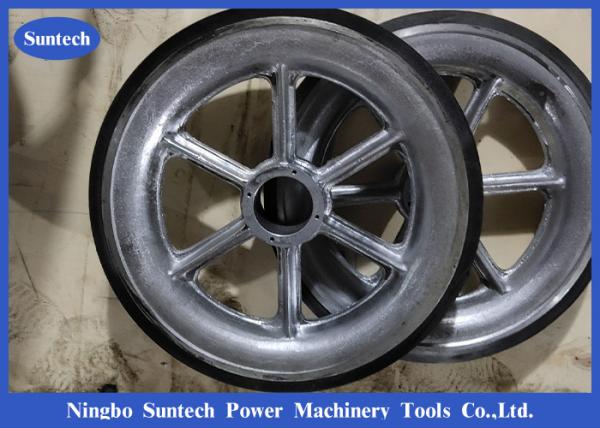

Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block
Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block image
Brand Name :
Suntech
Model Number :
Conductor Stringing Pulley Blocks
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 pcs
Price :
Get newest price
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
10-15 days after payment
Packaging Details :
Exported Wooden Boxes
Materials :
Aluminum or Nylon
Name :
Stringing Blocks
Apply :
Constructure Works
Use :
Pulling Conductor
Weight :
25kg
Size :
308*80mm Pulley Block
Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block
Application:
- Widely used in overhead power line construction. Used to release conductors. It can be passed byconnectors, swivel joints.
- A block and tackle system which combined with many pulleys is often in conjunction with a winch, mast or other lifting equipments and it is usually used in construction and installation work like lifting tower, stringing, hoisting works. It can be also used in lifting and hoisting works of dock, shipyard, warehouse and so on.
Specifications
| Item number | Model | Diameter(mm) | Width(mm) | Blank weigh(kg) |
| 10010L | 80*50 | 80 | 50 | 0.2 |
| 10011L | 120*35 | 120 | 35 | 0.3 |
| 10012L | 120*58 | 120 | 58 | 0.5 |
| 10013L | 120*80 | 120 | 80 | 0.6 |
| 10014L | 120*130 | 120 | 130 | 0.7 |
| 10015L | 120*200 | 120 | 200 | 1.2 |
| 10016L | 140*160 | 140 | 160 | 0.9 |
| 10017L | 140*210 | 140 | 210 | 1.1 |
| 10018L | 160*40 | 160 | 40 | 0.5 |
| 10020L | 160*230 | 160 | 230 | 1.7 |
| 10021L | 200*40 | 200 | 40 | 0.6 |
| 10022L | 200*60 | 200 | 60 | 0.8 |
| 10024L | 250*60 | 250 | 60 | 1.2 |
| 10026L | 270*60 | 270 | 60 | 1.6 |
| 10027L | 320*60 | 320 | 60 | 1.9 |
| 10028L | 320*80 | 320 | 80 | 2.2 |
| 10029L | 408*80 | 408 | 80 | 4.1 |
| 10050L | 508*75 | 508 | 75 | 6.0 |
| 10051L | 508*100 | 508 | 100 | 7.0 |
| 10052L | 660*100 | 660 | 100 | 10.0 |
| 10055L | 822*110 | 822 | 110 | 18.0 |
We are China Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Aluminum Cable Pulley Wheel, conductor stringing blocks, Conductor Stringing Sheave Pulley Block, Neoprene Lined Sheave Pulley BlockSimilar Or Related
