Aluminum LV MV Al Service Drop 12.7/22kV ABC Cable

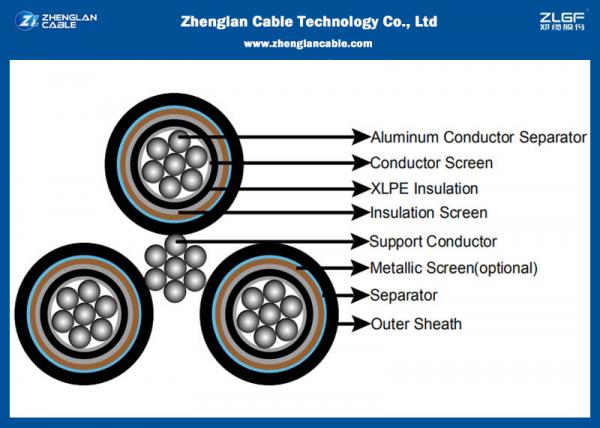

Aluminum LV MV Al Service Drop 12.7/22kV ABC Cable image
Brand Name :
Zhenglan Cable
Model Number :
Insulated Overhead Cable
Certification :
ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C,
Supply Ability :
100Km/Month
Delivery Time :
15-30 days
Packaging Details :
Wooden drum, wooden-steel drum, coil or plastic drum customized
Insulation Material :
XLPE
Conductor Material :
Aluminum
Application :
Overhead
Quality :
100% test
Standard :
ISO 9001:2015
structure :
XlPE/PVC/PE
Aluminum Electrical XlPE/PVC/PE Insulated Overhead Cable LV MV Al Service Drop 12.7/22kV ABC Cable
Operating Characteristics
Operating voltage: 10kV, 11kv 15kv 24kv 25kv 35kv
Max. permissible continuous operating temperature of conductor with XLPE insulation: 90°C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250°C
The ambient temperature under installation should not be lower than: -20°C
The bending radius of cable is recommended as following:
Single core cable: not less than 20 times of the diameter of cable
Multi-core cable: not less than 15 times of the diameter of cable
Application
XLPE insulated aerial cable as a new-type aerial cable is used for overhead electric power transmission and distribution, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA
11kv single core aerial spaced cable with conductor screen 1cx95sqmm AL/XLPE/XLPE
| Cross section | Stranding | Approx weight kg/km | Approx overall diameter | Gland size mm | Single cleat | Nom. Max. DC-resist conductor 20°C | Current rating laid direct |
| mm2 | mm | ohm/km | amp | ||||
| 1 x 50 | 19/1.78 | 1,210 | 28.5 | 32 | 1.2 | 0.387 | 221 |
| 1 x 70 | 19/2.14 | 1,500 | 30.5 | 32 | 1.2 | 0.268 | 270 |
| 1 x 95 | 19/2.52 | 1,700 | 32.4 | 32 | 1.4 | 0.193 | 321 |
| 1 x 120 | 37/2.03 | 2,105 | 34.2 | 40 | 1.4 | 0.153 | 363 |
| 1 x 150 | 37/2.25 | 2,505 | 36.4 | 40 | 1.6 | 0.124 | 410 |
| 1 x 185 | 37/2.52 | 2,900 | 37.7 | 40 | 1.6 | 0.0991 | 455 |
| 1 x 240 | 61/2.25 | 3,532 | 40.6 | 50s | 1.6 | 0.0754 | 520 |
| 1 x 300 | 61/2.52 | 4,230 | 42.7 | 50s | 1.8 | 0.0601 | 580 |
| 1 x 400 | 61/2.85 | 5,145 | 46.4 | 50s | 2 | 0.047 | 650 |
| 1 x 500 | 61/3.20 | 6,450 | 51 | 50 | 2 | 0.0366 | 710 |
| 1 x 630 | 127/2.52 | 7,950 | 59.9 | 63s | R9 | 0.0283 | 761 |
| 1 x 800 | 127/2.85 | 9,720 | 60 | 63 | R10 | 0.0221 | 812 |
We are China Aluminum LV MV Al Service Drop 12.7/22kV ABC Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 12.7/22kV copper tape screen cable, MV aerial bundle cable, Overhead Insulated CableSimilar Or Related
