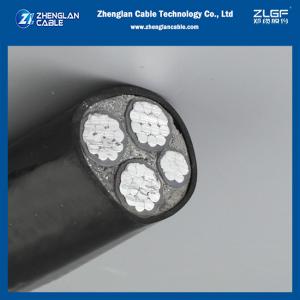

Aluminum LV Core Power Cable IEC60502-1 XLPE Insulated Ink Printing image

Get a Quote Email to us

LV power cable (3+1) core Aluminum cable IEC60502-1 XLPE insulated Power cable

Applications:

LV power cable (3+1) core Aluminum cable IEC60502-1 XLPE insulated Power cable is applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below.

LV power cable (3+1) core Aluminum cable IEC60502-1 XLPE insulated Power cable are referred multicore power cable IEC60502-1, suitable for installation indoor/outdoor, enclosed in conduit or in underground duct where not subject to mechanical force or damage. Additional protection is available for UV, low smoke zero halogen (LS0H) and Flame Retardant (FR) properties where required.

Operating characteristics

1. Cable laying temperature: ≥0°C

2. Cable conductor long-term allowable working temperature:≤90°C

3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C

4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

LV power cable (3+1) core Aluminum cable IEC60502-1 XLPE insulated Power cable Insulation:

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code:

Colour Code (1) :
1 Core Red or Black
2 Cores Red, Black
3 Cores Red, Yellow, Blue
4 Cores Red, Yellow, Blue, Black
5 Cores Red, Yellow, Blue, Black, Green

Outer Sheath material and feature: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Sheaths's Fire Performance: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

LV power cable (3+1) core Aluminum cable IEC60502-1 XLPE insulated Power cable Cable Parameters:

Conductor dimensions (mm2) Insulation thickness (mm) Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+1C 3+1C 3+1C
2.5 1.5 0.7 0.7 1.8 11.9 206
4 2.5 0.7 0.7 1.8 12.9 268 178
6 4 0.7 0.7 1.8 14.2 352 215
10 6 0.7 0.7 1.8 16.5 517 290
16 10 0.7 0.7 1.8 19.2 761 396
25 16 0.9 0.7 1.8 22.4 1110 538
35 16 0.9 0.7 1.8 24.6 1402 647
50 25 1 0.9 1.8 28 1943 842
70 35 1.1 0.9 1.9 29.5 2645 1101
95 50 1.1 1 2.1 33.2 3554 1443
120 70 1.2 1.1 2.2 36.3 4504 1793
150 70 1.4 1.1 2.3 39.7 5425 2147
185 95 1.6 1.1 2.5 45.4 6781 2683
240 120 1.7 1.2 2.7 53 8708 3412
300 150 1.8 1.4 2.9 58.3 10818 4192
400 185 2 1.6 3.1 67.5 14163 5423

LV power cable (3+1) core Aluminum cable IEC60502-1 XLPE insulated Power cable Productos show:


Why Choose Us:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China Aluminum LV Core Power Cable IEC60502-1 XLPE Insulated Ink Printing manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
