Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard

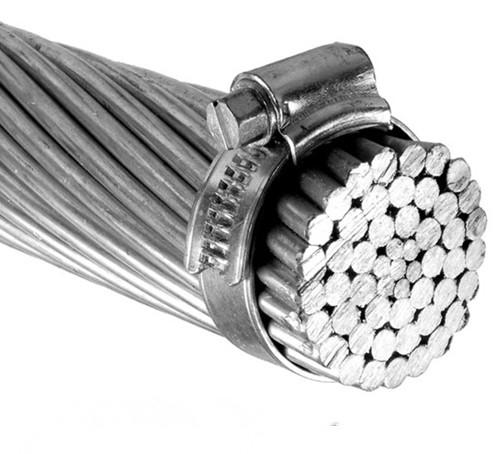

Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard image
Brand Name :
Huanghe
Model Number :
AAC
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Price :
0.1-10USD
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
coils, wooden drums, steel drums or steel-wooden drums
Application :
Overhead
Insulation material :
None, bare
Jacket :
None, Bare
Standard :
ASTM B232, IEC61089, BS215, DIN48204, BS EN50182, GB/T 1179-2008 etc.
Packing :
coils, wooden drums, steel drums or steel-wooden drums
Warranty :
1 Year
Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard
AAC BARE ALUMINUM CONDUCTOR FEATURE
1. High tensile strength
2. Long life
3. Light in weight
4. Suitable for high as well as extra high overhead voltage lines
AAC BARE AlUMINUM CONDUCTOR STANDARD
ASTM B232, IEC61089, BS215, DIN48204, BS EN50182, GB/T 1179-2008 etc.
AAC All Aluminium Conductor
AAC conductor is also known as all aluminium conductor. AAC conductor is widely used in power transmission lines with various voltage levels. Since the aac bare conductor has such good charactersistics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and is also suitable for laying across rivers and valleys where special geographical teatures exist.
AAC ALL ALUMINUM CONDUCTOR BARE CONDUCTOR DATA
| Code Name | Total Area | Stranding and Wire Diameter | Overall Diameter | Linear Mass | Nominal Breaking Load | Max.D.C. Resistance at 20°c | ||||||||
| AWG or MCM | mm2 | mm | mm | kg/km | daN | Ω/km | ||||||||
| Peachbell | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 249 | 2.1692 | |||||||
| Rose | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 396 | 1.3624 | |||||||
| Iris | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 597 | 0.8577 | |||||||
| Pansy | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 732 | 0.6801 | |||||||
| Poppy | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 873 | 0.539 | |||||||
| Aster | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 1100 | 0.4276 | |||||||
| Phlox | 3/0 | 85.03 | 7/3.932 | 11.800 | 234 | 1347 | 0.339 | |||||||
| Oxlip | 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 1698 | 0.2688 | |||||||
| Valerian | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 2062 | 0.2275 | |||||||
| Sneezewort | 250 | 126.71 | 7/4.80 | 14.4 | 349 | 2007 | 0.2275 | |||||||
| Laurel | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 2200 | 0.2133 | |||||||
| Daisy | 266.8 | 135.16 | 7/4.96 | 14.9 | 373 | 2141 | 0.2133 | |||||||
| Peony | 300 | 152 | 19/3.193 | 15.97 | 419 | 2403 | 0.1896 | |||||||
| Tulip | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 2695 | 0.1691 | |||||||
We are China Aluminum Electrical AAC Bare Conductor With ASTM B232 IEC61089 Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
