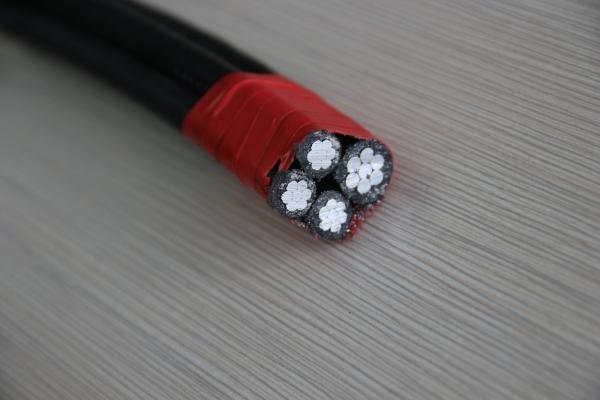

Aluminum Conductors Pvc Insulation Quadruplex Service Drop Cable Acsr Supported
Aluminum Conductors Pvc Insulation Quadruplex Service Drop Cable Acsr Supported image
Brand Name :
SANWU
Model Number :
ABC CABLE
Certification :
ISO CCC
Place of Origin :
LUOYANG,CHINA
MOQ :
5000M
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
wooden drums
Phase Conductor :
Auminum
Insulation :
PVC,PE,XLPE,HDPE
Application :
overhead transmission line
Voltage :
Low Voltage
Messenger Coductor :
AAC,AAAC,ACSR,ACAR
name :
Aluminum Conductors Pvc Insulation Quadruplex Service Drop Cable Acsr Supported
Quadruplex service drop cable
| Code Word | Phase conductor | Bare Neutral Messenger | Nominal Lay Length | Weight Per 1000ft. (lbs.) | Allowable Ampacities+ | |||||||
|
Size (AWG) |
Stranding |
Insul. Thick. (Mils) |
Size (AWG) |
Stranding |
Rated Strength (lbs.) |
inches | XLP | POLY | XLP | POLY | ||
| AAC Neutral-messenger | ||||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 | |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 | |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 | |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 | |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 | |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 | |
Code words for XLP insulated products are formed by adding/XLPto the conventional code words above(e.g.-Chihuahua/XLP)
600/1000v Aerial Bundle Cable
1) Certificate:ISO9001
2) Fast delivery and best price
3) Standard:IEC,ASTM,BIS,etc
Luoyang Sanwu Cable CO.,Ltd was established in September 2016 ,with registered capital of 5 million RMB and more than 200 employees.Sanwu is a wire and cable manufacturing enterprise integrating with R&D, production and sales. The transportation of manufacturing base is convenient ,which is located in Yichuan Country Industrial Zone, adjacent to the Luoyang southwest highway ,Zhengzhou-Shaolinsi-Luoyang high way .
The company has obtained national product safety certification, 3C certification, 3 system certification, German TUV certification and international standard product mark certification, etc. Now Sanwu has three production workshops and more than 40 production lines. We mainly produce and manage electric round aluminum rods, overhead wires, power cables, wires and cables for electrical equipment, and special cables. Sanwu products are widely used in electric power, transportation, new energy, petroleum and petrochemical, national defense, and urban construction. In addition, Leading products overhead conductors are sold well and trusted by users all over the world .
The company is committed to "all for customer satisfaction," giving full play to the advantages of talent, technology and equipment, emphasising on quality, price and service, and striving to establish national cable brand, to achieve the leap-forward development of enterprises.
Service drop cable feature
Voltage: 0.6/1Kv
Type: Single/duplex/triplex/quadruplex
Phase conductor: Aluminum(AAC)
Neutral messenger: AAC/AAAC/ACSR
Insulated: PE/PVC/XLPE/LEPE/HDPE
Color: Black or as your request.
Standards: IECA or according to your requirement
Packaging: Wooden or Wooden Iron Drum.
Application: Overhead power transmission
We are China Aluminum Conductors Pvc Insulation Quadruplex Service Drop Cable Acsr Supported manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: acsr supported quadruplex service drop cable, Aerial Bundled Cable, pvc insulation quadplex aerial cable, pvc insulation quadruplex service drop cable
