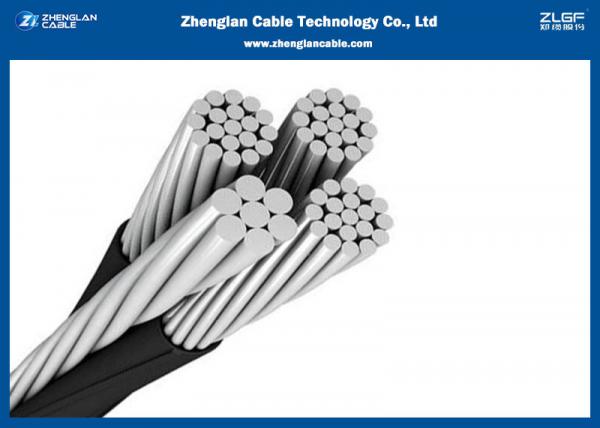

Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable LV overhead insulated cable AAC/XLPE Phase Cable AAAC Neutral image

Get a Quote Email to us

Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable LV overhead insulated cable AAC/XLPE Phase Cable AAAC Neutral

Overhead line is a line which is erected by tower to transmit electric energy at a certain height. For the high-voltage transmission and distribution network, the ground insulation of the overhead line is generally based on air, and the distribution line (except 380V under 10kV) generally uses bare conductor. However, due to the complex urban distribution environment, short-circuit grounding and lightning strike often occur, resulting in the decrease of power supply reliability. So far, the overhead line under 10kV generally uses insulated conductor (that is, the outer layer of conductor is wrapped with insulation layer), which is the so-called insulated overhead cable.

Conductor:

1. Aluminum Wire, 1350-H19 for Electrical Purposes.

2. Aluminum Conductors, Concentric-Lay-Stranded.

3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

4. Concentric-Lay-Stranded 6201-T81 Conductors.

5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Insulation: PVC, XLPE, PE

Standards:

GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.

Application:

0.6/1kv single core XLPE covered aluminum cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire net. It improves the safety and reliance of electrified wire net.

Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable LV overhead insulated cable AAC/XLPE Phase Cable AAAC Neutral ​parameters

Nominal cross sectional area

(mm²)

Wire Minimum no.

Conductor diameter

(mm)

Nominal Insulation thickness

(mm)

Single wire average nominal diameter maximum value(mm) Max. Conductor resistance at 20 ℃(Ω/km)

Min insulation resistance at rated working temper

(MΩ*km

Single wire

tensile strength

(N)

Aluminum Aluminum alloy 70℃ 90℃ Aluminum Aluminum alloy
10 6 3.8 1.0 6.5 3.08 3.574 0.0067 0.67 1650 2514
16 6 3.8 1.2 8.0 1.91 2.217 0.0065 0.65 2517 4022
25 6 6.0 1.2 9.4 1.20 1.393 0.0054 0.54 3762 6284
35 6 7.0 1.4 11.0 0.868 1.007 0.0054 0.54 5177 8800
50 6 8.4 1.4 12.3 0.641 0.744 0.0046 0.46 7011 12569
70 12 10.0 1.4 14.1 0.443 0.514 0.0040 0.40 10354 17596
95 15 11.6 1.6 16.5 0.320 0.371 0.0039 0.39 13727 23880
120 15 13.0 1.6 18.1 0.253 0.294 0.0035 0.35 17339 30164
150 15 14.6 1.8 20.2 0.206 0.239 0.0035 0.35 21033 37706
185 30 16.2 2.0 22.5 0.164 0.190 0.0035 0.35 26732 46503
240 30 18.4 2.2 25.6 0.125 0.145 0.0034 0.34 34679 60329
300 30 20.8 2.2 27.2 0.100 0.116 0.0033 0.33 43349 75411
400 53 23.2 2.2 30.7 0.0778 0.0904 0.0032 0.32 55707 100548

Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable images

Aluminum Conductor XLPE Insulated IEC Aerial Bundle Cable​ packages

About Zhenglan Cable Technology CO., Ltd.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
