Aluminum Conductor XLPE Insulated ABC Cable Aerial Bundle Cable

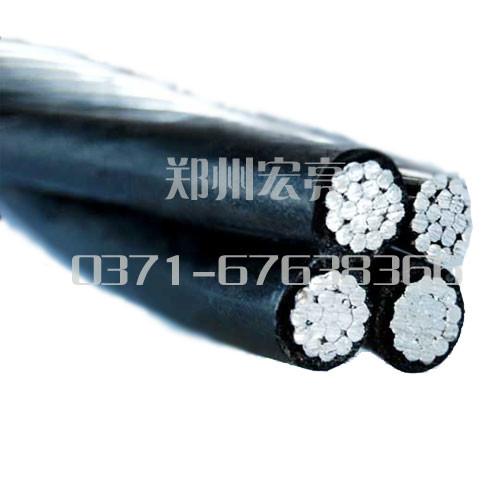

Aluminum Conductor XLPE Insulated ABC Cable Aerial Bundle Cable image
Brand Name :
Sanwu
Model Number :
ABC cable
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
0.1-5USD per meter
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
wooden drums
Conductor material :
Aluminum
Application :
Overhead,Construction,Transmit power on the aerial line
Type :
Low Voltage
Insulation material :
XLPE
Standard :
GB/T12527,IEC60502,GB/T14049,BS IEC ASTM DIN,ASTM
Product name :
overhead aerial power cable,abc cable
Color :
Black
Rated voltage :
0.6/1KV
Packing :
wooden drum or steel woodren
Cross section :
10-240mm2
Sample :
Provided,free
Aluminum Conductor XLPE Insulated ABC Cable Aerial Bundle Cable
Basic construction
Three power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation (optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
Application
To supply 600/1000 volt aerial service for
temporary service at construction sites,
as a Service Drop (Power pole to service entrance), as a secondary cable (pole to pole) or street lighting. For service at 600volts or lower at a maximum conductor temperature of 75℃ for Polyethylene insulated cables or 90℃ for Cross-Linked (XLPE) insulation.
Standards:
1. B-230 aluminum wire, 1350-h19 for electrical purposes.
2. B-231 aluminum conductors, concentric-lay-stranded.
3. B-232 aluminum conductors, concentric-lay-stranded, coated steel reinforced (ACSR).
4.B-399 concentric-lay stranded 6201-t81 aluminum alloy conductors.
5.B-498 zinc-coated steel core wire for aluminum conductors, steel reinforced (ACSR).
6. Duplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
ABC Cable with AAC message core
|
SPEC mm2 |
Conductor structure |
Insulation Material |
Insulation Thickness (mm) |
Approx overall diameter (mm) |
Approx weight (kg/km) |
|
| Phase (compacted Al) |
Neutral (alloy) |
|||||
| No./mm | No./mm | |||||
| 1*16+1*16 | 7/1.72 | 7/1.72 |
XLPE
(HDPE) |
1.2 | 12.5 | 110.1 |
| 1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | |
| 1*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 | |
| 1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | |
| 1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | |
| 1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | |
| 2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | |
| 2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | |
| 2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | |
| 2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | |
| 2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | |
| 2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | |
| 3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | |
| 3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | |
| 3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | |
| 3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | |
| 3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | |
| 3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | |
We are China Aluminum Conductor XLPE Insulated ABC Cable Aerial Bundle Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
