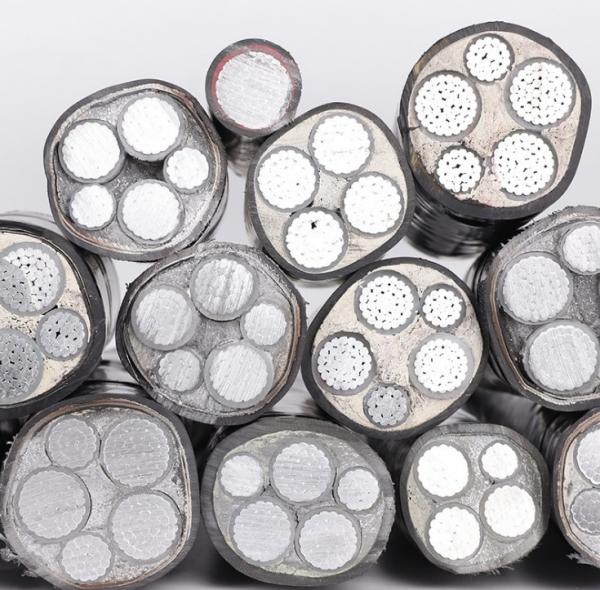

Aluminum Conductor Cable PVC Jacket NA2XRY Low Voltage Armored Cable
Aluminum Conductor Cable PVC Jacket NA2XRY Low Voltage Armored Cable image
Brand Name :
Nuoxing
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 1-100
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
Low Voltage Armored Cable
Conductor :
Aluminum
Insulation material :
XLPE
Application :
Electricity Supply
Type :
Low Voltage
Jacket :
PVC
Standard :
IEC60502
Cable Mark :
Embossing Content
Aluminum Conductor Cable PVC Jacket NA2XRY Low Voltage Armored Cable
Parameter:
Product model: YJLV
Rated voltage: 0.6/1KV
Executive standard: GB/T 12706.1-2008
Laying temperature: the laying temperature of the cable is not less than 0℃
Working temperature: The long-term allowable maximum working temperature of the cable conductor is 90℃
Bending radius: Recommended minimum bending radius: single-core cable bending radius does not exceed 20D, multi-core cable bending radius does not exceed 15D
Product features: This product has a certain ability to prevent or delay the occurrence or spread of flames. It has a wide range of raw materials for production, low prices, and easy processing and manufacturing.
Scope of application: laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and fixed purpose occasions that cannot withstand external mechanical forces.
Construction:
Single core
1. Conductor: copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Inner sheath: Polyvinyl chloride PVC
4. Armouring: non-magnetic steel wire
5. Tape: non-hygroscopic material
6. Outer sheath: PVC
1. Conductor: copper or aluminum, Type 1: solid conductor, or Type 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: non-hygroscopic material
4. Tape: non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armouring: mild steel wire
7. Tape: non-hygroscopic material
8. Outer sheath: PVC
Specificaiton:
| Product name | Low Voltage Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
Quality Promise:
1. Strictly implement the quality management system, and the products meet the relevant national standards and customer requirements.
2. Products are packaged and transported in strict accordance with user requirements and regulations to ensure safety and reliability during product loading, unloading and transportation.
3. For the number of meters per lap of the product, the company will pay 10 meters for one meter less.
4. The product implements three guarantees (guarantee quality, quantity, and price), and provide customers with free technical consultation and related technical information.
5. Strict quality control is carried out on the procurement of raw materials, product production process quality control points, semi-finished products, finished products and packaging to ensure excellent product quality and timely delivery of delivery dates.
We are China Aluminum Conductor Cable PVC Jacket NA2XRY Low Voltage Armored Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
