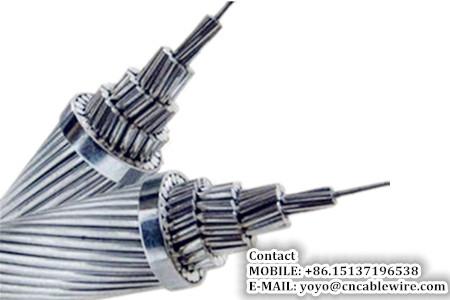

Aluminum Conductor Alloy Reinforced(ACAR)

Introduction of Aluminum Conductor Alloy Reinforced(ACAR)

The use of ACAR is a very interesting option to some bare transmission and distribution lines. The wires of Aluminium Alloy 6201 reinforce mechanically the conductor as core having the same role of steel in ACSR, but with much higher ampacity. Its combination with Aluminium 1350 – H19 wires result in a good and interesting balance of mechanical strength and electrical performance.

Application of Aluminum Conductor Alloy Reinforced(ACAR)

ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics. As comparison with ACSR of same weight, ACAR can offers higher ampacity and mechanical strength.

Feature of Aluminum Conductor Alloy Reinforced(ACAR)

Aluminum Conductor Alloy Reinforced (ACAR)

cable is an excellent conductor choice where current

carrying capacity, higher strength and a lower conductor

weight are critical to the line design.

Construction of Aluminum Conductor Alloy Reinforced(ACAR)

Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design. In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.

Package of Aluminum Conductor Alloy Reinforced(ACAR)

In wooden drums, steel drums or steel-wooden drums.

Introduction of our company

Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable,House Electric Wire, Insulated Overhead Cable,Aluminium Conductor Steel Reinforced, PVC Control Cables,XLPE Power Cables,BV Electric Wires,Nylon Sheathed Cable,Buried Cable,High Voltage Cable,House Electric Wire,Single Core Flexible Copper Cable,Civil Wire And Cable etc. series of wire and cable products, sincerely welcome everyone to visit.
