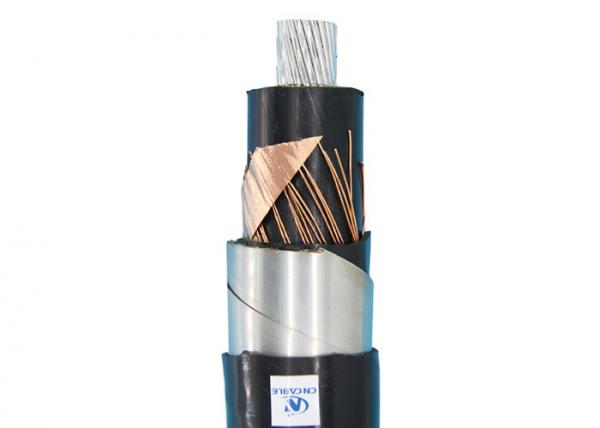

Aluminum 24kv XLPE Insulation Flexible Armored Cable
Aluminum 24kv XLPE Insulation Flexible Armored Cable image
Model Number :MV CABLE
Certification :IEC
Place of Origin :Henan
MOQ :1000meters
Payment Terms :L/C, T/T
Delivery Time :20 days
Packaging Details :wooden drum. iron-wooden drum
Conductor :Aluminum Conductor
Insulation :XLPE
Shield :Copper wire
amour :Alumium tape amoured
Application :Underground
Voltage :24kv
24KV (12/20KV) Single Core Copper Wire Shielded Aluminum Tape Armored Aluminum Underground Cable
APPLICATION:TThe cable is used for public power distribution network 1~35KV.
CONSTRUCTION
Conductor
Insulation
Cores
Amour
Sheath
CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
Sheath Colour
Why is CN CABLE?
| 24KV (12/20KV) Single Core , Aluminum Underground Cable | ||||
| Size | Insulation thickness | Outer Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | mm | mm | kg/km |
| 150 | 5.5 | 2 | 33.2 | 1107 |
| 185 | 5.5 | 2 | 35 | 1253 |
| 240 | 5.5 | 2.1 | 37.6 | 1486 |
| 300 | 5.5 | 2.2 | 40 | 1728 |
| 400 | 5.5 | 2.3 | 43 | 2062 |
| 500 | 5.5 | 2.4 | 46.2 | 2432 |
| 630 | 5.5 | 2.5 | 50 | 2903 |
We are China Aluminum 24kv XLPE Insulation Flexible Armored Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 24kv Flexible Armored Cable, mv power cable, XLPE Insulation Flexible Armored CableSimilar Or Related
