All Aluminum Conductor Steel Reinforced ACSR MOOSE Conductor 4 Core ACSR AS

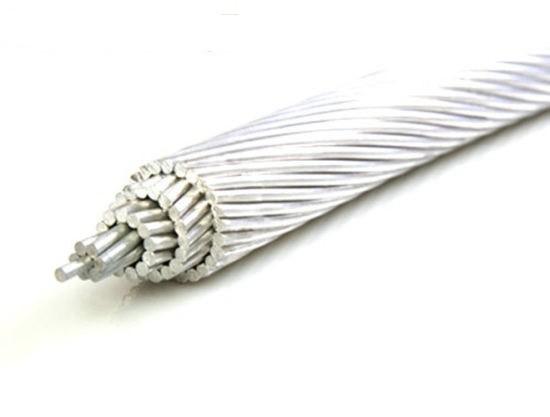

All Aluminum Conductor Steel Reinforced ACSR MOOSE Conductor 4 Core ACSR AS image
Brand Name :
Sanwu
Model Number :
AACSR
Certification :
TUV
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiate
Supply Ability :
200 tons per day
Packaging Details :
Non returnable wooden / steel reels
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
1-15days
Materials :
1350 Alloy
Application :
Cable construction
Type :
LV
Rates :
0.6/1kv
Standard :
IEC
Conductor :
ACSR conductor
Sample :
Free
Core :
Single/as per your request
Color :
Silvery White
Service :
OEM & ODM service is provided
All Aluminum Conductor Steel Reinforced ACSR MOOSE Conductor 4 Core ACSR AS
Professional Manufacturer of AACSR Conductors Cable in China is concentrically stranded conductor with one or more layers of aluminum alloy wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. AACSR conductors are also suitable for use in all practical transmission towers, and other structures. Application ranges from extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises as like as ACSR.
AACSR (Aluminum Alloy Conductor Steel Reinforced) has also a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel cores enable higher tensions, less sag, and longer spans than any alternative as like as ACSR.
| Code Number | Steel ratio | Area | Number of wires | Wire diam | Diameter | Linear mass | Rated strength | D.C. resistance | |||||
| Alum, | Steel | Total | Al | St. | Alum. | Steel | Core | Cond. | |||||
| % | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | Ohm/km | |||
| 16 | 17 | 18.6 | 3.1 | 21.7 | 6 | 1 | 1.99 | 1.99 | 1.99 | 5.96 | 75.1 | 9.67 | 1.7934 |
| 25 | 17 | 29 | 4.84 | 33.9 | 6 | 1 | 2.48 | 2.48 | 2.48 | 7.45 | 117.3 | 14.96 | 0.1478 |
| 40 | 17 | 46.5 | 7.75 | 54.2 | 6 | 1 | 3.14 | 3.14 | 3.14 | 9.42 | 187.7 | 23.63 | 0.7174 |
| 63 | 17 | 73.2 | 12.2 | 85.4 | 6 | 1 | 3.94 | 3.94 | 3.94 | 11.8 | 295.6 | 36.48 | 0.4555 |
| 100 | 6 | 116 | 6.46 | 123 | 18 | 1 | 2.87 | 2.87 | 2.87 | 14.3 | 369.9 | 45.12 | 0.288 |
| 125 | 6 | 145 | 8.07 | 153 | 18 | 1 | 3.21 | 3.21 | 3.21 | 16.0 | 462.3 | 56. 08 | 0.2304 |
| 125 | 16 | 145 | 23.7 | 169 | 26 | 7 | 2.67 | 2.07 | 6.22 | 16.9 | 585.4 | 74.88 | 0.231 |
| 160 | 6 | 186 | 10.3 | 196 | 18 | 1 | 3.63 | 3.63 | 3.63 | 18.1 | 591.8 | 69.92 | 0.18 |
| 160 | 16 | 186 | 30.3 | 216 | 26 | 7 | 3.02 | 2.35 | 7.04 | 19.1 | 749.4 | 94.94 | 0.1805 |
| 200 | 6 | 232 | 12.9 | 245 | 18 | 1 | 4.05 | 4.05 | 4.05 | 20.3 | 739.8 | 87.4 | 0.144 |
| 200 | 16 | 232 | 37.8 | 270 | 26 | 7 | 3.37 | 2.62 | 7.87 | 21.4 | 936.7 | 118.67 | 0.1444 |
| 250 | 10 | 290 | 28.5 | 319 | 22 | 7 | 4.10 | 2.28 | 6.83 | 23.2 | 1023.2 | 124.02 | 0.1154 |
| 250 | 16 | 290 | 47.3 | 338 | 26 | 7 | 3.77 | 2.93 | 8.80 | 23.9 | 1170.9 | 145.43 | 0.1155 |
| 315 | 7 | 366 | 25.3 | 391 | 45 | 7 | 3.22 | 2.15 | 6.44 | 25.7 | 1207.9 | 148.56 | 0.091 7 |
| 315 | 16 | 366 | 59.6 | 426 | 26 | 7 | 4.23 | 3.29 | 9.88 | 26.8 | 145.3 | 180.86 | 0.0917 |
| 400 | 7 | 465 | 32.1 | 497 | 45 | 7 | 3.63 | 2.42 | 7.25 | 29.0 | 1533.9 | 183.03 | 0.0722 |
| 400 | 13 | 465 | 60.2 | 525 | 54 | 7 | 3.31 | 3.31 | 9.93 | 29.8 | 1754.9 | 217.32 | 0.0723 |
| 450 | 7 | 523 | 36.1 | 559 | 45 | 7 | 3.85 | 2.56 | 7.69 | 30.8 | 1725.6 | 205.91 | 0.0642 |
| 450 | 13 | 523 | 67.8 | 591 | 54 | 7 | 3.51 | 3.51 | 10.50 | 31.6 | 1974.2 | 239.26 | 0.0643 |
| 500 | 7 | 581 | 40.2 | 621 | 45 | 7 | 4.05 | 2.70 | 8.11 | 32.4 | 1917.3 | 228.79 | 0.0578 |
| 500 | 13 | 581 | 75.3 | 656 | 54 | 7 | 3.70 | 3.70 | 11.10 | 33.3 | 2193.6 | 265.84 | 0.0578 |
| 560 | 7 | 651 | 45 | 696 | 45 | 7 | 4.29 | 2.86 | 8.58 | 34.3 | 2147.4 | 256.24 | 0.0516 |
| 560 | 13 | 651 | 82.4 | 733 | 54 | 19 | 3.92 | 2.35 | 11.80 | 35.3 | 2444.0 | 298.92 | 0.0516 |
| 630 | 4 | 732 | 31.6 | 764 | 72 | 7 | 3.60 | 2.40 | 7.20 | 36.0 | 2269.4 | 266.64 | 0.0459 |
| 630 | 13 | 732 | 92.7 | 825 | 54 | 19 | 4.15 | 2.49 | 12.50 | 37.4 | 2749.5 | 336.28 | 0.0459 |
| 710 | 4 | 825 | 35.6 | 861 | 72 | 7 | 3.82 | 2.55 | 7.64 | 38.2 | 2557.6 | 300.5 | 0.0407 |
| 710 | 13 | 825 | 104 | 929 | 54 | 19 | 4.41 | 2.65 | 13.20 | 39.7 | 3098.6 | 378.98 | 0.0407 |
| 800 | 4 | 930 | 40.2 | 970 | 72 | 7 | 4.05 | 2.70 | 8.11 | 40.5 | 2881.8 | 338.59 | 0.0361 |
| 800 | 8 | 930 | 77.5 | 1007 | 84 | 7 | 3.75 | 3.75 | 11.30 | 41.3 | 3175.1 | 378.01 | 0.0362 |
| 900 | 4 | 1046 | 45.2 | 1091 | 72 | 7 | 4.30 | 2.87 | 8.60 | 43.0 | 3242.0 | 380.91 | 0.0321 |
| 900 | 8 | 1046 | 87.1 | 1133 | 84 | 7 | 3.98 | 3.98 | 11.90 | 43.8 | 3572.0 | 425.26 | 0.0322 |
| 1000 | 8 | 1162 | 94.6 | 1257 | 84 | 19 | 4.20 | 2.52 | 12.60 | 46.2 | 3954.1 | 473.86 | 0.0289 |
| 1120 | 8 | 1301 | 106 | 1407 | 84 | 19 | 4.44 | 2.66 | 13.30 | 48.9 | 4428.6 | 530.72 | 0.0258 |
Features
- offers optimal strength for line design.
- improved strength to weight ratio
- ideal for extra long span with heavy load
- excellent resistance to corrosion.
Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
Sanwu cable owns variously advanced equipment and large quantities of high skilled professionals. With complete management system, advanced production process, strict testing procedure and reliable product quality, we have successively got IS09001, IS014001,OHSAS18001,TUV Certificate, CCC(China Compulsory Certification), the national industrial production license and so on.
In terms of quality, It is highly controlled by our company to ensure that all the products we sell meet your requirements and give you reassurance with excellent after-sale service.In terms of service, we are focusing on your need, we concern what you concern and request what you request to provide a more satisfied service.
FAQ:
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
Q:Have you ever supplied cables to our country ?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
