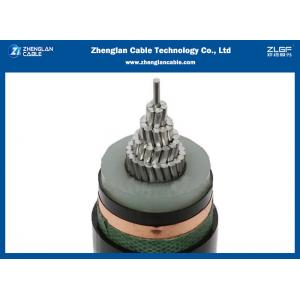

AL / XLPE / CTS / PVC Non – Armored Multi Conductor Power Cable PE Sheathed image

Get a Quote Email to us

AL / XLPE / CTS / PVC Non – Armored Multi Conductor Power Cable PE Sheathed

APPLICATIONS:

18/30kv(36kv) AL/XLPE/CTS/PE single aluminum core xlpe insulated pe sheathed cable are designed for distribution of electrical power. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, and in water as well as for installation on cable trays for industries, switchboards and power stations.

Cable Construction:

Conductors
Hard drawn aluminum conductor stranded type

Conductor Screen
This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.
Insulation
This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.
Insulation Screen
This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.
Metallic Screen
It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Over Sheath
An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE complying with BS 6622 or IEC 60502. Different colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.

Fire Performance on Cable Sheaths available
Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

Armouring type available
In case of armoured cables, the armour is applied helically over inner sheath. For single core cables, it is of aluminium wires and for multicore cables, the armour can be of one among the following options:
a) Galvanized steel wire.
b) Galvanized steel tape.

18/30kv(36kv) AL/XLPE/CTS/PE single aluminum core xlpe insulated pe sheathed cable parameters:

Nominal cross sectional area Nom. Insulation Thickness Copper Tape Thickness Nom.Sheath Thickness Weight
mm² mm mm mm kg/km
25 5.5 0.1 1.8 560
35 5.5 0.1 1.8 620
50 5.5 0.1 1.8 690
70 5.5 0.1 1.8 800
95 5.5 0.1 1.9 940
120 5.5 0.1 2 1050
150 5.5 0.1 2 1190
185 5.5 0.1 2.1 1360
240 5.5 0.1 2.1 1610
300 5.5 0.1 2.2 1860
400 5.5 0.1 2.3 2220
500 5.5 0.1 2.4 2545
630 5.5 0.1 2.5 3100

AL / XLPE / CTS / PVC Non – Armored Multi Conductor Power Cable PE Sheathed pictures:

12/20(24kv) XLPE insulated PVC sheathed one core aluminum cable non-armored Package:
