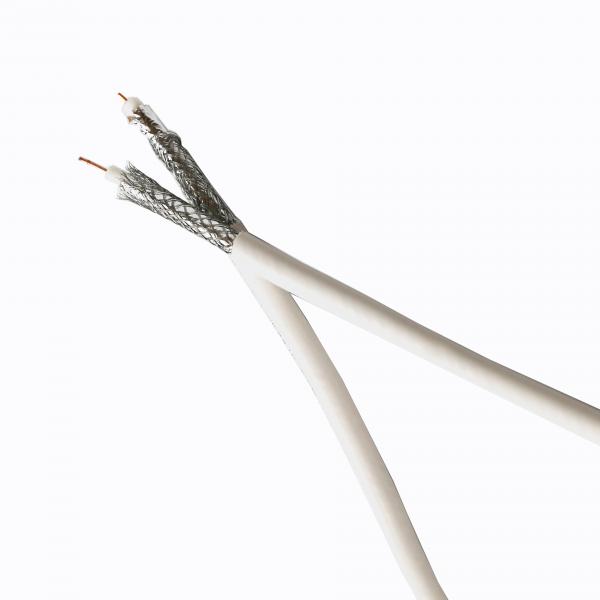

AL Foil Shielded 30V RG6 RG11 PE Insulated Coaxial Cable
AL Foil Shielded 30V RG6 RG11 PE Insulated Coaxial Cable image
Brand Name :
OEM
Certification :
CE/RoHS
Place of Origin :
china
MOQ :
200 meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Conductor :
solid pure copper
insulation :
Physical Foamed Polyethylene
shield :
AL foil
Braiding :
40%-90% braiding TC
Jacket material :
PVC,PE
Color :
Black, White or Customized
Usage :
CATV, TV & CCTV
AL Foil Shielded 30V RG6 RG11 PE Insulated Coaxial Cable
Production Description:
1. Specifications
| Product name | RG6 RG11 RG59 coaxial cable |
| Construciton | bare copper wire, or base on customer's requirements |
| foam PE insulation | |
| AL foil shielded | |
| tinned copper wire braiding | |
| PE or PVC sheath | |
| Color | white, black or customized |
| Application | These coaxial cables are used for satellite receiver, Radio communication, TV, broadcasting and radio frequency transmission signal |
| Voltage | 30V |
2. Product Technical Parameter
| Model |
Conductor (No./mm) |
Speciality impedance |
Braid coverage (%) |
Nominal Attenuation | ||
| 100MHz | 400MHz | 400MHz | ||||
| RG-58 | 0.81 | 50±2 | 40%-95% | 15.1 | 30.8 | 50.2 |
| RG-6 | 1.02 | 75±2 | 40%-95% | 6.4 | 12 | 21.5 |
| RG-59 | 0.81 | 75±2 | 40%-95% | 9.3 | 18 | 27.8 |
| RG-11 | 1.63 | 75±2 | 60%/40% | 4.3 | 8.4 | 14.7 |
3. Feature
- Fast and reliable connection
- Durable and reasonbale design of the structure realizes the high performance
- Wide frequency range
- Fine shields protect the data transmission and reduce the interference, and stable
4. Application
- CATV-community antenna television;
- CCTV-closed-circuit television
- DBS-direct broadcasting satellite.
5. Product Image
Product Advantage
We are China AL Foil Shielded 30V RG6 RG11 PE Insulated Coaxial Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 30V Insulated Coaxial Cable, Coaxial Power Cables, RG11 Insulated Coaxial Cable, RG6 Insulated Coaxial Cable
