Al Conductor Four Core Armoured Cable NA2XBY 240 Sq Mm Aluminium Cable

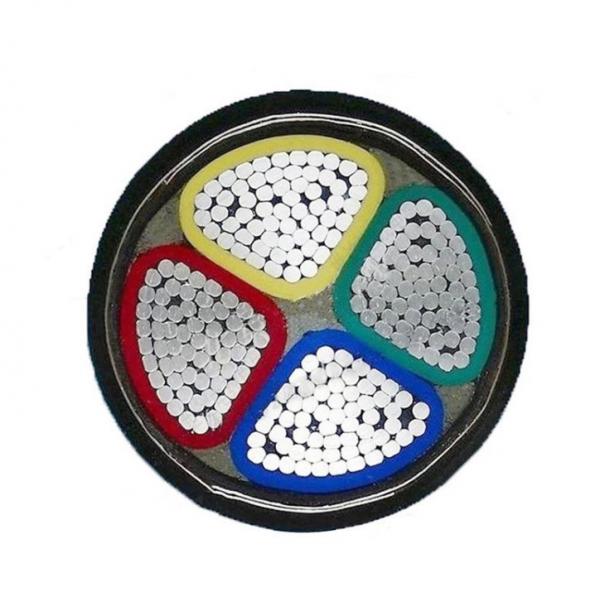

Al Conductor Four Core Armoured Cable NA2XBY 240 Sq Mm Aluminium Cable image
Brand Name :
Nuoxing
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 1-100
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Model Number :
NA2XBY
Product Name :
4 Core Al 240 Mm² Armoured Electrical Power Cable
Conductor :
Al Core
Insulation material :
XLPE
Number of cores :
1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Type :
Low Voltage
Jacket :
PVC
Standard :
IEC60502
Armored :
Steel Tape Armored
4 Core Al Conductor Armored 240 Mm² NA2XBY Armoured Electrical Power Cable
Application:
Armored power cables are used for the power supply of low-voltage installation systems. They are suitable for installation indoors and outdoors, cable ducts, underground, power and switch stations, local energy distribution, industrial plants, and there is no risk of mechanical damage.
Structure:
Conductor: high-purity oxygen-free aluminum core.
· Anti-aging, high conductivity, low loss current, strong load capacity, stable voltage, not hot, and low resistance.
Sheath: PVC sheath
· The outer jacket is made of virgin material, rejecting the waste of secondary recycling, sun protection is not aging, waterproof, moisture-proof, low-temperature and frost-resistant, and high-temperature resistant without burning away from an open flame.
Insulation: cross-linked polyethylene
· The insulation thickness is uniform to ensure low eccentricity of the wire and improve current breakdown resistance
Armored: steel tape armored
· Steel tape armor is safer and more reliable, suitable for underground burying, compressive and squeezing, firm and durable.
Specificaiton:
| Product name | Low Voltage Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
