ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182

Steel core aluminum stranded wire refers to a reinforced conductor with a single or multiple layer of aluminum stranded wire twisted outside the galvanized steel core wire. Mainly used in the power and transmission line industries.

APPLICATION

Steel core aluminum stranded wire has the characteristics of very simple structure, convenient installation, convenient maintenance, low line cost, large transmission capacity, and is also conducive to laying across special geographical conditions such as rivers and valleys. It has good conductivity and sufficient mechanical strength, high tensile strength, and can be enlarged from tower to pole. Therefore, it is widely used in various voltage levels of overhead transmission and distribution lines.

REFERENCE STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

TECHNICAL DATA for ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182 ​ CONSTRUCTION PARAMETERS

• IEC 60189

CODE CALCULATED AREA STRAND O.D. RATED STRENGTH RESISTANCE
DIA. AT 20℃
Al/St. Al. Steel Total Al. Steel
mm2 mm2 mm2 mm2 mm mm mm KN Ω/km
105-AL1/14-ST1A 105 13.6 134.8 6/4.72 7/1.57 14.2 32.65 0.2733

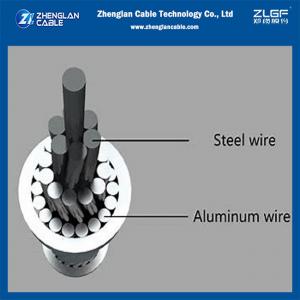

ACSR wire strand conductor Dog 100mm2(105/13.6mm2) (st/6/4.72mm, 7/1.57mm) EN50182 ​ drawing
