Acsr Overhead Line Bare Aluminum Cable Conductor En50182 IEC61089

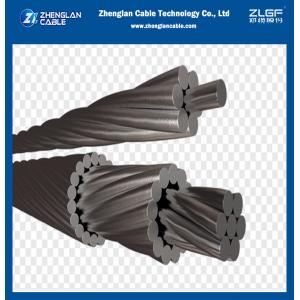

Acsr Overhead Line Bare Aluminum Cable Conductor En50182 IEC61089 image
Best Price Acsr Overhead Line Conductor Bare Aluminum Cable
Application:
Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
Electrical properties:
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm | |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
|
linear Expansivity |
Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
Service conditions:
| Ambient Temperature | -5°C – 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 – 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
Features:
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
PARAMETERS
| Code | Gage AWG or MCM |
Nominal Cross Section (mm²) |
Threading: N° of wires x Nominal Diameter (mm) |
Nominal External Diameter (mm) |
Nominal Net Weight (kg/km) |
Load Before Rupture (kN) |
Current Carryng Capacity |
Maximum Electrical Resistance 20ºC (Ohm/km) |
||||||
| Aluminun | Total | Aluminun | Steel | Aluminun | Steel | Total | ||||||||
| Turkey | 6 | 1,330 | 1,552 | 6×1,68 | 1×1,68 | 504 | 365 | 172 | 537 | 528 | 95 | 215,699 | ||
| Thrush | 5 | 1,677 | 1,957 | 6×1,89 | 1×1,89 | 566 | 460 | 218 | 678 | 671 | 115 | 171,067 | ||
| Swan | 4 | 2,115 | 2,471 | 6×2,12 | 1×2,12 | 636 | 581 | 275 | 856 | 839 | 130 | 135,640 | ||
| Swanate | 4 | 2,115 | 2,647 | 7×1,96 | 1×2,61 | 653 | 580 | 416 | 996 | 1,052 | 130 | 135,640 | ||
| Swallow | 3 | 2,667 | 3,112 | 6×2,38 | 1×2,38 | 714 | 732 | 346 | 1,078 | 1,022 | 150 | 107,566 | ||
| Sparrow | 2 | 3,359 | 3,919 | 6×2,67 | 1×2,67 | 801 | 922 | 436 | 1,358 | 1,268 | 175 | 85,406 | ||
| Sparete | 2 | 3,359 | 4,209 | 7×2,47 | 1×3,30 | 824 | 920 | 665 | 1,585 | 1,613 | 175 | 85,406 | ||
| Robin | 1 | 4,241 | 4,948 | 6×3,00 | 1×3,00 | 900 | 1,164 | 550 | 1,714 | 1,581 | 200 | 67,644 | ||
| Raven | 1/0 | 5,352 | 6,244 | 6×3,37 | 1×3,37 | 1,011 | 1,468 | 694 | 2,162 | 1,935 | 230 | 53,602 | ||
| Quail | 2/0 | 6,733 | 7,855 | 6×3,78 | 1×3,78 | 1,134 | 1,847 | 873 | 2,720 | 2,359 | 265 | 42,608 | ||
| Pigeon | 3/0 | 8,512 | 9,930 | 6×4,25 | 1×4,25 | 1,275 | 2,335 | 1,103 | 3,438 | 2,941 | 310 | 33,703 | ||
| Penguin | 4/0 | 10,720 | 1,251 | 6×4,77 | 1×4,77 | 1,431 | 2,941 | 1,393 | 4,334 | 3,709 | 350 | 26,761 | ||
| Waxwing | 2,668 | 13,519 | 1,425 | 18×3,09 | 1×3,09 | 1,545 | 3,722 | 584 | 4,306 | 3,027 | 430 | 21,325 | ||
| Partridge | 2,668 | 13,519 | 1,569 | 26×2,57 | 7×2,00 | 1,628 | 3,738 | 1,718 | 5,456 | 5,025 | 440 | 21,430 | ||
Pictures:
Why choose us
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Registered capital of $30 million and factory covers an area of 60,000㎡
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
We are China Acsr Overhead Line Bare Aluminum Cable Conductor En50182 IEC61089 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
