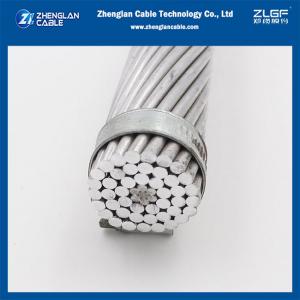

ACSR CAA Bare Aluminum Conductor IEC61089 Galvanized Steel image

Get a Quote Email to us

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor

Application:

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor Electrical properties:

density@20ºC Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
resistivity@20°C Aluminium: Should not exceed 0.028264

linear Expansivity

Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)

Service conditions:

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 – 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor other features:

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor CONSTRUCTION PARAMETERS

Code Gage
AWG
or MCM
Nominal Cross
Section
(mm²)
Threading:
of wires x
Nominal
Diameter
(mm)
Nominal
External
Diameter
(mm)
Nominal Net Weight
(kg/km)
Load
Before
Rupture
(kN)
Current
Carryng
Capacity
Maximum
Electrical
Resistance
20ºC
(Ohm/km)
Aluminun Total Aluminun Steel Aluminun Steel Total
Turkey 6 1,330 1,552 6×1,68 1×1,68 504 365 172 537 528 95 215,699
Thrush 5 1,677 1,957 6×1,89 1×1,89 566 460 218 678 671 115 171,067
Swan 4 2,115 2,471 6×2,12 1×2,12 636 581 275 856 839 130 135,640
Swanate 4 2,115 2,647 7×1,96 1×2,61 653 580 416 996 1,052 130 135,640
Swallow 3 2,667 3,112 6×2,38 1×2,38 714 732 346 1,078 1,022 150 107,566
Sparrow 2 3,359 3,919 6×2,67 1×2,67 801 922 436 1,358 1,268 175 85,406
Sparete 2 3,359 4,209 7×2,47 1×3,30 824 920 665 1,585 1,613 175 85,406
Robin 1 4,241 4,948 6×3,00 1×3,00 900 1,164 550 1,714 1,581 200 67,644
Raven 1/0 5,352 6,244 6×3,37 1×3,37 1,011 1,468 694 2,162 1,935 230 53,602
Quail 2/0 6,733 7,855 6×3,78 1×3,78 1,134 1,847 873 2,720 2,359 265 42,608
Pigeon 3/0 8,512 9,930 6×4,25 1×4,25 1,275 2,335 1,103 3,438 2,941 310 33,703
Penguin 4/0 10,720 1,251 6×4,77 1×4,77 1,431 2,941 1,393 4,334 3,709 350 26,761
Waxwing 2,668 13,519 1,425 18×3,09 1×3,09 1,545 3,722 584 4,306 3,027 430 21,325
Partridge 2,668 13,519 1,569 26×2,57 7×2,00 1,628 3,738 1,718 5,456 5,025 440 21,430

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor electrical physical pictures:
