ACSR Aluminum Conductor Steel Reinforced

What’s the ACSR Conductor?

ACSR is a high-capacity stranded conductor which is mainly used for overhead power lines.
The term ACSR stands for “Aluminium Conductor Steel Reinforced is a stranded conductor including a number of aluminum wire layers on stimulated steel wire core. Here the steel wire core is a single wire that depends on the size. These are available in different galvanizations like class A, B & C for protecting the corrosion.
The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application.
ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.
JYTOP manufacture and supply ACSR on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.

CONSTRUCTION

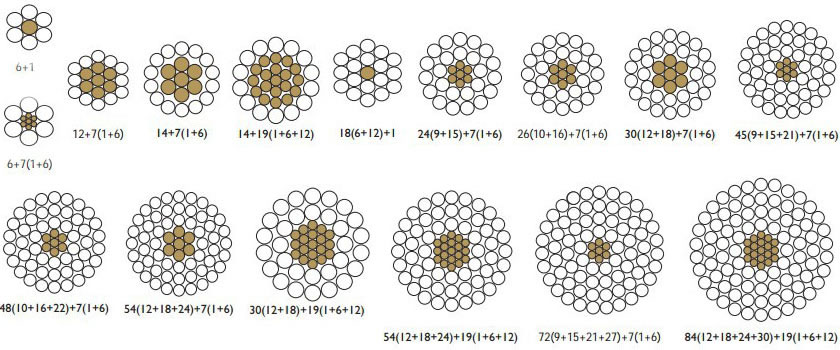

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.

ADDITIONAL STANDARDS

ASTM B-232: Concentric Lay Aluminum Conductors
ASTM B-230: Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR

ACSR Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding ACSR Conductor chart,ACSR Conductor sizes,ACSR Conductor full form,ACSR Conductor ampacity,ACSR Conductor diameter and much, much more.

ACSR manufactured by Galaxy Electric meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

ACSR Conductor ASTM-B232 Standard

Show entries

Code Word	Size (AWG or KCMIL)	Stranding (Al/Stl)	Diameter (inches) AL	Diameter (inches) Steel	Diameter (inches) Total	Weight Per 1000ft (lbs.) AL	Weight Per 1000ft (lbs.) Steel	Weight Per 1000ft (lbs.) Total	Rated Strength (lbs.)	Resistance OHMS/1000ft. DC @ 20°C	Resistance OHMS/1000ft. AC @ 75°C	Allowable Ampacity+ (Amps)
Turkey	6	6/1	.0661	.0661	.1980	24.5	11.6	36.1	1190	.641	.806	105
Swan	4	6/1	.0834	.0834	.2500	39.0	18.4	57.4	1860	.403	.515	140
Swanate	4	7/1	.0772	.1030	.2570	39.0	28.0	67.0	2360	.399	.519	140
Sparrow	2	6/1	.1052	.1052	.3160	62.0	29.3	91.3	2850	.254	.332	184
Sparate	2	7/1	.0974	.1298	.3250	62.0	44.7	106.7	3460	.251	.338	184
Robin	1	6/1	.1181	.1181	.3550	78.2	37.0	115.2	3550	.201	.268	212
Raven	1/0	6/1	.1327	.1327	.3980	98.7	46.6	145.3	4380	.159	.217	242
Quail	2/0	6/1	.1489	.1489	.4470	124.3	58.8	183.1	5310	.126	.176	276
Pigeon	3/0	6/1	.1672	.1672	.5020	156.7	74.1	230.8	6620	.100	.144	315
Penguin	4/0	6/1	.1878	.1878	.5630	197.7	93.4	291.1	8350	.0795	.119	357

Showing 1 to 10 of 78 entries

Previous Next

ACSR Conductor BS215 Standard

Show entries

Code name	Nominal aluminum area (mm2)	Stranding structure (Al. No.)	Stranding structure (Al. Dia.)mm	Stranding structure (St. No.)	Stranding structure (St. Dia)mm	Sectional area of aluminum(mm2)	Total sectional area(mm2)	Overall diameter (mm2)	Wight Total(kg/km )	Calculated breaking load (daN)	Calculate D.C resistance at 20 ℃	Current Rating(A)
Mole	10	6	1.5	1	1.5	10.62	12.39	4.5	43	414	2.706	67
Squirrel	20	6	2.11	1	2.11	20.94	24.43	6.33	85	788	1.368	109
Gopher	25	6	2.36	1	2.36	26.24	30.62	7.08	106	961	1.093	126
Weasel	30	6	2.59	1	2.59	31.61	36.88	7.77	128	1146	0.9077	134
Fox	35	6	2.79	1	2.79	36.66	42.77	8.37	149	1320	0.7822	147
Ferret	40	6	3	1	3	42.41	49.48	9	172	1520	0.6766	161
Rabbit	50	6	3.35	1	3.35	52.88	61.7	10.05	214	1835	0.5426	185
Mink	60	6	3.66	1	3.66	63.18	73.71	10.98	255	2180	0.4545	174
Skunk	60	12	2.59	7	2.59	63.27	100.3	12.95	465	5300	0.4567	246
Beaver	70	6	3.99	1	3.99	74.82	87.29	11.97	302	2570	0.3825	193

Showing 1 to 10 of 40 entries

Previous Next

ACSR Conductor IEC61089-A1S3A Standard

Show entries

Code number	Area			Number of wires		Wire dia.		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Alum.	Steel	Total			Alum.	Steel	Core	Con.
	mm 2	mm 2	mm 2	Al	St	mm	mm	mm	mm	kg/km	kN	Ω/km
16	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53	64.6	6.83	1.7934
25	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91	100.9	10.25	1.1478
40	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	16.2	0.7174
63	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	24.15	0.4555
100	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	38.33	0.2869
125	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	31.04	0.2304
125	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	51.39	0.231
160	160	8.89	169	18	1	3.36	3.36	3.36	16.8	509.3	38.67	0.18

Showing 1 to 10 of 39 entries

Previous Next

ACSR Conductor DIN 48204 Standard

Show entries

Area				Standing and wire diameter		Overall diameter		Nominal breaking load	Maximum resistance at 20°C	Current Rating
Nominal.	Actual						Total.
Al/Steel--	Al	Steel	Total	Aluminum	Steel
	mm 2	mm 2	mm 2	mm	mm	mm	kg/km	daN	Ω/km	A
16/2.5	15	2.5	17.8	6/1.80	1/1.80	5.4	62	595	1.878	105
25/4.0	23.8	4	27.8	6/2.25	1/2.5	6.8	97	920	1.2002	140
35/6.0	34.3	5.7	40	6/2.70	1/2.70	8.1	140	1265	0.8352	170
44/32.0	44	31.7	75.7	14/2.00	7/2.40	11.2	372	4500	0.6573	220
50/8.0	48.3	8	56.3	6/3.20	1/3.20	9.6	196	1710	0.5946	210
50/30	51.2	29.8	81	12/2.33	7/2.33	11.7	378	4380	0.5643	223
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	284	2680	0.413	290

Showing 1 to 10 of 40 entries

Previous Next

ACSR Conductor Canadian Standard

Show entries

Code name	Total Area			Stranding and diameter		Approximate overall diameter	Linear mass			Rated tensile strength	Maximum D.C. Resistance at 20 ℃ Ω/km	Cuttent Rating
	Aluminum	Steel	Total	Aluminum	Steel		Aluminum	Steel	Total.
	mm 2	mm 2	mm 2	mm	mm	mm	kg/km	kg/km	kg/km	daN		A
wren	8.34	1.39	9.73	6/1.33	1/1.33	3.99	22.9	10.8	33.7	308	3.43035	63
Warbler	10.59	1.34	11.93	6/1.5	1/1.50	4.5	29	14	43	420	2.7139	67
Turkey	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	524	2.1586	78
Swan	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	832	1.3557	105
Swante	21.16	5.35	26.5	7/1.96	1/2.61	6.53	58	42	100	1053	1.3557	104
Swallow	26.69	4.45	31.14	6/2.38	1/2.38	7.14	73.3	34.6	107.9	1021	1.07124	126
Sparrow	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	1270	0.8535	139
Sparate	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	1611	0.8535	138

Showing 1 to 10 of 91 entries

Previous Next

ACSR Conductor GB1179 Standard

Show entries

Nominal Area Aluminum/Steel mm 2	Stranding No./Dia. No./mm		Calculated Area mm 2			Overall Diameter mm	D.C. Resistance Ω/km	Calculated Breaking Load N	Calculated Weight kg/km	Continuous Carrying Capacity(A)
	Aluminum	Steel	Aluminum	Steel	Total					70 ℃	80 ℃	90 ℃
10/2	6/1.50	1/1.50	10.6	1.77	12.37	4.5	2.706	4120	42.9	66	78	87
16/3	6/1.85	1/1.85	16.13	2.69	18.82	5.55	1.779	6130	65.2	85	100	113
25/4	6/2.32	1/2.32	25.36	4.23	29.59	6.96	1.131	9290	102.6	111	131	149
35/6	6/2.72	1/2.72	34.86	5.81	40.67	8.16	0.823	12630	141	134	158	180
50/8	6/3.20	1/3. 20	48.25	8.04	56.29	9.6	0.5946	16870	195.1	161	191	218
50/30	12/2.32	7/2.32	50.73	29.59	80.32	11.6	0.5692	42620	372	166	195	218
70/10	6/3.80	1/3.80	68.05	11.34	79.39	11.4	0.4217	23390	275.2	194	232	266
70/40	12/2.72	7/2.72	69.73	40.67	110.4	13.6	0.4141	58300	511.3	196	230	257
95/15	26/2.15	7/1.67	94.39	15.33	109.72	13.61	0.3058	35000	380.8	252	306	351

Showing 1 to 10 of 55 entries

Previous Next

Few More thing you should know

What’s the advantages of ACSR Conductor?

Now, aluminium conductor steel reinforced cable is very popular, and it is used in the many cases. From the popularity, we can know it must have the absolute advantages.
From the product performance, conductor acsr improves the high-temperature performance. Because the steel has strong strength, it can bear more weight. So compared with other conductors, we can produce aluminium conductor steel reinforced of larger section. It can increase the carrying capacity. Meanwhile, the aluminum conductor steel reinforced is high heat resistance and high conductivity. It can not only increase the security performance of running equipment, but also reduce the power loss. If you use the aluminium conductor steel reinforced cable, it can reduce your cost and increase the effectiveness.
From the application, the acsr aluminum conductor steel reinforced widely used in curious voltage levels overhead transmission and distribution lines. Especially some are have rives and valley, the steel reinforced cable can overcome these problem. If your case are in these area, you can consider aluminium conductor steel reinforced cable. For more acsr conductor specifications, please contact us, we will send you the acsr conductor size and best acsr conductor price.

Where can you get the high-quality conductor acsr with low price?

In the market of aluminium conductor steel reinforced, there are many acsr manufacturers. For example, the acsr conductor manufacturer in india, acsr conductor manufacturer from China. In the acsr conductor price list, China has the superiority. China has the cheapest aluminum in the world,, and aluminum is the main material of aluminum conductor steel reinforced. Galaxy Electric Cable Group is located in Henan province. Henan owns the cheap aluminum, so we can provide the low acsr conductor price.
Expect price, I think the quality is also an important index when you buy aluminium conductor steel reinforced. Huadong Cable insist the quality first and service first. Before acsr aluminum conductor steel reinforced leave the factory, we will test strictly from various aspects. We can do what we promise, and we can accept your test or any third party test. Don’t hesitate, send the inquiry, you will get the best quotation with 12 hours.

How to choose ACSR Conductor?

As we all know, Cable ACSR has different standards and types, so the demands of customers are different. Every ACSR wire has a code name or number. When you purchase the conductor ACSR, you just need speak the the code, the seller will know what you want. If you don’t know the exact code name, it doesn’t matter. As long as you know ACSR conductor specifications, as professional aac manufacturers, Galaxy Electric Cable Group can customize for you.
