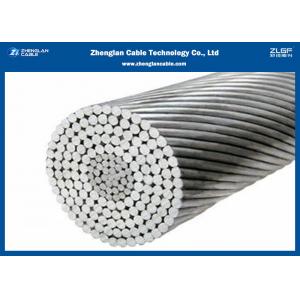

ACSR 450mm2 IEC60189 Aluminum Conductor Steel Reinforced Conductor image

Get a Quote Email to us

ACSR 450mm2 IEC60189 Overhead Ground Wire Aluminum Conductor Steel Reinforced Bare Conductor

APPLICATION

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

CONSTRUCTION

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

ACSR 450mm2 IEC60189 Overhead Ground Wire Aluminum Conductor Steel Reinforced Bare Conductor TECHNICAL DATA

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

ACSR 450mm2 IEC60189 Aluminum Conductor Steel Reinforced Conductor CONSTRUCTION PARAMETERS

• IEC 60189

IEC 60189 A1/S1A
Code Nominal Area Stranding Overall Diameter Weight Breaking Load Electrical Resistance @20°
AL STEEL TOTAL AL STEEL
mm2 mm2 mm2 No.xmm No.xmm mm Kg/Km KN Ω/Km
16 16 2.56 18.7 6/1.84 1/1.84 5.53 64.6 6.08 1.7934
25 25 4.17 29.2 6/2.30 1/2.30 6.9 100.9 9.13 1.1478
40 40 6.67 46.7 6/2.91 1/2.91 8.73 161.5 14.4 0.7174
63 63 10.5 73.5 6/3.66 1/3.66 10.98 254.4 21.63 0.4555
100 100 16.7 117 6/4.61 1/4.61 13.83 403.8 34.33 0.2869
125 125 6.94 132 18/2.97 1/2.97 14.85 397.9 29.17 0.2304
125 125 20.4 145 26/2.47 7/1.92 15.64 503.9 45.69 0.231
160 160 8.89 169 18/3.36 1/3.36 16.8 509.3 36.18 0.18
160 160 26.1 186 26/2.80 7/2.18 17.74 644.9 57.69 0.1805
200 200 11.1 211 18/3.76 1/3.76 18.8 636.7 44.22 0.144
200 200 32.6 233 26/3.13 7/2.43 19.81 806.2 70.13 0.1444
250 250 24.6 275 22/3.80 7/2.11 21.53 880.6 68.72 0.1154
250 250 40.7 291 26/3.50 7/2.72 22.16 1007.7 87.67 0.1155
315 315 21.8 337 45/2.99 7/1.99 23.91 1039.6 79.03 0.0917
315 315 51.3 366 26/3.93 7/3.05 24.87 1269.7 106.83 0.0917
400 400 27.7 428 45/3.36 7/2.24 26.88 1320.1 98.36 0.0722
400 400 51.9 452 54/3.07 7/3.07 27.63 1510.3 123.04 0.0723
450 450 31.1 481 45/3.57 7/2.38 28.56 1485.2 107.47 0.0642
450 450 58.3 508 54/3.26 7/3.26 29.34 1699.1 138.42 0.0643
500 500 34.6 535 45/3.76 7/2.51 30.09 1650.2 119.41 0.0578
500 500 64.8 565 54/3.43 7/3.43 30.87 1887.9 153.8 0.0578
560 560 38.7 599 45/3.98 7/2.65 31.83 1848.2 133.74 0.0516
560* 560 70.9 631 54/3.63 19/2.18 32.68 2103.4 172.59 0.0516
630 630 43.6 674 45/4.22 7/2.81 33.75 2079.2 150.45 0.0459
630* 630 79.8 710 54/3.85 19/2.31 34.65 2366.3 191.77 0.0459
710 710 49.1 759 45/4.48 7/2.99 35.85 2343.2 169.56 0.0407
710* 710 89.9 800 54/4.09 19/2.45 36.79 2666.8 216.12 0.0407
800* 800 34.6 835 72/3.76 7/2.51 37.61 2480.2 167.41 0.0361
800* 800 66.7 867 84/3.48 7/3.48 38.28 2732.7 205.33 0.0362
800* 800 101 901 54/4.34 19/2.61 39.09 3004.9 243.52 0.0362
900* 900 38.9 939 72/3.99 7/2.66 39.9 2790.2 188.33 0.0321
900* 900 75 975 84/3.69 7/3.69 40.59 3074.2 226.5 0.0322
1000* 1000 43.2 1043 72/4.21 7/2.80 42.08 3100.3 209.26 0.0289
