ACS Conductor 20.3% IACS 7 X 7AWG Aluminum Clad Steel Wire

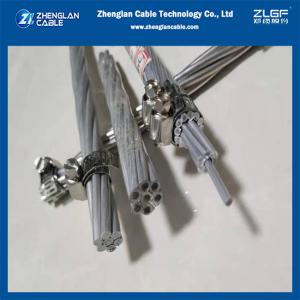

ACS Conductor 20.3% IACS 7 X 7AWG Aluminum Clad Steel Wire image
ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire
ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire is commonly used in long-span transmission line, coastal areas and island. They are also used in other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
In most cases, ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire are used as a guy or " messenger" wire, and static wire in utility classifications, for overhead use.
| Class | 20.3% IACS-A |
| Nominal Density at 20°C (g/cm3) | 6.59 |
| Final Modulus of Elasticity (Gpa) | 162 |
| Coefficient of Linear Exp. (per °C) | 13 x 10-6 |
| Temperature coefficient (per °C) | 0.0036 |
| % Elongation at Fracture on 250mm | 1.5 |
Aluminum clad steel conductor Alumoweld conductor 4AWG(7/2.05mm) 20.3% IACS PARAMETERS
| No./size of strands | Nominal cross sectional area | No. of wires | Diameter | Approx, weight | Rated strength | Max. DC resistance at 20°C | |
| Wire | Conductor | ||||||
| AWG | mm | 3 | mm | mm | kg/km | kN | n/km |
| 7 No. 7 | 73.87 | 7 | 3.67 | 11 | 491.1 | 84.81 | 1.16 |
ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire drawing
