Acs Aluminum Clad Steel Strand Wire For Electric Conductor Overhead Ground Wire
Acs Aluminum Clad Steel Strand Wire For Electric Conductor Overhead Ground Wire image
Brand Name :
Global
Model Number :
GS-191106
Certification :
ISO9001, CE, RoHS, SGS/BV
Place of Origin :
Anhui,China
Conductor Material :
Aluminum Clad Steel
Sheath Material :
Aluminum Clad Steel Wire
Insulation Material :
Bare
Material Shape :
Round Wire
Range of Application :
Acs/ACSR / Aw/Opgw
Different Grades :
Lb14, Lb20, Lb23, Lb27, Lb30, Lb35 ,Lb40
Iacs :
14%, 20.3%, 23%, 27%, 30%, 35% ,40%
luminum clad steel strand wire(ACS)
The conductor is composed by bare hard-drawn, round, aluminum clad steel wires of 14% to 40% IACS conductivity
Application:
It is widely used in aerial electricity transmission,overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line and self-danping conductor line,etc
Standard:
ASTM B416-98, AS1222, IEC61089
Parameters for Before-strand:
| Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire (20.3%) |
||||||||||||
| Nominal Dia | Nominal Density |
Min. Stress at 1.0% Extension |
Min Ultinate Tensile |
Min. Elongation 10 in(250mm) |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight | |||||
| in. | mm | g/cm3 | Mpa | Psi | Mpa | psi | – | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft |
| 0.1098 | 2.79 | 6.59 | 1206 | 175000 | 1344 | 195000 | 1.5 | 0.279 | 1.222 | 4.009 | 139.32 | 93.63 |
| 0.1880 | 4.775 | 4 | 17.908 | 35342 | 1100 | 160000 | 19.70 | 0.239 | 1.443 | 4.735 | 118.01 | 79.31 |
| 0.1819 | 4.620 | 5 | 16.767 | 33090 | 1140 | 165000 | 18.10 | 0.231 | 1.541 | 5.056 | 110.48 | 74.25 |
| 0.1729 | 4.392 | 5 | 15.150 | 29899 | 1170 | 170000 | 17.73 | 0.220 | 1.706 | 5.597 | 99.84 | 67.10 |
| 0.1620 | 4.115 | 6 | 13.296 | 26240 | 1210 | 175000 | 16.00 | 0.206 | 1.943 | 6.375 | 87.61 | 58.88 |
| 0.1549 | 3.934 | 6 | 12.155 | 23989 | 1240 | 180000 | 15.07 | 0.197 | 2.126 | 6.976 | 80.10 | 53.83 |
| 0.1443 | 3,665 | 7 | 10.549 | 20820 | 1280 | 185000 | 13.50 | 0.183 | 2.450 | 8.038 | 69.47 | 46.69 |
| 0.1369 | 3.477 | 7 | 9.495 | 18739 | 1310 | 190000 | 12.44 | 0.174 | 2.722 | 8.931 | 62.57 | 42.05 |
| 0.1285 | 3.264 | 8 | 8.366 | 16510 | 1340 | 195000 | 11.20 | 0.163 | 3.089 | 10.135 | 55.15 | 37.03 |
| 0.1144 | 2.906 | 9 | 6.633 | 13090 | 1340 | 195000 | 8.92 | 0.145 | 3.896 | 12.783 | 43.70 | 29.37 |
| 0.1019 | 2.588 | 10 | 5.260 | 10380 | 1340 | 195000 | 7.07 | 0.129 | 4.912 | 16.116 | 34.66 | 23.29 |
| 0.0907 | 2.304 | 11 | 4.170 | 8230 | 1340 | 195000 | 5.61 | 0.115 | 6.194 | 20.323 | 27.48 | 18.47 |
| 0.0808 | 2.052 | 12 | 3.309 | 6530 | 1340 | 195000 | 4.45 | 0.103 | 7.811 | 25.628 | 21.80 | 14.65 |
Packing:

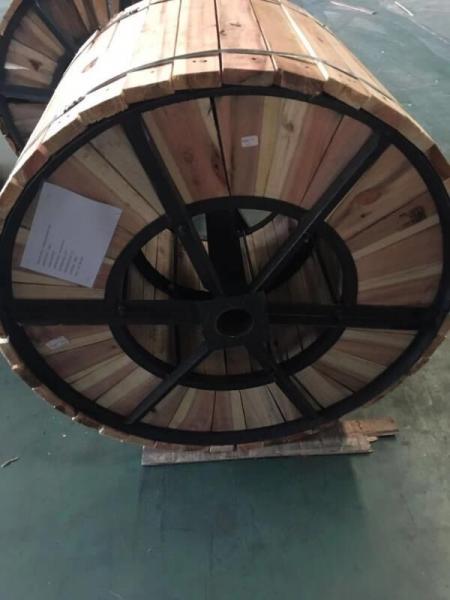

It is packed in Iron-wooden drum/ Wooden drum
We are China Acs Aluminum Clad Steel Strand Wire For Electric Conductor Overhead Ground Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
